Scan code: LN47057 Manufacturer code: PSU500BUILDERBLACK

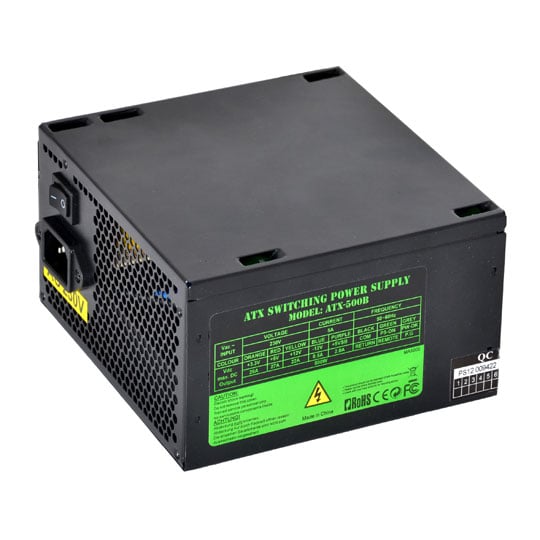

Xclio 500W Builder Black ATX PSU

500W Xclio Builder Black , Fully Wired, Single Rail, 120mm Fan, ATX PSU

Thumbnail 1 : Xclio 500W Builder Black ATX PSU Thumbnail 2 : Xclio 500W Builder Black ATX PSU
Scan code: LN47057 Manufacturer code: PSU500BUILDERBLACK
£17.99
Order now and receive it between 31st Mar and 2nd Apr
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 31st Mar To 2nd Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

500W ATX PSU brings Value and Quality

Builder Black PSUs are certified RoHS compliant and with power factor control-giving you a safe and stable foundation to build your system from. They come with a sleeve bearing 12cm fan that offers a quiet operation but with excellent cooling meaning you are working in a more peaceful environment and the right cooling ensures maximum lifespan of your products. Supplied with all the appropriate cables including 3 SATA providing maximum compatibility with popular CPU's and mainboards.

Features
• Support - Compliant with latest Intel standards ATX 12V, V2.0
• Efficiency > 70%
• MTBF > 50000hrs

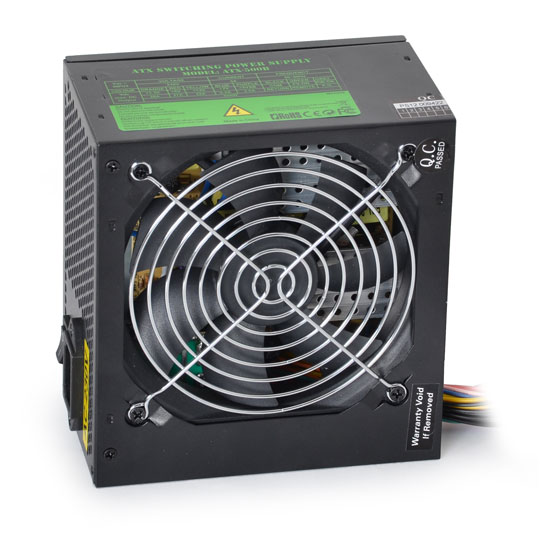

• Cooling System - 120mm sleeve bearing fan
• Protection - Over Voltage Protection (OVP), Under Voltage, Over Power Protection (OPP), Over Temperature Protection (OTP) & Short Circuit Protection (SCP)
Specifications
Size ATX
Edition Builder
Wattage 500 W
80 PLUS Certification Uncertified
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 22 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 22 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 2 x 4-pin Molex
  • 3 x SATA
Dimensions 150 x 83 x 140 mm (WxHxD)
Package Type OEM
Additional Information
Scan Code LN47057
Model Number PSU500BUILDERBLACK
GTIN 5055492430878
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
SCAN
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
500W Xclio Builder Black , Fully Wired, Single Rail, 120mm Fan, ATX PSU is rated 4.0 out of 5 by 19.
Rated 4 out of 5 by from No complaints This power supply works perfectly, with lots of cables. My only complaint is there is no graphics card connectors so I bought a cheap adapter online and it works great!
Date published: 2019-12-11
Rated 5 out of 5 by from Super quick power Well priced, quick delivery and on time, easy change and has an on and off switch which is a bonus, also nice and quiet. Would buy again and recommend to others.
Date published: 2018-07-07
Rated 5 out of 5 by from Good features and easy to install Very efficient and quiet. I have had it a short time but I do not expect any problems
Date published: 2016-08-24
Rated 3 out of 5 by from Affordable power supply Useful for less powerful hungry computers, it is not affected to use with more advanced processors
Date published: 2016-08-04
Rated 5 out of 5 by from Surprised me.... Perfect in a low end system and pretty quiet to. Have bought several now.
Date published: 2016-07-26
Rated 5 out of 5 by from So far so good My entertainment pc`s PSU exploded and i`m not spending more money on it, so this is a perfect sub. I only had it for a month but seem`s to be perfectly fine, for this price can`t complain.
Date published: 2016-06-27
Rated 5 out of 5 by from Quiet Great Value Good PSU, really quiet, good power, and super cheap.
Date published: 2016-05-11
Rated 5 out of 5 by from Good buy (but be careful with your research) and Good service. :) I bought this to replace the PSU in my ageing XP PC and found that I needed to purchase SATA > Molex adaptors to adapt it to that generation. THEN, very annoyingly, I found that I already had a brand new one from many years ago, stored in the garage!! Grrrrr. Of course that didn't NEED the adaptors. Because my old selfbuild is 8yrs old, and becoming nervous because of the failed PSU, I decided that I would build a new system and have gone overboard with a 4th generation i7-4790/ Asus 97P system. So I thought that at least I could save the power supply cost. However, it turns out that 4th generation motherboards have different power connectors on the board which this PSU didn't have....Grrrr again. Even at my ripe old age (should know better) 'you live and learn'.!!! Well, at least you should do! :) The good part of the deal was the service. I've used SCAN since the early days of the MicroMart magazine, when they always advertised on the back pages. Not quite so competitive now but a very successful company with great service.
Date published: 2016-01-07
  • y_2020, m_3, d_28, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_18
  • loc_en_GB, sid_47057, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

will this psu be quiet enough for a living room based media center pc

only required to play stored music from ssd
Asked by: duffleg1
Good Afternoon, Yes, this should be quiet enough. Kind Regards,
Answered by: LukeW
Date published: 2019-11-15
