Scan code: LN100773 Manufacturer code: Core GM-500

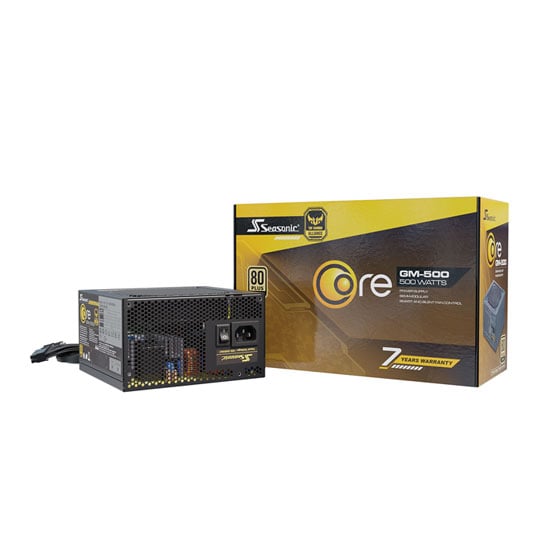

Seasonic Core Gold GM 500 500W Semi Modular 80+ Gold PSU/Power Supply

500W Seasonic Core Gold GM-500 80PLUS Gold, Single Rail, 41A, 120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Seasonic Core Gold GM 500 500W Semi Modular 80+ Gold PSU/Power Supply Thumbnail 2 : Seasonic Core Gold GM 500 500W Semi Modular 80+ Gold PSU/Power Supply Thumbnail 3 : Seasonic Core Gold GM 500 500W Semi Modular 80+ Gold PSU/Power Supply Thumbnail 4 : Seasonic Core Gold GM 500 500W Semi Modular 80+ Gold PSU/Power Supply
Scan code: LN100773 Manufacturer code: Core GM-500
£64.99
Add To Basket
In stock
Order now and receive it between 1st Apr and 3rd Apr
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 1st Apr To 3rd Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Core GM Series

The CORE Series is the brand new series that completes the Seasonic lineup. The 80 PLUS Gold certified CORE Series comes in all three cabling setups, including the fully modular CORE GX, semi-modular CORE GM, and lastly the fixed-cabled CORE GC. The Seasonic Smart and Silent Fan Control automatically adjusts the fan speed according to the temperature inside the power supply. As part of the TUF Gaming Alliance, the CORE Series is the perfect unit to go with your gaming PC.

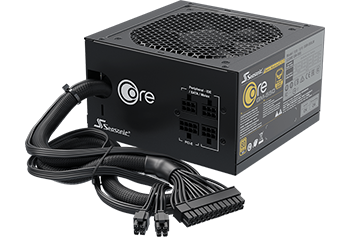

Semi-Modular Cables

Some cables are permanently attached to the power supply (most of the time the 24-pin and the 8-pin ATX power cables) and the rest of the cables can be used to connect the rest of the available components.


Tight Voltage Regulation

Seasonic's advanced design is designed to improve load regulation, reducing voltage swings to ensure smooth and stable operation.

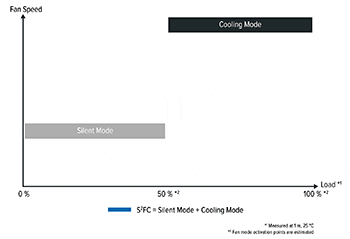

S2FC - Smart and Silent Fan Control

The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.

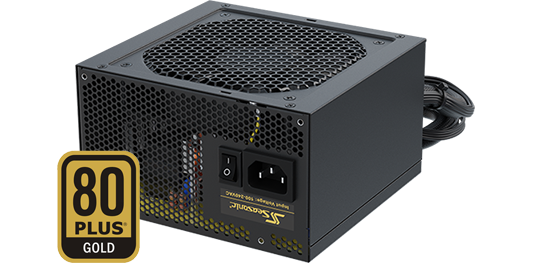

80 PLUS Gold

The highly efficient 80 PLUS Gold certification means it is greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.

Features
• 80 PLUS® Gold certified.
• Semi-modular.
• Tight Voltage Regulation.
• S2FC - Smart and Silent Fan Control.
• DC to DC Converter Design.
• 105 °C Japanese Capacitor.
• 7 years warranty.
Specifications
Size ATX
Edition CORE-GM-500
Wattage 500 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin ATX 12V
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 3 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN100773
Model Number Core GM-500
GTIN 4711173875727
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
