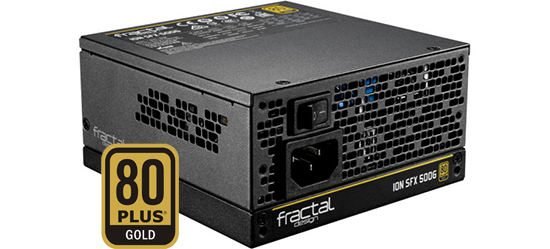

ION SFX-L Gold 500 Watt Power Supply from Fractal Design

ION+ 560W PSU

UTILIZE MODULAR GREATNESS Enjoy a power supply that provides excellent performance in a modular design with the ION Gold by Fractal Design. This impressive power supply unit performs in complete silence and offers great cable flexibility so you can install it into your system with complete ease. Enjoy incredible output quality and industry-leading 80 PLUS® Gold efficiency. Utilize the semi-passive Zero RPM mode which makes your PSU completely silent under light workloads, and with a specially designed 120mm fan with FDB bearings to keep up the silence under more demanding tasks. Easily install your PSU with the UltraFlex cabling which has a high strand count wire and special insulation bends to make twisting cables easier and cable routing a breeze. The ION PSU utilizes premium Japanese 105°C capacitors to provide excellent reliability, and the PSU only takes up 125mm length-wise so you can place it in compact spaces with additional room for your cables. If all this isn't enough, the ION offers a wealth of features to keep your PSU protected, and comes with a generous ten-year warranty to give you support for years and years.

500Watts

80 PLUS® GoldEfficiency

SFXForm Factor

Intricately Designed for Silent Performance

ion silent fan

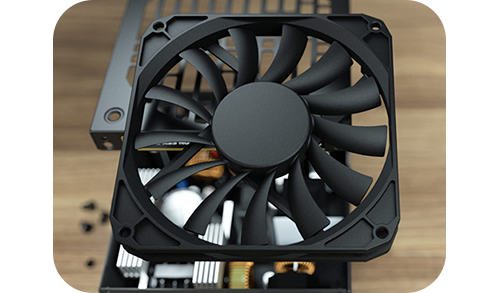

CUSTOM-TAILORED FAN FOR SILENT OPERATION You'll rarely hear a sound from the Ion SFX-L Gold, due to a semi-passive mode that only activates the fan when it's really necessary. Even then, the true FDB bearings will make sure it remains very discrete. The semi-passive Zero RPM mode maintains total silence under light loads, and the custom-tailored 120 mm fan with FDB bearings ensures discrete operation even under heavy use.

The Power of Flexibility

ion wires

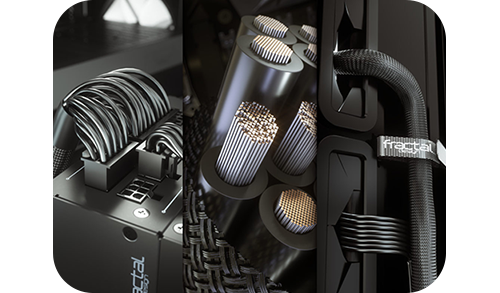

WIRED FOR PERFECTION Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it. Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables. The ION uses specially formulated insulation that increases flexibility without impacting efficiency or current capacity, and the cables flex and flow with ease for near-effortless routing and superior cable management opportunities.

Made for Endless High-Performance

down

Japanese capacitorsPremium Japanese 105°C capacitors provide enhanced reliability and durability.

up

Fully protectedOver Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection.

up

Mounting optionsIncludes SFX-to-ATX mounting bracket.

Specifications
Size SFX-L
Edition ION SFX
Wattage 500 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac)
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 4 x SATA
Dimensions 125 x 63.5 x 125 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN100754
Model Number FD-PSU-ION-SFX-500G-BK-UK
GTIN 7340172702016
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
