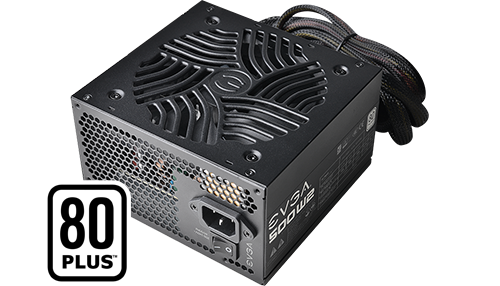

EVGA W2 500W 80 PLUS ATX Fully Wired Power Supply

500W EVGA W2 80PLUS ATX Fully Wired, Single Rail, 40A + 12V, 1x 120mm Sleeve Bearing Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : EVGA W2 500W 80 PLUS ATX Fully Wired Power Supply Thumbnail 2 : EVGA W2 500W 80 PLUS ATX Fully Wired Power Supply Thumbnail 3 : EVGA W2 500W 80 PLUS ATX Fully Wired Power Supply Thumbnail 4 : EVGA W2 500W 80 PLUS ATX Fully Wired Power Supply
Scan code: LN107292 Manufacturer code: 100-W2-0500-K3
There are 3 people buying this product
Was: £44.99
£39.98
Add To Basket
In stock
FREE DELIVERY ON THIS ITEM
Order now and get it tomorrow, Thu 6th Aug
Delivery Options
  • By DPD On 6th Aug to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

The New White Standard

Green power design to meet ErP Lot6 2013 & ErP Lot3 2014.


Active PFC with 200V-240V AC Input

Active PFC power supply can achieve 99% power factor to save more energy and meet higher environment standards.


Hard Lined Design

Hard lined design allows your cables to be attached to the power supply for ease of installation and removal. You can be ready to go right out of the box.

A 120mm Long Life Sleeve Bearing fan results in quieter operation and longer lifespan.


80 Plus 230V EU White Certification

80 Plus certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 85% efficient or higher.

Features
• Active PFC.
• Single +12V Rail.
• Heavy-Duty Protection.
• 80 PLUS EU (230V) certified 85% efficiency.
Specifications
Size ATX
Edition 500 W2
Wattage 500 W
80 PLUS Certification 80PLUS
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails
Rail 1 +12V 40 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 40 A
Modular No
Modularity
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN107292
Model Number 100-W2-0500-K3
GTIN 2001230526809
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298
