EVGA BR 500 Watt 80+ Bronze PSU/Power Supply

500W EVGA 500 BR, Fully Wired, 80PLUS Bronze, Single Rail, 41.7A, 120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : EVGA BR 500 Watt 80+ Bronze PSU/Power Supply Thumbnail 2 : EVGA BR 500 Watt 80+ Bronze PSU/Power Supply Thumbnail 3 : EVGA BR 500 Watt 80+ Bronze PSU/Power Supply Thumbnail 4 : EVGA BR 500 Watt 80+ Bronze PSU/Power Supply
Scan code: LN90862 Manufacturer code: 100-BR-0500-K3
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

EVGA 500 Watt BR Series Power Supply

EVGA BR 500W 80PLUS Bronze PSU

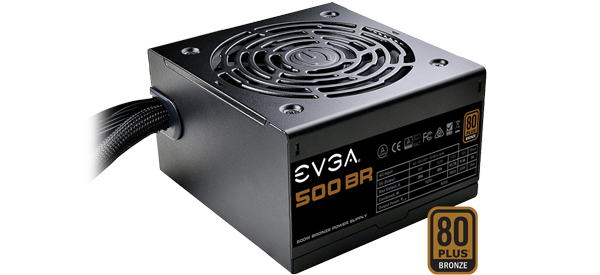

WITH DC TO DC CONVERTER EVGA introduce the BR Series of power supplies, designed with both beginner and enthusiast needs in mind. This EVGA PSU is one of the best choices to power next generation computers. Combining 500W of continuous power with superior performance, seamless efficiency, and trustworthy quality, the 500W BR power supply is what you need to build a solid foundation for your next system. With a 80 Plus certification, this power supply under typical load is 85% efficient, or higher.

Hard Lined Design for Ease of Installation

EVGA BR Series Design PSU

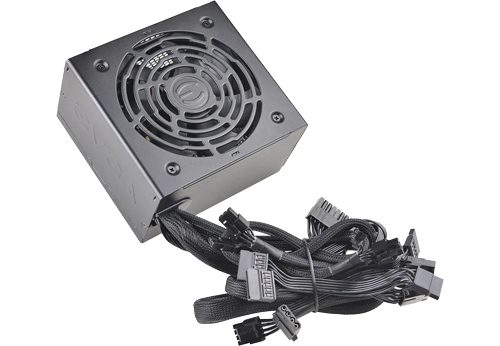

FITTED WITH LONG SLEEVE BEARING FANS The EVGA 500BR Series includes a 120mm long sleeve bearing fan which generates quieter, near-silent operation and results in a longer lifespan. The hard lined design of this power supply allows your cables to be attached to the power supply for ease of installation and removal. It can be ready to use straight out of the box.

Bronze Rated Efficiency

EVGA Bronze Rated Certification Warranty

INCREDIBLE WARRANTY AND PROTECTION The EVGA BR Series PSU features a 80 Plus certification, which ensures your power supply isn't wasting power and turning it into excess heat. Under typical load this power supply is 85% efficient, or higher. Get reliable power and protection for years to come.
*World leading warranty and support for 3 Years. On 450, 500, 600, and 700 BR Models.

Specifications
Size ATX
Edition 500 BR
Wattage 500 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 41.7 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 41.7 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin

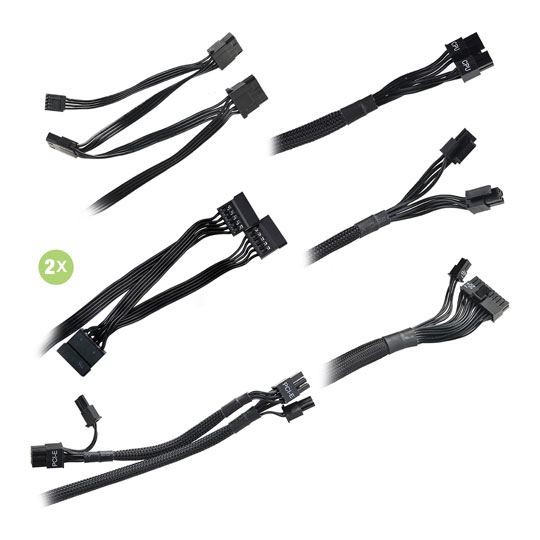

Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 85 x 140 (WxHxD)
Package Type Retail
Additional Information
Scan Code LN90862
Model Number 100-BR-0500-K3
GTIN 4250812423610
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
EVGA
Telephone:
01788 247 298

Additional Notes:
Remaning warranty direct with manufacturer.
