Scan code: LN62889 Manufacturer code: CIT ATV-500W RTL

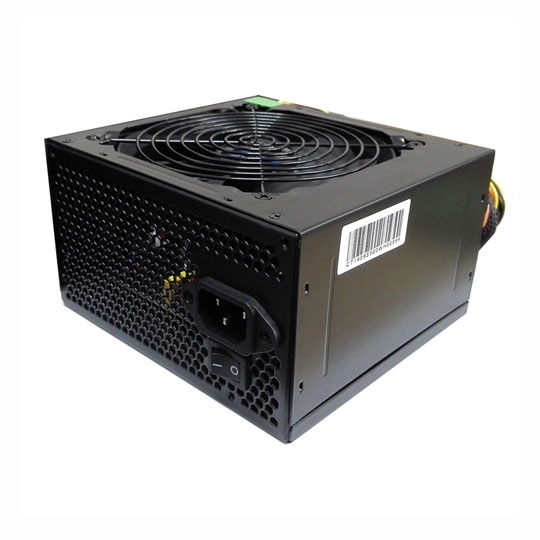

CiT APFC 500W Power Supply

500W CiT Active PFC, 85% Eff, 80+ PLUS Bronze, 36A +12v Single Rail, 120mm Quiet Fan, ErP Lot 6.0, Black, ATX PSU

Thumbnail 1 : CiT APFC 500W Power Supply Thumbnail 2 : CiT APFC 500W Power Supply Thumbnail 3 : CiT APFC 500W Power Supply Thumbnail 4 : CiT APFC 500W Power Supply
Scan code: LN62889 Manufacturer code: CIT ATV-500W RTL
£29.99Item due on 08 June 2018
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Designed to conform to the new EuP Lot 6 laws, The CiT Active 85 500W PSU is an 80+ Bronze Certified unit that offers a minimum of 85% performance at 50% load. Ideal for system integrators, this unit features a low noise 12cm fan, a black coated chassis and sufficient cabling to support most entry to mid level system builds. Features • Compatible with Intel ATX 12V v.2.3 and EPS 12V v.2.92 standards
• Single +12v rail provide more stability and safer power output
• Silent FDB 120mm fan for best overall airflow and heat dissipation
• Over voltage protection, Over power protection, Short Circuit protection, Thermal overload cut-off protection
• Safety agency approval: CE, CB
• Low noise and ripple
• This 12V ATX PC Power Supply is the best choice for your Desktop Computer
• 80+ Bronze Certified
Size ATX
Edition Active 85
Wattage 500 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 36 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 36 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 1 x 6-pin PCIe
  • 1 x FDD Power
  • 4 x SATA
Dimensions 151 x 86 x 141 mm (WxHxD)
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
7 days
RTB Period:
12 months
Manufacturer Contact Details
Customers also bought
TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

500W CiT Active PFC, 85% Eff, 80+ PLUS Bronze, 36A +12v Single Rail, 120mm Quiet Fan, ErP Lot 6.0, Black, ATX PSU is rated 4.1 out of 5 by 7.
Rated 2 out of 5 by from Cuts out Product cuts out. Didn't want to get a replacement incase itsoes it again. With that being said it's better than my corsair VS550 will never be buying corsair again and this one would of been great had it not cut out lots while using it.
Date published: 2017-02-26
Rated 5 out of 5 by from Good value for simple wired PSU Used this to build a winxp replacement system, fully wired, but needed some sata to Molex converters to drive the older Disk drive bay I was using. It is pretty quiet and has no annoying "cool" blue leds. unlike some other PSU's
Date published: 2017-01-30
Rated 5 out of 5 by from Very good Works perfectly and easy to fit. Leads of sufficient length.
Date published: 2016-10-20
Rated 5 out of 5 by from replacement power supply, straight forward to fit and a lot quieter existing psu had gone noisy, got this from Scan as a replacement. Straight forward to fit, and with the larger cooling fan is much quieter. Good service from Scan.
Date published: 2016-06-08
Rated 3 out of 5 by from High pitched transformer whine when plug socket switched on louder than most No 6pin+2 only 6pin. High pitched whine when socket plug is switched on really quite loud for a PSU compared to cheap dell ones maybe I got a bad . Doesn't come with power cord but I suspect must don't. Good cables, 4pin motherboard could be an inch or two longer main motherboard socket is lightly braided. I will contact the company see if the whine is usual other than that good PSU.
Date published: 2016-01-29
Rated 5 out of 5 by from just works just works, with phenon 956 black 3.8Ghz+ 5 x Hdd.
Date published: 2015-12-09
Rated 4 out of 5 by from Good psu Bought this as a budget gamer system cable length is good and the build feel was good too. Fit was easy would definitely recommend.
Date published: 2015-06-29
  • y_2018, m_5, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_62889, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

will this be ok with ASRock Z97 anniversary MoBo

Z97 Anniversary MoBo G3258k cpu 64GB SSD 500 GB HDD 8Gb RAM ( corsair lp) GTX750Ti GPU
Asked by: nickf
I see no problems with this Psu providing sufficient power as you only have one Sata hard Drive, the SSD will consume minimal power. This is a fully wired PSU so there will be more cables than you will probably need to use. Keep them tie-wrapped out of the way to improve the airflow in your case. A modular PSU would potentially have less unused cables, but would be more expensive and would be overkill with the configuration you are suggesting
Answered by: AncientMariner
Date published: 2017-04-01
