Hot Seller
Scan code: LN87291 Manufacturer code: MZ-76E500B/EU

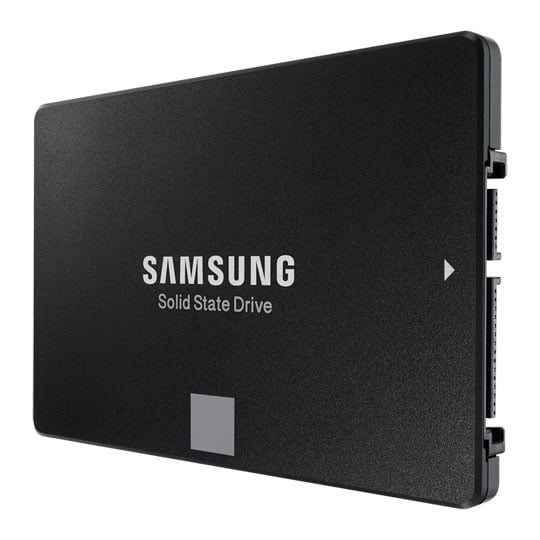

Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive

500GB Samsung 860 EVO, 2.5” SSD, SATA III 6Gb/s, MJX, MLC 3D V-NAND, 512MB Cache, Read 550MB/s, Write 520MB/s, 98k/90k

Thumbnail 1 : Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive Thumbnail 2 : Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive Thumbnail 3 : Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive Thumbnail 4 : Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive Samsung 860 EVO 500GB 2.5” SATA 3D V-NAND SSD/Solid State Drive : video thumbnail 1
Scan code: LN87291 Manufacturer code: MZ-76E500B/EU
£64.49Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

2.5" 500GB Samsung EVO SATA SSD

Samsung 500GB EVO SSD

The Samsung SSD you can Trust The 860 EVO Solid State Drive from Samsung is the latest addition to the best-selling SATA SSD Series. The 860 EVO is specially designed for mainstream PCs and laptops. Featuring the latest V-NAND technology and a robust algorithm-based controller making the 860 series extremely fast and reliable SSD. Thanks to its easy to install 2.5" form factor that is just 6.8mm in height makes the 860 SATA series compatible for not only desktop PCs but for laptops also, giving you extreme performance in any chassis.




550MB/sSequential Read

520MB/sSequential Write

98K IOPSRandom Read

90K IOPSRandom Write

Exceptional Transfer Speed and Plenty of Capacity The Samsung 860 EVO series 2.5" SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the Samsung 860 EVO SATA range:

250GB 1TB 2TB 4TB

Enhanced V-NAND Performance


Intelligent TurboWrite Technology The 860 EVO has more consistent speeds even with heavy workloads and multi-tasking. Intelligent TurboWrite technology pushes the 860 to perform sequential writes up to 520 MB/s, and sequential reads up to 550 MB/s. The TurboWrite buffer has been upgraded from 12 GB to 78 GB which allows you to get much faster file transfers.

Boosted Endurance


Superior Performance Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written) than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.

Multi Form Factors

Form Factors

All your Computing needs The Samsung 860 EVO comes in a wide range of form factors, so there is always an SSD for you. This version of the 860 EVO is the 2.5 inch that is perfect for fast load times in desktop PCs and laptops. Other versions are the SATA-based M.2 (2280) and the mSATA which are both perfect for ultra-slim computing devices.

Samsung Magician

Management softwareSamsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.

Firmware UpdateGet notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.

Performance BenchmarkCheck your SSD's sequential and random read/write speeds, so you can maintain superb performance.

Data SecurityProtect data by selecting security options. The 860 EVO supports AES 256-bit encryption and is compliant with TCG Opal and IEEE 1667.

Capacity 500GB
Edition 860 EVO
Form Factor 2.5"
Height 6.8 mm
Interface SATA 3.0 (6Gb/s)
Host Controller Interface AHCI
Controller Samsung MJX
Flash Memory Type 3-bit MLC V-NAND
Max. Read 550 MB/s
Max. Write 520 MB/s
DRAM Cache Memory 512MB
DRAM Cache Memory Type LPDDR4
Max. Random Read 4K 98,000 IOPS
Max. Random Write 4K 90,000 IOPS
Latency N/A
Special Features
  • AES 256-bit Full Disk Encryption
  • Encrypted Drive(IEEE1667)
  • Garbage Collection
  • S.M.A.R.T Support
  • TCG/Opal V2.0
  • TRIM support (O/S dependent)
Power Consumption (active) 2.5
Max. Endurance Rating 300TB TBW
MTBF 1,500,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration 20~2000Hz, 20G
Max. Operating Shock
Max. Non-operating Shock 1500G, 0.5, 3 axis
Connectivity 1 x SATA 3.0 (6Gb/s)
OS Support
Bracket N/A
Dimensions 69.85 x 6.8 x 100 mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN87291
Model Number MZ-76E500B/EU
GTIN 8806088936017

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
Return to base
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details

Additional Notes:
5 Year Limited Direct Samsung Warranty

Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

500GB Samsung 860 EVO, 2.5” SSD, SATA III 6Gb/s, MJX, MLC 3D V-NAND, 512MB Cache, Read 550MB/s, Write 520MB/s, 98k/90k is rated 4.8 out of 5 by 35.
Rated 5 out of 5 by from Great drive, exactly what was needed I already owned a smaller capacity version of the same, so when my tower's ancient old HDD started to show signs of imminent death, it was a no-brainer to pick this up. Worked great after overcoming a few initial hurdles (put in place by the rest of my hardware, I think) to recognise the drive. Very happy with it.
Date published: 2020-09-03
Rated 5 out of 5 by from Makes my laptop as it should be... My "premium" laptop has never had premium performance, despite an i7 processor and bags of memory. I had long suspected the mechanical disk was the issue but never had the will to open the case and replace it. On reflection, I should have done it after purchase! The laptop now starts up in seconds rather than "make a cup of tea" while it starts up. Apps open swiftly and the whole experience is much faster. Did I need the 1Tb of storage or would I have preferred a fast laptop? 500Gb is plenty and the speed is now amazing. Thanks Scan for a speedy and effortless purchase.
Date published: 2020-08-22
Rated 5 out of 5 by from Exceelnt Service fast delivery WE ordered on a Sunday and received on the Monday. Great product and great service.
Date published: 2020-07-23
Rated 5 out of 5 by from 500GB Samsung 860 EVO Best SSD around, good value for money, recommended
Date published: 2020-07-22
Rated 5 out of 5 by from Changes your pc instantly Great product. Literally boots windows 10 in under 15 seconds. Copying everything from your hard drive to this ssd is quick and easy. Great piece of kit. You won't be disappointed.
Date published: 2020-07-10
Rated 5 out of 5 by from Quality, best price This SSD is high quality at a reasonable price. I bought it from an old laptop, it speeds up its operation.
Date published: 2020-07-09
Rated 5 out of 5 by from New lease of life in Macbook pro I swapped out my old HDD Drive for this SSD Drive, my old Macbook from 2011 boots up in seconds, whereas before I could go make a brew and come back before it had opened. So pleased I bought a second one for my other Macbook.
Date published: 2020-06-02
Rated 5 out of 5 by from Light weight and efficient Bought as a slight upgrade as my original samsung SSD C drive was only 128gb which was tiny. This is really light weight and much smaller than my 2TB HHD that I'm using as the primary file storage in my computer.
Date published: 2020-05-18
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_32
  • loc_en_GB, sid_87291, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does it come with an os?

My old 5200rpm hard drive just completely died and I don’t have windows 10 install disc so do I have to buy a new one? I might be able to get a disc off of my friend but I’m not sure if he still has.
Asked by: HailNvidia
No OS. You will need to install one. If the license code for your previous version is available try contacting microsoft to see if you can download win 10. Alternatively you could try one of the Linux variants that are a free OS to download. While I generally use windows, I have revived a number of old pcs, including an old sony laptop from 2003 with Linux.
Answered by: AM42
Date published: 2019-03-13

What else will I need to fit this?

Hi, I'm looking to buy this to replace the hard drive in my laptop. That drive is 9.5mm thick (it's a Toshiba MQ01ABD100), whereas I see that this is 6.8mm. Could you advice what other things I will need to buy to make this new drive fit in my laptop? With regards to the thickness and any other issues. Thanks
Asked by: EddyTheB
The Samsung drive you are looking to purchase with is 6.5 inch or 2.5 thickness will fit it nearly all laptops.
Answered by: Camkillsu
Date published: 2019-07-08
