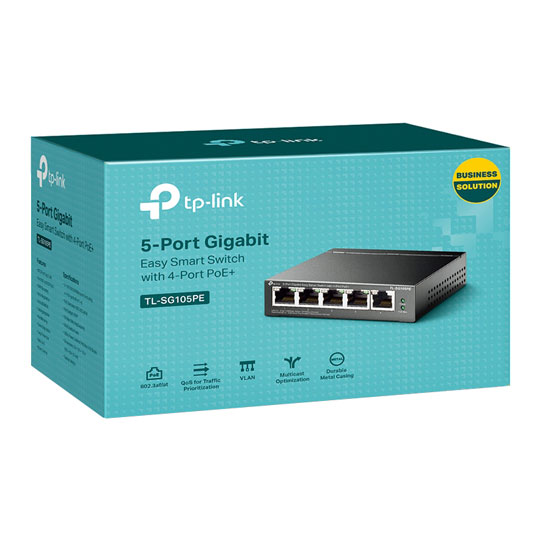

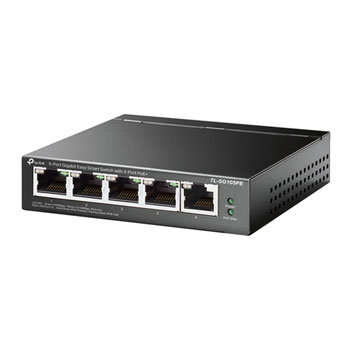

TP-LINK TL-SG105PE 5-Port Gigabit Smart Switch

5 Port TP-Link TL-SG105PE, Gigabit Smart PoE+ Switch, 4x GbE, 802.3af/at PoE+

Thumbnail 1 : TP-LINK TL-SG105PE 5-Port Gigabit Smart Switch Thumbnail 2 : TP-LINK TL-SG105PE 5-Port Gigabit Smart Switch Thumbnail 3 : TP-LINK TL-SG105PE 5-Port Gigabit Smart Switch
Scan code: LN109600 Manufacturer code: TL-SG105PE
£47.99
Order now and receive it between 30th Nov and 2nd Dec
Delivery Options
  • By DPD On 30th Nov To 2nd Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

5-Port Gigabit Easy Smart Switch

The TL-SG105PE is an 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG105PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements.


Power Over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).


Overload Arrangement

TL-SG105PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.


Intelligent Power Management

Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are consuming 15.4 W respectively. If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.


Effective Management

TL-SG105PE offers network monitoring for users to observe traffic behaviour. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS.
With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free.
Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.


Easy to Use

TL-SG105PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.


Features

• Five 10/100/1000Mbps RJ45 ports.
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable.
• Supports PoE power up to 65 W for all PoE ports.
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery.
• Simple network set-up on top of plug-and-play connectivity.
• Web-based user interface and Easy Smart Configuration Utility simplify configuration.
Specifications
Edition Smart Switch
Form Factor Desktop
Total Network Ports 5 x 10/100/1000 (Gigabit) RJ-45
PoE Support Type PoE / PoE+
No. of Ports Providing PoE 4 x 10/100/1000 (Gigabit) RJ-45
Other Non-Network Ports
Switching Capacity 10 Gbps
Non-Blocking Throughput
Forwarding Rate 7.44 Mpps
MAC Address Table Size 2 K Entries
Network Capacity 4000 Active VLANs
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Acoustic Noise
Max. Power Consumption 75.16 W
Max. PoE Wattage per Port 30 W
Mean Time Between Failures (MTBF)
Power Supply External Power Supply (Included)
Material
Includes
Dimensions (WxHxD)
Weight
Additional Information
Scan Code LN109600
Model Number TL-SG105PE
GTIN 6935364052751
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
