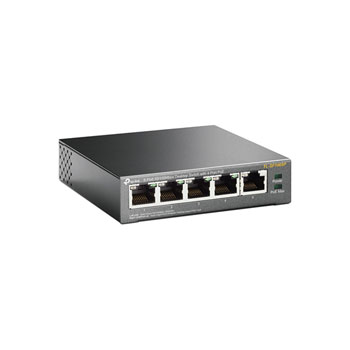

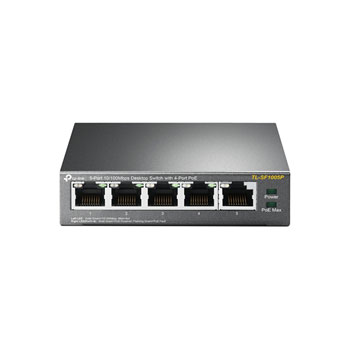

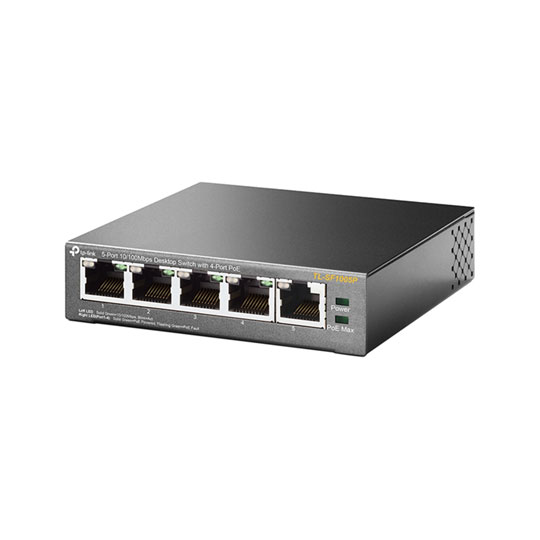

TPLINK 5-Port Desktop Switch with 4-Port PoE
5-Port TP-LINK SF1005P 10/100Mbps Desktop Switch, 10/100, 4-Port PoE
By DPD On 10th Dec To 12th Dec
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network. Features • 5 10/100Mbps RJ45 ports
• With four PoE ports, transfers data and power on one single cable
• Working with IEEE 802.3af compliant PDs, expands home and office network
• Supports PoE Power up to 15.4W for each PoE port
• Supports PoE Power up to 58W for all PoE ports
• Requires no configuration and installation
|Total Network Ports||5 x 10/100 (Fast Ethernet) RJ-45|
|PoE Support Type|
|No. of Ports Providing PoE||4 x 10/100 (Fast Ethernet) RJ-45|
|Other Non-Network Ports|
|MAC Address Table Size||2k Entries|
|Built-in Flash Memory|
|Network Protocols||IEEE 802.3af|
|Max. Power Consumption||64.82 W|
|Max. PoE Wattage per Port|
|Mean Time Between Failures (MTBF)|
|Power Supply||External Power Supply (Included)|
|Dimensions (WxHxD)||99.8 x 25 x 98 mm|
