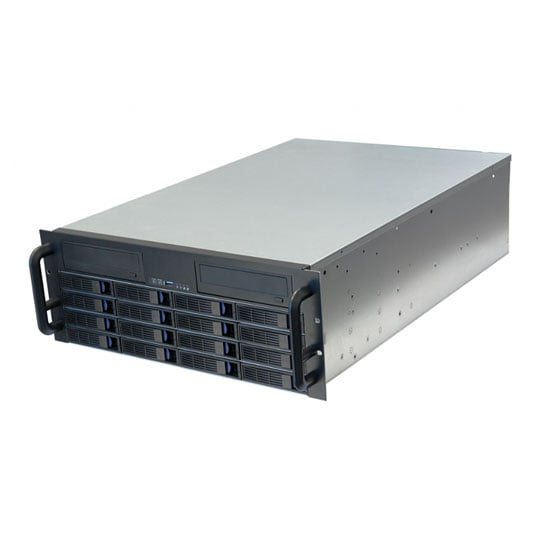

Short Length 4U Server Case with 16x 3.5" Hot-Swappable SATA/SAS Drive Bays 6Gb/s MiniSAS

4U Short Length Server Case, 16x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS, 2x 5.25" Bays

Logic Case
Scan code: LN68848 Manufacturer code: SC-4316S Request call
£239.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview 4U Short Length Server Case w/ 16 x 3.5" Hot-Swappable SATA/SAS Drive Bays, 6Gb/s MiniSAS + 2 x 5.25" Bays Features • 4U rackmount design Short length Chassis only 550mm long.
• 16x hot-swappable SATA (II or III) / SAS drive bays, plus two 5.25" drive brackets.
• The 2 x 5.25" drive bays are both pre-populated with a 4 x 2.5" HDD / SSD converter (which can be removed if required)?
• Four SFF-8087 connectors support up to sixteen 3.5" or 2.5" SATA (II or III) or SAS hard drives or SSD's.
• 6Gb/s Backplanes are horizontal mounted for better ventilation.
• 2 x Additional internal 3.5" or up to 8 x 2.5" HDD Bays if no 5.25" drives required.
• Centre Fan Wall Incorporates 3 x 120mm high flow low noise fans.
• Option to add 2 x 40mm fan per 5.25"bay (total 4) for additional cooling.
• LED indicators for power and activity on each HDD tray.
• RoHS Compliant.
• Support ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (6.7" x 6.7") motherboard.
• Smooth border prevents lacerating your skin whilst handling.
Specifications
Specifications
Case Edition SC-4316S
Case Form Factor 4U
Motherboard Form Factor
  • ATX
  • ITX
  • Micro ATX
Material Steel / Plastic Mesh Bezel
Front/ Side/ Top Panel 2 x USB
Drive Bays
  • 16 x 3.5" Hot-swap
  • 2 x 5.25"
Expansion Slots 7
Fan Bays
  • 3 x 120mm
  • 2 x 80mm
Fans Included None
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window No
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height
Max VGA Card Length
Colour
Dimensions 430 x 550 x 176 (WxHxD mm)
Weight 14.2 kg (Approx)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.
