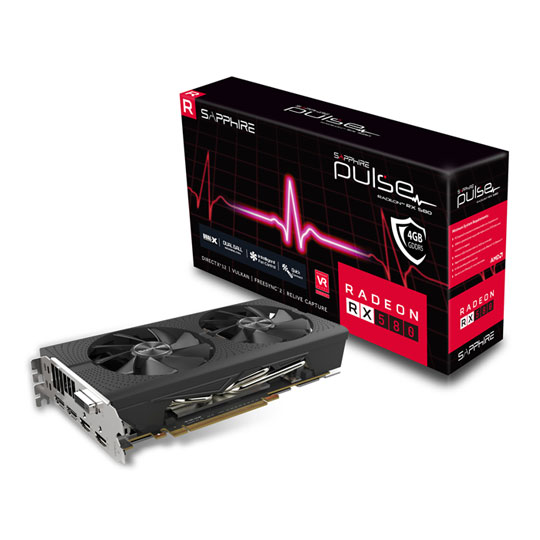

Sapphire AMD Radeon RX 580 4GB PULSE Graphics Card

4GB Sapphire Radeon RX 580 PULSE, 14nm Polaris, 2304 Streams, 1366MHz GPU, 7000MHz GDDR5, 2xDP/2xHDMI/DVI-D

Sapphire
Scan code: LN80150 Manufacturer code: 11265-09-20G Request call
£319.99Item due on 30 September 2017
Pre order
Pay on Scan Finance with a 10% deposit from just £7.99 / month (APR 15.9%)
Mid Range
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

Pulse RX 580 GPU. RX 500 Series from AMD.

AM4 MSI Motherboard
Sapphire Pulse gaming graphics card. #radeonrebels

This RX 580 boasts various tech to help with different areas of the GPU, card protection and performance enhancements are two of the main focus areas. The Radeon graphics card holds 4GB memory and runs off Polaris architecture, its performance is enhanced through Sapphire’s robust cooling system, dual ball-bearing fans, Freesync and more. The RX 580 PULSE GPU possesses 2304 streams and has protected components from the likes of surges. A great gaming graphics card utilising the technology of both AMD and Sapphire.

Component Protection

AM4 MSI Motherboard
Sapphire motherboard fuse protection

In order to protect your card, the SAPPHIRE PULSE series cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

RX 580 Fan Control Tech

AM4 MSI Motherboard
Enhanced Cooling and Noise Performance

Standard industry fans may have up to 10% difference between their fan rotation cycles (RPM). With the new Fan IC Control on SAPPHIRE PULSE graphics cards, this differential is reduced to 3%. This 70% improvement on accuracy ensures that cooling and noise performance of every PULSE card is up to scratch.

Robust VRM Cooling

AM4 MSI Motherboard
More efficient and effective cooling

The SAPPHIRE PULSE cards are designed with robust VRM cooling and have a high thermal conductivity pad on the backplate to take away the heat efficiently and effectively.

Black Diamond Choke 4

AM4 MSI Motherboard
Exclusive chokes for high-quality components

Our Black Diamond Chokes are 10% cooler and 25% more power efficient than a normal choke - and these Mark 4 Chokes reduce the coil temperatures by other 15% over the Mark 3s.

These exclusive chokes will maintain gaming stability using their built-in heatsinks and help minimize coil whine

Dual Ball Bearing GPU Fans

AM4 MSI Motherboard
1.85X longer life with Sapphire GPU

Dual ball bearings on the fan spindles ensure smooth running and long life and are designed to keep out dust. A quiet cooling solution, Two ball-bearing fan features a high-efficiency blade design.

Black Polymer Caps

AMD Ryzen Feature
Long Life Cap Technology

High quality aluminum-made long life capacitor is not only to extend the component life time, the product reliability and overclocking ability are also improved. When operational temperatures dropped by 20°C, the product life span is going to be extended up to a factor of ten. In addition, when the operational temperature increased by 20°C, the product life span only decreased by 10%.

NITRO Quick Connect

AM4 MSI Motherboard
graphics cards fans easy solution

SAPPHIRE’s Quick Connect System provides a quick and easy solution. If there’s a fan issue detected, the user doesn’t need to return the entire card – SAPPHIRE’s partners will send out a replacement fan directly to the customer or the retailer. Please contact your place of purchase to request a fan replacement. SAPPHIRE’s channel partner will arrange the ideal solution for you to receive your replacement fan.

*image for display purpose only

Radeon PULSE FRTC

AM4 MSI Motherboard
Enhancing your PC gaming power

Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.

Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens and menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus and such, while still taking advantage of the responsiveness given by FPS well beyond 60.

Core RX 500 Series Features

AMD Ryzen Feature
Performance Power

High performance gaming and total hardware control, through an elegant Radeon software interface.

AMD Ryzen Feature
Enhanced Gaming

Experience uninterrupted gaming with Radeon RX500 thanks to FreeSync 2 and HDR gaming.

AMD Ryzen Feature
Radeon Chill

Use Radeon Chill for higher clock speeds with less power.

AMD Ryzen Feature
Connections

Built to last with HDMI 2.0 and DisplayPort 1.4 HBR3/1.4 HDR connections.

AMD Ryzen Feature
Support

RX500 series support both Vulkan and DirectX 12 technologies.

AMD Ryzen Feature
Radeon ReLive

Share your memorable moments and clutch victories with Radeon ReLive.


*Features may differ depending on card version

Specifications
Chipset Radeon RX 580
Edition PULSE
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 2304
Core Clock 1366 MHz
Boost Clock
Memory Size 4GB
Memory Type GDDR5
Memory Clock 1750 MHz
Memory Speed (Effective with DDR) 7000 MHz
Memory Data Rate 7.0 Gb/s
Memory Bus 256 Bit
Memory Bandwidth
Peak Half Precision Compute Performance
Peak Single Precision Compute Performance
Cooling Solution Dual Fan (2)
Cooler Design SAPPHIRE Dual-X
Fitted/Included Backplate Yes
Interface PCIe 3.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 2 x HDMI 2.0b
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 4 Displays
AMD CrossFire Support 2-Way CrossFire
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2
Microsoft DirectX Support 12 API
HDR Support Yes
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power 185 W
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU 500 W
Maximum GPU Temperature
Dimensions 125 x 40 x 230 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
