Scan code: LN80159 Manufacturer code: 11268-01-20G

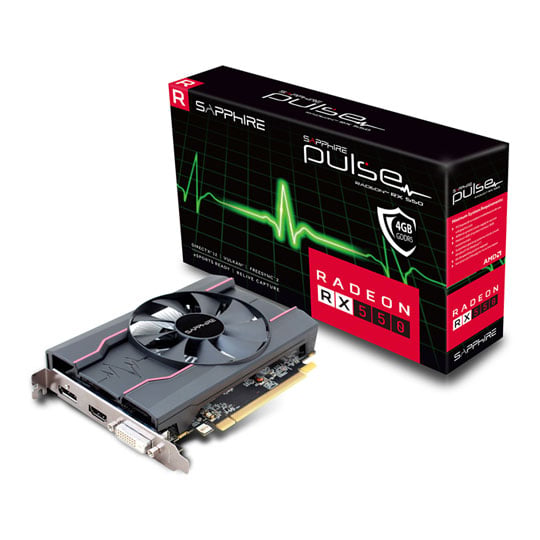

Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card

4GB Sapphire Radeon RX 550 PULSE, 14nm Polaris, 512 Streams, 1206MHz GPU, 7000MHz GDDR5, DP/HDMI/DVI-D DL

Thumbnail 1 : Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card Thumbnail 2 : Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card Thumbnail 3 : Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card Thumbnail 4 : Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card : video thumbnail 1 Sapphire AMD Radeon RX 550 4GB PULSE Graphics Card : video thumbnail 2
Scan code: LN80159 Manufacturer code: 11268-01-20G
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

RX 550 AMD Graphics Card. 4GB Sapphire PULSE

Pulse 4GB
why will you rebel? #radeonrebels

A compact yet powerful GPU, the RX 550 PULSE from Sapphire features 4GB memory and holds a host of intriguing features. Enhanced fuses and Black Polymer caps all help with your cards protection, while features such as the advanced cooling and Frame Rate Target Control push your gaming experience to its peak, for longer. These are just a few of the RX 550 PULSE’s technologies.

GPU Fuse Protection

Fuse Protection
Sapphire motherboard circuit protection

In order to protect your card, the SAPPHIRE PULSE series cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Black Polymer Caps

Power Cap
Long Life Cap Technology

High quality aluminum-made long life capacitor is not only to extend the component life time, the product reliability and overclocking ability are also improved. When operational temperatures dropped by 20°C, the product life span is going to be extended up to a factor of ten. In addition, when the operational temperature increased by 20°C, the product life span only decreased by 10%.

GPU Frame Rate Target Control

Target Control
Enhancing your PC gaming power

Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.

Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens and menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus and such, while still taking advantage of the responsiveness given by FPS well beyond 60.

RX 550 Features

AMD 550 Feature
Performance Power

High performance gaming and total hardware control, through an elegant Radeon software interface.

AMD 550 Feature
Enhanced Gaming

Experience uninterrupted gaming with Radeon RX 550 thanks to FreeSync 2 and HDR gaming.

AMD 550 Feature
Radeon Chill

Use Radeon Chill for higher clock speeds with less power.

AMD 550 Feature

Built to last with HDMI 2.0 and DisplayPort 1.4 HBR3/1.4 HDR connections.

AMD 570 Feature

RX500 series support both Vulkan and DirectX 12 technologies.

AMD 570 Feature
Radeon ReLive

Share your memorable moments and clutch victories with Radeon ReLive.

*Features may differ depending on card version

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Key Specifications
Chipset Radeon RX 550
Edition PULSE
Manufacturing Process 14 nm
Microarchitecture Polaris
Cores & Clocks
Streams 512
Core Clock 1206 MHz
Boost Clock
Video Memory (VRAM)
Memory Size 4GB
Memory Type GDDR5
Memory Clock
Memory Speed (Effective with DDR) 7000 MHz
Memory Bus 128 Bit
Memory Bandwidth
Memory Data Rate
Cooling Solution Single Fan (1)
Cooler Design SAPPHIRE Compact Single Fan
Fitted/Included Backplate No
I/O & Connectivity
Interface PCIe 3.0 (x16)
  • 1 x DisplayPort 1.4
  • 1 x DVI-D
  • 1 x HDMI
AMD CrossFire Support 2-Way CrossFire
AMD Freesync Support Yes
AMD FreeSync Version FreeSync™ 2
HDR Support Yes
Microsoft DirectX Support 12 API
Max. Concurrent Displays 3 Displays
Maximum Digital Resolution 3840x2160 (Ultra HD)
Maximum Analog (VGA) Resolution N/A
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors
Graphics Card TDP/Power
Minimum Recommended PSU 400 W
Maximum GPU Temperature
Width Single Slot
Low Profile Support N/A
Dimensions 112 x 28 x 158 mm
Package Type Retail
Additional Information
Scan Code LN80159
Model Number 11268-01-20G
GTIN 4895106282148

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
14 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Loading Please Wait

Please wait . . .

4GB Sapphire Radeon RX 550 PULSE, 14nm Polaris, 512 Streams, 1206MHz GPU, 7000MHz GDDR5, DP/HDMI/DVI-D DL is rated 4.7 out of 5 by 7.
Rated 4 out of 5 by from Excellent for small / low power consumption builds I purchased this for a small case build using a sub Matx board and an i5 that I had laying around. I was trying to build a compact rig that would do for work and light gaming but with a little more tolerance for warm weather than my ROG laptop. This is not a power hungry card, its sips power from the motherboard only, no extra power connectors required. It is so physically small i was amazed, well built and not massively noisy even under sustained load. Gaming wise I have used it for around 6 hours playing Overwatch, average fps reported by AMD software of 62 FPS using the "high" preset in game. (FPS capped to display, only 60Hz monitor) Doesn't stutter and using with a basic 1080p monitor it was a perfectly enjoyable experience. Value wise, although its a "cheap" card I would only recommend where space, heat and power consumption are a concern. It has 25% the power of an RX 570, but costs 50% as much. I am happy with it as for my use case it is excellent, I now have a small rig I can leave at the family holiday home that takes up next to no space and doesn't wake everyone else up with fan noise.
Date published: 2020-07-19
Rated 5 out of 5 by from Great performer at a good price Upgraded my old graphics card which had failed to render some of my games smoothly. Not having a great deal of free cash to spend this looked like a good option and so it proved. All my games now run smooth as silk.
Date published: 2020-05-08
Rated 5 out of 5 by from Great improvement on on-board graphics Bought the RX 550 to improve video quality on the Intel HD 4600 on-board graphics. Vast improvement and the bonus is that the card has a dynamic fan that only switches on when a certain temperature is reached. Result is I still have a quiet PC when watching videos.
Date published: 2020-04-11
Rated 5 out of 5 by from Great cards for my purposes at a great price. Great cards for my purposes at a great price. I am not a gamer but I bought 2 of these cards for HTPCs and they do the job superbly.
Date published: 2020-04-05
Rated 5 out of 5 by from Excellent Card to complement my FreeSync Monitor Excellent service once again from Scan....just what I needed foe my home computer...being in my eighties and just built my new system, no problems installing and running. If you just want a simple cheap Graphic Card this is the one for you. As they say Plenty of Bang for the Buck
Date published: 2020-03-11
Rated 4 out of 5 by from Great product Installed on a PC which had shared memory for graphics, used for low level cad work, photo work and some gaming, now lightning fast very pleased.
Date published: 2019-03-20
Rated 5 out of 5 by from Good Buy I selected a Radeon card to go with my AOC screen to allow Free-Sync function. Card seems very good value and drives my screen without problems.
Date published: 2018-07-24
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_80159, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Will this work with AMD A8-9600 on ASRock's AB350 Pro4

I have an ASRock AB350 Pro4 Mother board with an AMD A8-9600 Radeon R7 4c + 6G processor and I want an extra Graphics Card. Will this card work, not work, work well or is there a better one someone could recommend? Regards.
Asked by: WDCoates
Good Afternoon, This graphics card should work fine for you. Kind Regards,
Answered by: LukeW
Date published: 2019-09-02
