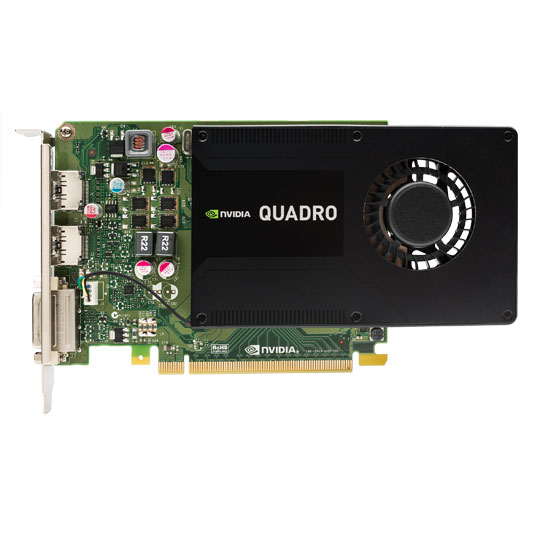

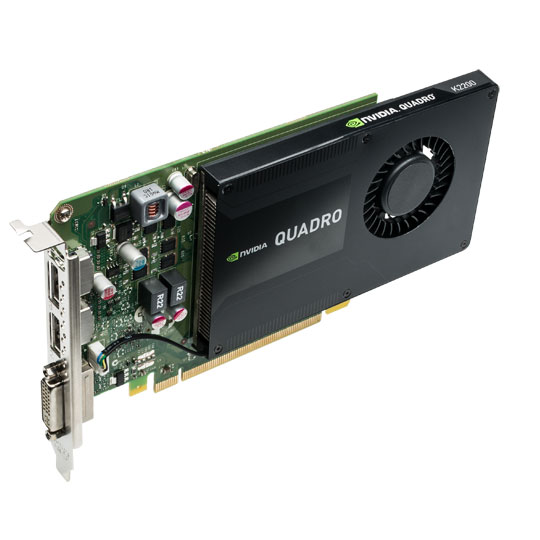

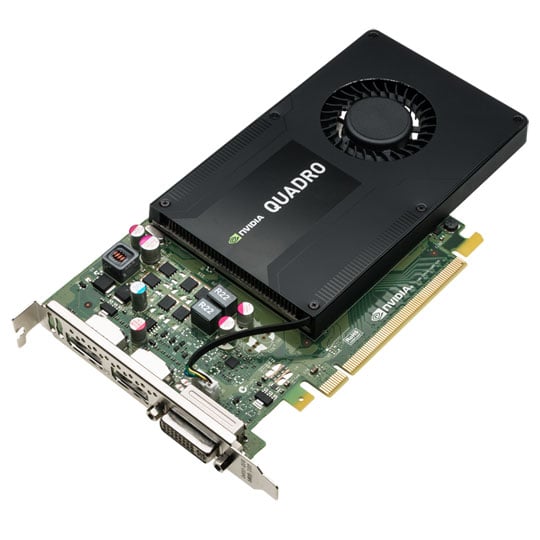

PNY K2200 NVIDIA Quadro 4GB Workstation Graphics Card, PCI-E 2.0 (x16), DP/DVI - VCQK2200-PB

4GB PNY NVIDIA Quadro K2200, 640 CUDA Cores, 1.3 TEFLOPs, GDDR5, PCIe 2.0 (x16), DisplayPort/DVI, 128-bit, 80GB/s

Scan code: LN59130 Manufacturer code: VCQK2200-PB Request call
Pay on Scan Finance with a 10% deposit from just £10.75 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 20th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview



Accelerate your creativity and expand your innovation with NVIDIA® Quadro® the world's most powerful workstation graphics. Support for multiple 4K displays, large memory capacity, advanced photorealistic rendering, and flexible multi-GPU configurations lets you tackle the most challenging visual computing tasks effortlessly. Whether you're developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.

Designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systems, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

You need the right tools to do your best work without distractions like slow performance, poor stability, or incompatibility. Accelerate your creativity and expand your innovation with NVIDIA Quadro, the world's most powerful workstation graphics cards.

NVIDIA Quadro is the world's most advanced visual computing platform for workstations. Much more than a powerful graphics accelerator for sophisticated applications used by professionals, NVIDIA Quadro enables you to create and collaborate in exciting new ways. This makes it the #1 solution for designing, visualizing, and simulating your ideas.


The NVIDIA Quadro K2200 delivers exceptional power-efficient 3D application performance. 4 GB of GDDR5 GPU memory with fast bandwidth enables you to create large, complex models, and a flexible single-slot form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions up to 3840x2160 @ 60 Hz with 30-bit color.

The NVIDIA GPU architecture delivers advanced, power-efficient 3D application performance in a flexible single-slot form factor with no need for external power connectors.

Large GPU memory with fast bandwidth enables the creation of large, complex models.

A new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions like 3840x2160 @ 60 Hz with 30-bit color.

Features 3D Graphics Architecture
• Scalable geometry architecture
• Hardware tessellation engine
• FXAA/TSAA dedicated antialiasing engine
• Bindless Textures
• Shader Model 5.0 (OpenGL 4.4 and DirectX 11)
• Up to 16K x 16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 32-bit per component floating point texture filtering and blending
• Up to 64X full scene antialiasing (FSAA)
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• Dedicated H.264 encoder (requires application support)
• Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
• Quadro Boost (Automatically increases GPU engine throughput to maximize application performance).

Parallel Computing Capabilities
• Streaming Multi-Processor Design (SM 5.0) delivers high performance and energy efficiency
• Support for all the latest CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory)
• Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python and Fortran

Advanced Display Features
• Simultaneously drive up to three displays when connected natively
• Support up to four displays when using DisplayPort 1.2 multi-streaming
• Dual DisplayPort 1.2 outputs including Multi-Stream and HBR2 support (capable of supporting resolutions such as 4096 x 2160)
• DisplayPort 1.2 (up to 4096 x 2160 at 60Hz and 2560 x 1600 at 120Hz)
• DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
• DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
• Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
• DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)
• Stereoscopic 3D display support including NVIDIA 3D Vision Pro and 3D Vision, 3D DLP, interleaved, and passive stereo
• OpenGL and Direct3D quad buffered stereo support
• Underscan/overscan compensation and hardware scaling
• Support for NVIDIA quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools

DisplayPort and HDMI Digital Audio
• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC, DTS-HD, TrueHD
• Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz
• Word sizes of 16-bit, 20-bit, and 24-bit
Graphics Chipset Quadro K2200
Edition K2200
Manufacturing process
GPU Name
NVIDIA Tensor Cores
Core Clock
Boost Clock
Memory Size 4 GB
Memory Type
ECC Technology No
Memory Clock
Memory Bit Rate
Memory Bandwidth 80 GB/s
Single Precision Processing No
Single Precision Performance 1.3 teraFLOPS
Double Precision Processing No
Double Precision Performance
Tensor Processing No
Deep Learning (Tensor) Performance
Integer Operations (INT8)
Concurent Users N/A
H.264 1080p30 Streams N/A
Interface PCIe 2.0 (x16)
Interface Bandwidth
Graphics Output

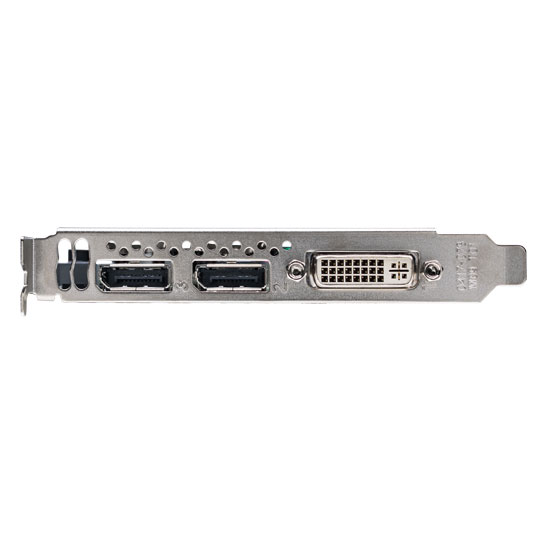

  • 2 x DisplayPort
  • 1 x DVI
Maximum Digital Resolution
Maximum VGA Resolution
Multi GPU Support
Multi Monitor Support 4 Displays
HDCP Ready No
Supported Compute APIs
Supported Graphics APIs
Microsoft DirectX Support
Form Factor
Low Profile Compatible No
Low Profile Support
Board Power 68 W
Graphics Card Power Connectors
Minimum Recommended PSU
Maximum GPU Temperature
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
120 months
Manufacturer Contact Details
0871 472 4747
