Gigabyte RX460 WindForce OC 4GB AMD Graphics Card
4GB Gigabyte Radeon RX 460 WINDFORCE OC, 14nm Polaris, PCIe 3.0, 7000MHz GDDR5, 1212MHz GPU, 896 Streams, DP/HDMI/DVI-D
AMD GIGABYTE WINDFORCE OC - Radeon RX 480 GPU

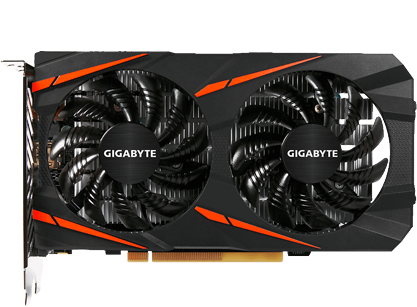

GIGABYTE RX 460 WindForce OC Graphics Card
This is the cheaper version of GIGABYTE RX 460's, but despite that it still features some great tech due to an impressive collaboration of GIGABYTE and AMD technologies. As part of the RX 460 OC edition it has been built with overclocking in mind, plus it comes with WINDFORCE cooling technology to make sure your GPU stays as cool as possible when utilizing your media.
WINDFORCE GPU COOLING SYSTEM
Advanced RX 460 Cooling Technology
The WINDFORCE 2X cooling system is the outcome of both clever and efficient design. Built into the RX 460 OC graphics card, it features two unique blade fans, 3D active fan functionality, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
INTELLIGENT GRAPHICS CARD FANS
GIGABYTE 460 Unique Fan Blades
The RX 460 airflow is spilt by it’s triangle fan edge, which is then guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the GIGABYTE OC Radeon RX 460 airflow by 23% over the traditional fans design.

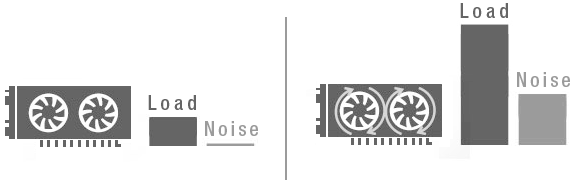

INTELLIGENT GPU FAN BEHAVIOUR
Smart GIGABYTE 460 Cooling Fans
The semi-passive fans built into the GIGABYTE OC RX 460 will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
GIGABYTE GPU XTREME ENGINE
Complete Control of 460 and Features
Featured on the RX 460 is GIGABYTE’s Xtreme Engine that allows you to adjust clock speeds, voltage, fan performance and power target. The OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
GIGABYTE RX 460 CONNECTIONS
1 x DisplayPort 1.4 | 1 x DVI-D DL | 1 x HDMI 2.0b
|Chipset||Radeon RX 460|
|Manufacturing Process||14 nm|
|Core Clock||1212 MHz|
|Memory Clock||1750 MHz|
|Memory Speed (Effective with DDR)||7000 MHz|
|Memory Data Rate|
|Memory Bus||128 Bit|
|Memory Bandwidth||112 GB/s|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Dual Fan (2)|
|Cooler Design||WINDFORCE 2X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||3 Displays|
|AMD CrossFire Support||2-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors|
|Minimum Recommended PSU||350 W|
|Maximum GPU Temperature|
|Dimensions||37 x 191 x 111 mm|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 36 months
- DOA Period:
- 28 days
- RTB Period:
- 28 months
- Gigabyte Uk
Date Issued: 8th Aug 2016
2016 is proving to be a bumper year for new graphics card launches. Both AMD and Nvidia have refreshed their portfolios with a range of cards based on cutting-edge architectures, and there's plenty of differentiation between the two, as while Nvidia has focussed primarily on the high-end, AMD has plied the mainstream end of the market with the Radeon RX 480, Radeon RX 470 and, as of today, the Radeon RX 460.
