Asus ROG STRIX RX460 OC Gaming 4GB Graphics Card

4GB Asus Radeon RX460 ROG STRIX, 14nm Polaris, PCIe 3.0, 7000MHz GDDR5, 1236MHz Boost/1256MHz in OC Mode, 896 Streams

Asus
Scan code: LN74026 Manufacturer code: STRIX-RX460-O4G-GAMING Request call
£159.98
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
Mid Range
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD SAPPHIRE - Radeon RX 480 GPU

ASUS STRIX OC GAMING RX 460 GPU

Packed with exclusive ASUS technology this ROG STRIX RX 460 is part of ASUS’ gaming graphics card line. It boast various technologies that will enhance gaming performance such as the advanced STRIX cooling system. It features a ROG logo LED that can be completely customized for a personal touch and is built with reliable, premium quality components – for lasting class.

896
Streams

4GB
GDDR5

1236MHz
Boost Clock

1256MHz
Boost OC Mode

STRIX GPU COOLING SYSTEM

DirectCU III Graphics Card Cooling Tech

This Strix AMD 460 will achieve up to 30% extra cooling performance when gaming thanks to the exclusive DirectCU III cooling technology. This tech featured on the Radeon RX 460 utilizes direct-GPU contact heat-pipes that will transport more heat away from the GPU and out-perform the reference designs.

*Image for illustration only, actual design may vary.

ENHANCED STRIX 460 COOLING

Triple Wing-Blade GPU Cooling

DirectCU III features triple 0dB fans engineered with a patented wing-blade design that delivers maximum air flow and improved 105% static pressure over the heat sink of the Strix RX 460 - while operating at 3X quieter volumes than reference cards. The 0dB fans also let you enjoy games in complete silence and make DirectCU III the coolest and quietest graphics card in the market.

GPU DURABILITY & EFFICIENCY

A More Reliable AMD 460

This 460 series, like various other ASUS boards, has had premium alloy components intergrated into their graphics card designs reinforcing the overall reliability. Super Alloy Power II components greatly enhance the Strix 460 efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.

ASUS GPU FAN CONNECTIONS

GPU Controlled Fan Headers

When gaming it is commonly found that GPU temperatures are higher than that of the CPU, due to chassis fans usually referencing CPU temps only - resulting in inefficient cooling. The Strix 460 graphics card features two 4-pin GPU controlled headers that can be connected to system fans for targeted cooling on your ASUS Radeon RX 460.

*A 4-pin GPU-controlled fan header connected to system fan for optimal thermal cooling.

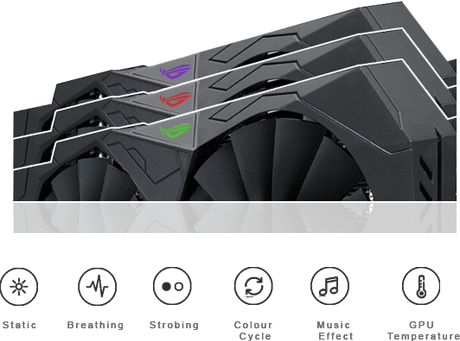

STRIX RX 460 EMBEDDED LED

ASUS 460 Aura RGB Lighting

ASUS Strix 460 features Aura RGB Lighting on the shroud, these Strix graphics cards are capable of displaying millions of colors in six different effects. Experience a personalized gaming system with Strix Radeon RX 460.

STRIX RX 460 CONNECTIONS

1x HDMI 2.0b | 1x DisplayPort 1.4 | 1x Dual-Link DVI

Specifications
Specifications
Chipset Radeon RX 460
Edition ROG STRIX
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 896
Core Clock
Boost Clock 1236 (1256MHz in OC mode) MHz
Memory Size 4GB
Memory Type GDDR5
Memory Clock 1750 MHz
Memory Speed (Effective with DDR) 7000 MHz
Memory Data Rate
Memory Bus 128 Bit
Memory Bandwidth 112 GB/s
Cooling Solution Dual Fan (2)
Cooler Design DirectCU II
Fitted/Included Backplate No
Interface PCIe 3.0 (x16)
Connectivity
  • 1 x DisplayPort 1.4
  • 1 x DVI-D
  • 1 x HDMI 2.0
Maximum Digital Resolution 5120x2880
Maximum Analog (VGA) Resolution N/A
Max. Concurrent Displays 3 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 6-pin PCIe
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions 194 x 120 x 35 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
TekSpek Guides
AMD Radeon RX 460
AMD Radeon RX 460
Date Issued: 8th Aug 2016

2016 is proving to be a bumper year for new graphics card launches. Both AMD and Nvidia have refreshed their portfolios with a range of cards based on cutting-edge architectures, and there's plenty of differentiation between the two, as while Nvidia has focussed primarily on the high-end, AMD has plied the mainstream end of the market with the Radeon RX 480, Radeon RX 470 and, as of today, the Radeon RX 460.

Read More
