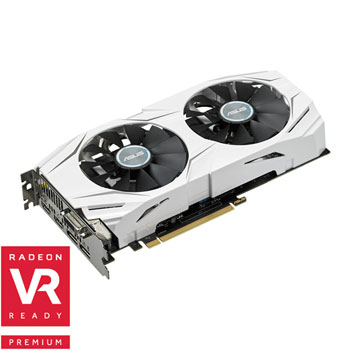

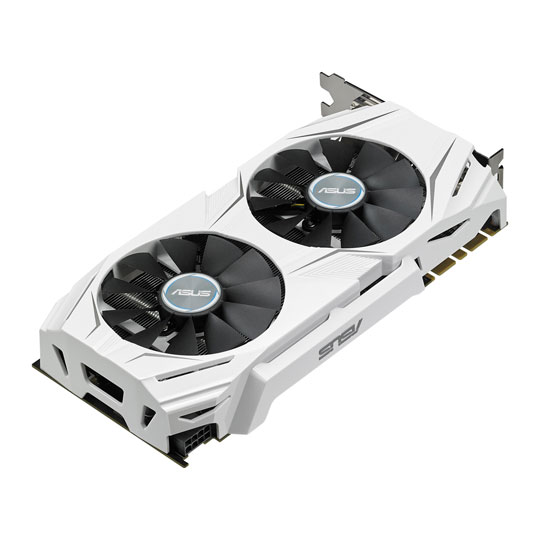

Asus Radeon 4GB RX 480 Dual OC Graphics Card

4GB Asus Radeon RX 480 Dual OC, 14nm Polaris, PCIe 3.0, 7000MHz GDDR5, 1300MHz (1320MHz in OC Mode) Boost, 2304 Streams

Asus
Scan code: LN75060 Manufacturer code: DUAL-RX480-O4G Request call
£215.48
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £11.50 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More

AMD ASUS DUAL OC - Radeon RX 480 GPU

ASUS DUAL OC RX 480 GPU

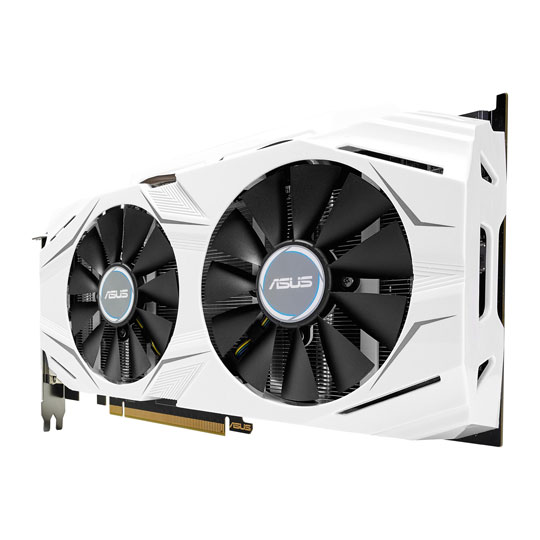

The DUAL OC comes equipped with a dual fan design that delivers 2X greater airflow and 3X quieter performance to this RX 480. Exclusive Auto-Extreme Technology with Super Alloy Power II components are utilized for superior stability within the GPU. Plus, as an OC version its speeds are capable of that bit more than standard 480 graphics cards, pushing graphic power and FPS further - a GPU worthy of gaming.

2304
Streams

4GB
GDDR5

1300MHz
Boost Clock

1320MHz
Boost OC Mode

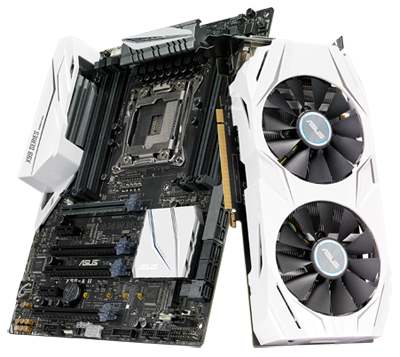

MATCHING DUAL 480 DESIGN

Optimise RX 480 Style & Performance

ASUS Dual RX 480 graphics cards and X99-A II motherboards share perfectly matching colour themes and are ready for Windows 10. The Dual RX 480 is equipped with DirectX 12 to squeeze more graphics performance from the CPU and prevent GPU bottlenecks.

GPU PERFORMANCE TWEAKING

Keep Track of DUAL 480 Performance

Tweak II technology will allow you to view any and all statistics about your RX 480 graphics card, including GPU and memory clock speeds, GPU voltage, fan speeds and more. It also gives the ability to set particular modes on you Radeon RX 480 card, for example the Gaming Booster mode helps to apply numerous optimizations as well as execute memory defragmentation, which in-turn maximizes performance and system responsiveness, enhancing gaming experiences - take control your 480.

NEXT-GEN GRAPHICS CARDS

Premium 480 Quality & Top Reliability

ASUS graphics cards are produced using Auto-Extreme Technology, an industry-first 100% automated production process, and features premium Super Alloy Power II components. These components enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability in your DUAL RX 480.

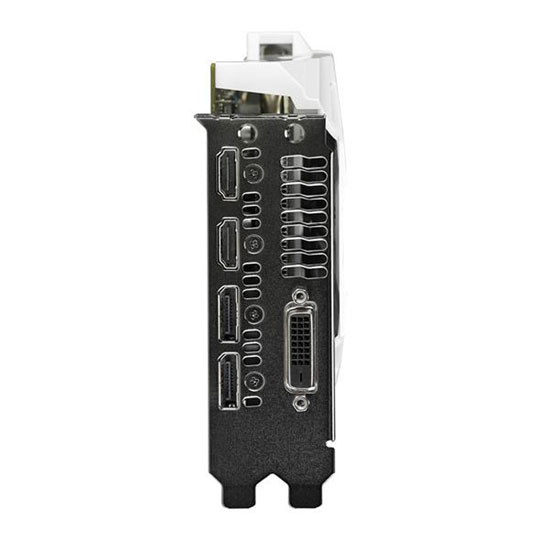

ASUS RX 480 CONNECTIONS

2 x HDMI 2.0 | 1x DVI-D | 2 x DisplayPort 1.4

AMD Radeon VR READY - PREMIUM

Escape into lifelike realms of ultra-immersive virtual reality experiences with Radeon™ VR Ready Premium solutions powered by powerful AMD Radeon™ graphics.​

Delivering immense visual power and unmatched technological innovation, AMD's VR Ready Premium solutions set the bar for enabling premium experie​nces on high-end VR games, entertainment, and applications.

Specifications
Specifications
Chipset Radeon RX 480
Edition DUAL-RX480-O4G
Manufacturing Process 14 nm
Microarchitecture Polaris
Streams 2304
Core Clock
Boost Clock 1300 (1320MHz in OC Mode) MHz
Memory Size 4GB
Memory Type GDDR5
Memory Clock 1750 MHz
Memory Speed (Effective with DDR) 7000 MHz
Memory Data Rate
Memory Bus 256 Bit
Memory Bandwidth 224 GB/s
Cooling Solution Dual Fan (2)
Cooler Design Asus Blower Cooler
Fitted/Included Backplate No
Interface PCIe 3.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 1 x DVI-D
  • 2 x HDMI 2.0
Maximum Digital Resolution 5120x2880
Maximum Analog (VGA) Resolution
Max. Concurrent Displays 3 Displays
AMD CrossFire Support 2 Way CrossFireX
AMD Freesync Support Yes
Microsoft DirectX Support 12 API
Width Dual Slot
Low Profile Support N/A
Graphics Card TDP/Power
Graphics Card Power Connectors 1 x 8-pin PCIe
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions 242 x 130 x 43 mm
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01442 265548
TekSpek Guides
AMD Radeon RX480
AMD Radeon RX480
Date Issued: 29th Jun 2016

It's been a good start to the year for PC enthusiasts. Intel has unleashed the deca-core Core i7-6950X and Nvidia has served up a suitable partner in the form of the high-end GeForce GTX 1080. Handy, if you happen to have thousands of pounds to pour into your next PC, but for everyone else a more mainstream solution is needed to sate our appetites.

Read More
