Scan code: LN72516 Manufacturer code: SM2280S3G2/480G

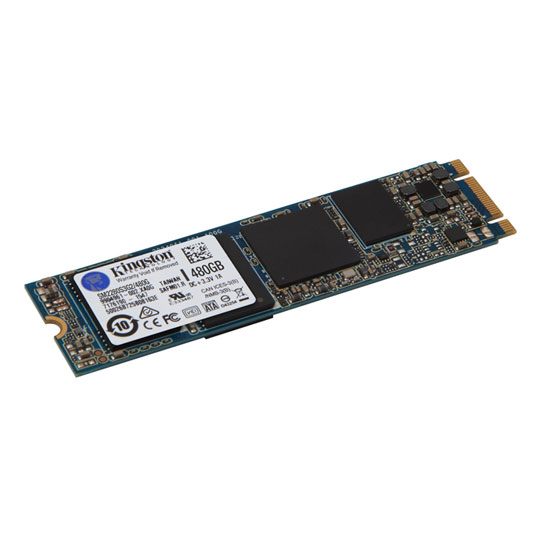

Kingston 480GB SSDNow M.2 SATA 3 SSD/Solid State Disk Drive

480GB Kingston SSDNow, M.2 SATA (22x80) SSD, 3.5 mm, Read 550MB/s, Write 520MB/s, 90k/85k IOPS

Thumbnail 1 : Kingston 480GB SSDNow M.2 SATA 3 SSD/Solid State Disk Drive Thumbnail 2 : Kingston 480GB SSDNow M.2 SATA 3 SSD/Solid State Disk Drive Thumbnail 3 : Kingston 480GB SSDNow M.2 SATA 3 SSD/Solid State Disk Drive
Scan code: LN72516 Manufacturer code: SM2280S3G2/480G
£156.49Item currently awaiting an ETA
Pre order
From £14.05 / month (APR 14.9%)
Monthly Payment: £27.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £156.49
Total inc. interest: £162.93
Monthly Payment: £14.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £156.49
Total inc. interest: £168.58
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Kingston's M.2 SATA G2 SSD is a thin and compact, caseless internal solid-state drive that combines high capacity with low power consumption to serve as a reliable caching device or primary storage for the O/S and applications. Suitable for desktop motherboards that use the Intel 9x chipset and popular small-form-factor (SFF) PCs including ultrabooks, notebooks and tablets, the M.2 2280 SATA G2 SSD easily integrates into designs with M.2 connectors and is ideal for system builders and DIY end users.

Lighter weight than a cased SSD, the M.2 SATA G2 SSD optimises performance with advanced garbage collection, wear-levelling and TRIM support to keep performance consistent over the life of the drive. DevSleep, a recent addition to the SATA specification, is an efficient power management option that minimises power consumption and extends battery life. Firmware-based power loss protection maintains data integrity and ensures that data in the cache is constantly flushed and hardened to NAND to enable the drive to recover in the event of an unsafe shutdown.

The complimentary Kingston SSD Manager (KSM) monitors warranty status and SSD health via the Kingston website. The M.2 SATA G2 SSD is backed by a limited five-year warranty, free technical support and legendary Kingston® reliability. Features • Space-saving caseless design fits ultra-thin computing applications.
• Multi-purpose SFF connector replaces small mSATA and mini-PCIe slots.
• Capacities of up to 480GB.
• M.2 Gen 2 SSDs are backed by a limited five-year warranty.
Specifications
Capacity 480GB
Edition M.2 SATA G2
Form Factor M.2 (2280)
Height 3.5 mm
Interface SATA III - 6Gb/s
Host Controller Interface
Controller
Flash Memory Type None
Max. Read 550 MB/s
Max. Write 520 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 80,000 IOPS
Max. Random Write 4K 80,000 IOPS
Latency N/A
Special Features
Power Consumption (active) 3.01 max
Max. Endurance Rating 800TB and 0.93 DWPD
MTBF 1 million Hours
Max. Operating Vibration 2.17
Max. Non-operating Vibration 20
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x M.2 (SATA)
OS Support
Bracket N/A
Dimensions
Weight
Package Type Retail
Warranty
