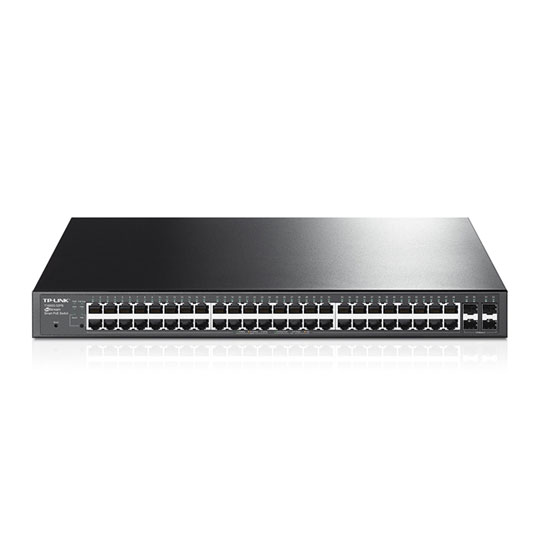

The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network flexibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.
Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, RMON and Dual Image, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function.
IEEE 802.3at/af-compliant Power over Ethernet
The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-52PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Abundant L2 and L2+ features
T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
T1600G-52PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies.
Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
Enterprise Level Management Features
T1600G-52PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded. Features
• Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W.
• L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources.
• IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies.
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications.
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.
• WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features.
4 x SFP
48 x 10/100/1000 (Gigabit) RJ-45
- IEEE 802.1d
|Mean Time Between Failures (MTBF)
|Max. Power Consumption
440 x 330 x 44 mm
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 24 months
- DOA Period:
- 28 days
- RTB Period:
- 12 months
Manufacturer Contact Details
- 0845 147 0017
UK Users Tel:
0845 147 0017
24 hours a day, 7 days a week
Procedures in Detail
Step 1: Contact us through our Technical Support Line 0845 147 0017 (UK) or 0818 229 000 (Ireland), a representative will help you with remote troubleshooting. If the product is judged to be defective, the representative will provide you with a unique RMA number. Customer contact and product info will be requested during this process.
Step 2: An email explaining the RMA process will be sent from TP-LINK UK.
Step 3: Send defective product, purchase receipt along with RMA number to TP-LINK.
Note: Customers are responsible for the shipping fee in Step 3.
Step 4) Once the defective product is received, TP-LINK UK Limited will send back a replacement and inform customer of the tracking number. The warranty starts from the purchase date of your original unit and lasts for 2+1 years on SOHO products regardless of how many replacements are made.
Note: TP-LINK UK Limited will pay the one way shipping fee in Step 4
PLEASE NOTE: If you register your product with TP-LINK then you can enjoy a free 3rd year warranty.
Sign in portal http://warranty.uk.tp-link.com/SignIn.aspx
Warranty information http://uk.tp-link.com/rma.html
