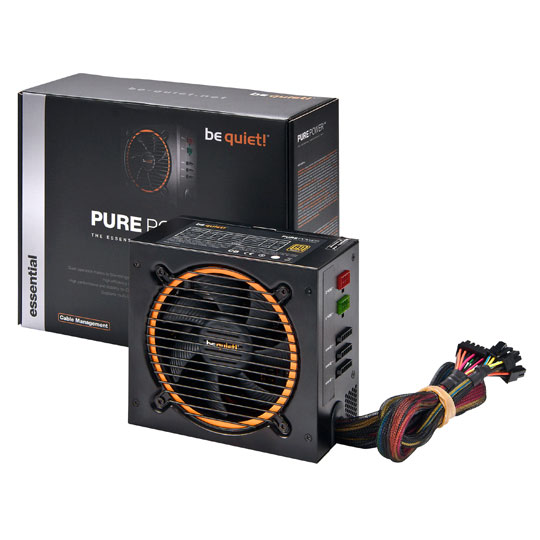

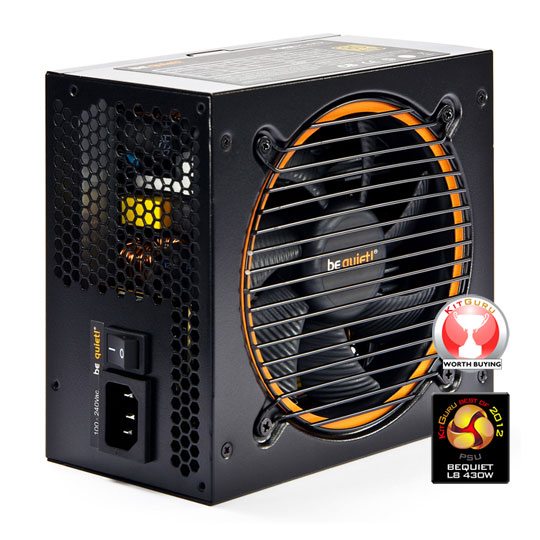

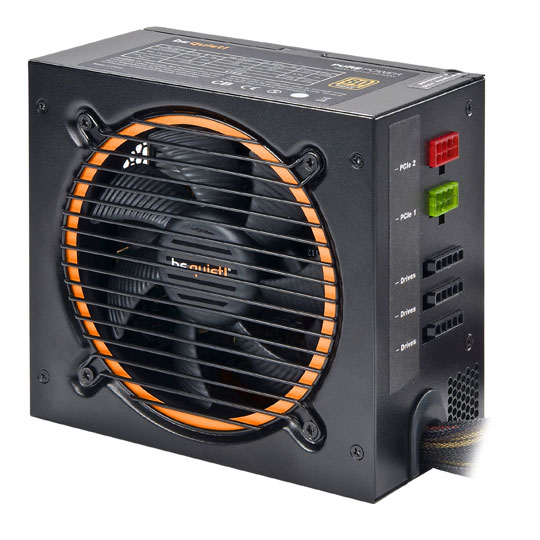

be quiet! BN180 430W Hybrid Modular Power Supply
Delivery
DPD £5.48 Delivered by DPD Wed 31 Aug. Delivered to your specified address. Receive SMS with one-hour delivery window.
UPS Access Point £4.79 Collect from local shops Collect your parcel from your newsagents, petrol stations and convenience stores.
Collect Instore Free Collect Instore Place your order online and collect from our Bolton store with Q-Collect.
Weekend, timed and European delivery options are available at checkout

be quiet! BN180 430W Hybrid Modular Power Supply

BN180 - 430W be quiet! Pure Power L8, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX v2.31, PSU

Finance
Scan Finance More options

Buy Now Pay Later - After a 10% deposit pay nothing for 9 months.

PayBreak

Spend between £100 and £1000 and get the goods before you pay.

BN180 - 430W be quiet! Pure Power L8, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX v2.31, PSU

be quiet! BN180 430W Hybrid Modular Power Supplybe quiet! BN180 430W Hybrid Modular Power Supplybe quiet! BN180 430W Hybrid Modular Power Supplybe quiet! BN180 430W Hybrid Modular Power Supply
be quiet! BN180 430W Hybrid Modular Power Supply
Product Overview
The Pure Power L8-430W has been engineered with the same high quality that you have come to know and appreciate from be quiet!. The usual quiet operation thanks to a high-quality temperature-controlled 120mm fan and the usual stable performance thanks to two separate 12V rails. The L8-430W offers an efficient and economical operation, achieving an 80PLUS Bronze certification with an efficiency of up to 88%. Equipped with two PCI Express connectors (1x 6+2 pin and 1x 6 pin), the L8-430W is suitable for multi-GPU operation.

Features
• Quiet operation through be quiet! fan using SilentWings technology
• High performance and stability for CPU and GPU
• Efficient and economical operation
• Very high compatibility with older and future components
• Convenient to use. Cable management
• Top safety and reliability
Technical Specification
General
Manufacturer:
be quiet!
Size:
ATX v2.31
Edition:

Wattage:
430 W
80 PLUS Certification:
80 PLUS Bronze
Max. Efficiency:
88 %
Cooling:
Fan
Fans:
  • 1 x 120mm
Internal +12V Rails:
Dual Rail
Rail 1 +12V:
22 A
Rail 2 +12V:
20 A
Rail 3 +12V:
N/A
Rail 4 +12V:
N/A
Rail 5 +12V:
N/A
Rail 6 +12V:
N/A
Max. Combined Output +12V:
33 A
Modular:
Yes
Modularity:
Hybrid Modular
SLI/CrossFire:
Yes
EPS 12V:
No
Motherboard Connector:
20+4 Pin
Connectors:
  • 1 x 4+4pin CPU +12V
  • 3 x 4pin Molex
  • 1 x 6+2pin PCI-E Power
  • 1 x 6pin PCI-E Power
  • 1 x FDD Power
  • 4 x SATA Power
Dimensions:
150 x 86 x 160 mm (WxHxD)
Warranty

For further information regarding Scan's warranty procedure please click here

Details
Duration:
36 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Recommend This Product

To tell a friend about this product please fill out your name and enter their email address.

  • Send
Customers Who Bought This Item Also Bought

Sort by:

Page style:

1

92mm Noctua NF-B9-REDUX-1600 1600RPM Quiet Case Fan

£8.32 ex VAT

£9.98 inc VAT

2

Fractal Design Define Mini micro-ATX Mini Tower Performance Case with USB 3.0 w/o PSU
  • High End Rating
  • Rated 4.0 out of 5 by 3 people Customer Review

£70.82 ex VAT

£84.98 inc VAT

3

Intel Core i3 6100T, S 1151, Skylake, Dual Core, 3.2GHz, 3MB Cache, 950MHz GPU, 32x Ratio, 35W, CPU, Retail
  • Mid Range Rating
  • 3XS Approved 3XS Approved

£91.24 ex VAT

£109.49 inc VAT

4

120mm Noctua NF-S12B REDUX PWM 1200RPM Quiet Case Fan
  • High End Rating
  • 3XS Approved 3XS Approved

£9.99 ex VAT

£11.99 inc VAT

5

8GB (2x4GB) Corsair DDR3 Vengeance Jet Black Low Profile, PC3-12800 (1600), Non-ECC, CAS 9-9-9-24, XMP, 1.5V
  • High End Rating
  • Rated 4.9 out of 5 by 26 people Customer Review
  • 3XS Approved 3XS Approved

£32.91 ex VAT

£39.49 inc VAT

6

8GB (2x4GB) Corsair DDR3 Vengeance Low Profile Cerulean Blue, PC3-17066 (2133), Non-ECC, CAS 11-11-11-27, XMP, 1.5V
  • High End Rating
  • Rated 0.0 out of 5 by 0 person Customer Review

£38.32 ex VAT

£45.98 inc VAT

7

Nanoxia Deep Silence 4 Anthracite Low Noise micro-ATX PC Case
  • High End Rating
  • Rated 5.0 out of 5 by 1 person Customer Review

£56.24 ex VAT

£67.49 inc VAT

8

AMD A10 5700, FM2, Virgo, Quad Core, 3.4GHz, AMD Radeon HD 7660D 800MHz, 65W, CPU, Retail
  • Mid Range Rating
  • Rated 4.0 out of 5 by 1 person Customer Review
  • 3XS Approved 3XS Approved

£79.16 ex VAT

£94.99 inc VAT

9

Asus H170M-E D3, Intel H170, S 1151, DDR3/DDR3L, SATA3 6Gbps, M.2 (PCIe/SATA), 2-Way CrossFire, GbE LAN, USB3, Micro ATX
  • Mid Range Rating
  • Rated 5.0 out of 5 by 1 person Customer Review

£69.16 ex VAT

£82.99 inc VAT

10

Fractal Design Core 1500 Mini Tower Computer Chassis, Integrated 3 speed Fan Controller, 2x 120mm Fans, USB 3.0, Black
  • High End Rating
  • Rated 5.0 out of 5 by 1 person Customer Review

£41.66 ex VAT

£49.99 inc VAT

Find Similar Products

Find similar products with the same specifications as 430W be quiet! Pure Power L8, Hybrid Modular, 80 PLUS Bronze, 1x120mm, ATX v2.31, PSU . Please choose from the list below.

ATX v2.31

Please tick the check box above

Please tick the check box above

430 W

Please tick the check box above

80 PLUS Bronze

Please tick the check box above

88 %

Please tick the check box above

Fan

Please tick the check box above

1 x 120mm

Please tick the check box above

Dual Rail

Please tick the check box above

22 A

Please tick the check box above

20 A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

N/A

Please tick the check box above

33 A

Please tick the check box above

Yes

Please tick the check box above

Hybrid Modular

Please tick the check box above

Yes

Please tick the check box above

No

Please tick the check box above

20+4 Pin

Please tick the check box above

1 x 4+4pin CPU +12V
3 x 4pin Molex
1 x 6+2pin PCI-E Power
1 x 6pin PCI-E Power
1 x FDD Power
4 x SATA Power

Please tick the check box above

150 x 86 x 160 mm (WxHxD)

Please tick the check box above
Customer Reviews
Rated 5 out of 5 by 5 reviewers.
Rated 5 out of 5 by I'm deaf! (Or it's silent) I can't tell ;) Truly wonderful PSU from be quiet! - As with every single one of their products it's flipping inaudible! :D Talking impossibly quiet! It's a really nice solid (hefty) PSU - I don't feel like it's going to explode in the near future :) Sure, it's not the best PSU in the world. Sure, it's not the cheapest 430W unit. Sure, it's *only* 80+ Bronze... But for what this is for, I don't need the wattage - I didn't want to stick a 1000W Platinum Dark Power Pro 11 in this system JUST to get a silent 80+ Platinum PSU from be quiet! :) I love this and would happily use and be quiet! product :) 26 March 2016
Rated 5 out of 5 by Absolutely Silent I have a fanless system with a "NoFan" CPU cooler and passive graphics cards and I still can't hear this PSU even in a quiet room with the door shut. It's so quiet I actually took the cover off to see if its fan was turning and it was but so slowly it wasn't making a sound. I was planning on spending the extra money on a fanless PSU but a friend recommended I check out "Be Quiet" and so I'm glad I did saved me about £50 over a fanless and is just as good. 15 March 2016
Rated 5 out of 5 by Extremely quiet PSU Have it in a well ventilated Enermax case, so if it was making any noise I would hear it easily but, not a sound. The 120mm fan runs very slowly all the time. Good value for a silent psu, when many cost much more. 18 September 2015
Rated 5 out of 5 by Great ultra quite PSU for HTPC or home server What a PSU. You will be hard pressed to find a more quieter PSU in the market. I have 2 other systems using Corsair Gold and a Seasonic silver rated one and it is quieter than both. In fact, Corsair is no comparison to this product. My whole system consisting of 6 HHD and this PSU inside Fractal Node 304 is quieter than my Humax freeview box 19 January 2015
Rated 5 out of 5 by it is realy quiet from all I have tried this power supply is the most quiet of all! 20 December 2014
