Scan code: LN138952 Manufacturer code: USB2-EXT4P

Scan USB 2.0 4 Port Extender over Ethernet

4 Port Scan USB 2.0 4 Port Extender Over Ethernet, Up to 150m Over Cat6/7 (480 Mbps), 4x USB-A Input, 1x USB-A Output

MORE INFO

Thumbnail 1 : Scan USB 2.0 4 Port Extender over Ethernet

Scan USB 2.0 4 Port Extender over Ethernet : image 1

zoom

Scan code: LN138952 Manufacturer code: USB2-EXT4P

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Order now and receive it by Tuesday, 12th December

£65.48

Add To Basket

Get it Tuesday, 12 DecIn stock

spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Delivery Options

By DPD On 12th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview

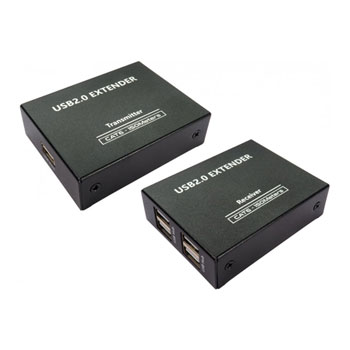

Scan 4 Port USB 2.0 Over Ethernet Extender

The USB2-EXT4P is a 4 Port USB2.0 Extender. It operates as one-to-one connection through CAT5e/6/7 Ethernet cables, with a transmission distance of up to 100m for CAT5e and 150m for CAT6 and above; When the connection passes through a Gigabit Ethernet Switch, the input and output cable lengths can reach 100m (Cat5e) or 150m (Cat6/7) respectively.

It supports 4 channels of USB 2.0 device input, such as printer, camera, scanner, USB flash drive, keyboard, mouse, touchscreen, etc., and supports Gigabit switch cascade. It can be used for security monitoring, gaming, industrial control, professional audio-visual, and other fields.

Features

• Compatibility: USB 2.0, compatible with USB1.1, USB1.0.
• Transmission Rate: High-Speed (480 Mbps), Full-Speed (12 Mbps), Low-Speed (1.5Mbps).
• Transmission Distance: CAT5e = 100m, CAT6 / 6A / 7 = 150m.
• Supports USB Hot-Plug.
• Operating System: Windows, MacOS, Linux and Android.
• 4x USB-A Input.
• 1x USB-A Output.
• Follows IEEE-568B standard.

Specifications
Interface	USB 2.0
Connectivity	5 x USB 2.0

Additional Information
Scan Code	LN138952
Model Number	USB2-EXT4P
GTIN	5055781250255
