BUNDLE

AMD Ryzen 1700X Overclocked Bundle

3XS Ryzen 7 Overclocked Bundle, AMD Ryzen 7 1700X, ASUS X370-Pro, 16GB DDR4, Corsair H100i

Scan 3XS Systems
Scan code: LN79234 Manufacturer code: R7 OC75 Request call
£789.98
Pay on Scan Finance with a 10% deposit from just £19.73 / month (APR 15.9%)
High End
Delivery options £11.50 By DPD On 14th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

Scan 3XS Ryzen 7 Overclocked Bundle X370

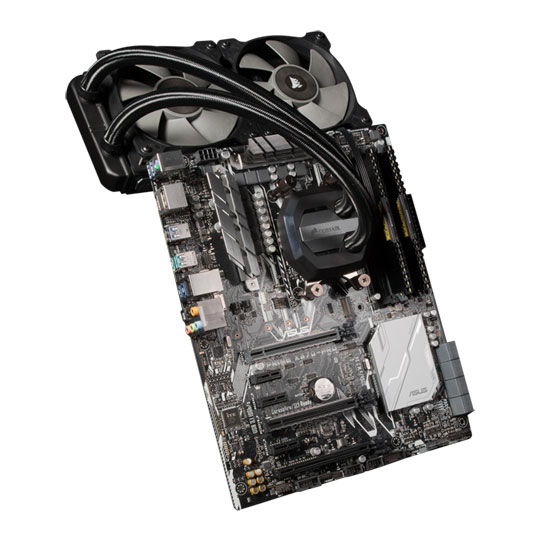

This Overclocked bundle features the latest AMD Ryzen R7 1700X Processor. The R7 1700X is a 8 Core 16 thread CPU which we overclock from 3.4GHz to 3.8GHz for great performance in all games and applications. It is kept cool by a Corsair Hydro H100i cooler and installed in an ASUS X370-Pro motherboard and accompanied by 16GB of 2400MHz Corsair Vengeance LPX DDR4.

Detailed Specifications

Component Description
Processor AMD Ryzen 7 1700X / 8 Core - Overclocked up to 3.8GHz
Motherboard ASUS Prime X370-PRO
CPU Cooler Corsair Hydro H100i
Memory 16GB Corsair Vengeance LPX DDR4 2400MHz
Warranty 2 Year Warranty - Return to Base (Parts & Labour)

WHY BUY BUILT?

3XS Bundle vs Self-Built

Anyone can build a PC, so what really makes the benefit of a 3XS bundle? For starters, our team has been designing and building PCs for more than 20 years, so we have a huge amount of experience in building highly reliable systems that deliver the most performance for your budget. These are the benefits you receive when buying a professionally built 3XS system versus building a system yourself.

Assembled & Overclocked

An overclocked bundle is professionally built in Scans state of the art 3XS Lab, each bundle undergoes a 24 burn test to guarantee stability. Your bundle will be shipped out fully built in a custom box which includes all the original component packaging.

No Compatibility Headaches

It can take weeks to research the right combination of components, not just to ensure you get the most bang for your buck but to minimise the chance of one component being incompatible with another. Whether you buy a system from our configurator or a custom spec system our engineers will do all this hard work for you, ensuring that when your system is delivered it performs flawlessly.

Intensively Tested

Building a bundle only takes a few minutes, but making sure that everything is configured properly and that the overclock is stable takes up a huge amount of time. By ordering a 3XS system our engineers take this painful process away, as all our systems undergo a strenuous Quality Control procedure which includes installing the latest motherboard BIOS and the aforementioned 24 hour burn test.

Peace of Mind

Unfortunately PC components do occasionally fail, and when this happens if you’ve overclocked the CPU yourself you’re on your own. However, with a professionally built Scan 3XS overclocked bundle you’re no longer alone. Your bundle is covered by a 3 year return to base warranty and our technical support team is available 7 days a week, from 9am to 10pm Mon - Fri, 10am to 6pm on Saturdays and 10am to 4pm on Sundays. Click here for more info on how to get technical support for your 3XS system.

Widely Acclaimed

Our 3XS PCs have won hundreds of awards in the press from publications such as Custom PC, Develop3D, Expert Reviews, HEXUS, PC Gamer and PC Pro. In addition 3XS has won Custom PC’s annual Dream PC competition every year it has run since 2007. You can read all our reviews here plus customer reviews on the configurator.

Specifications
Includes
Bundle Includes
  • CPU Cooler
  • Motherboard
  • Overclocked CPU
  • RAM Memory
Processor
Professionally Overclocked Yes
CPU Type AMD Ryzen™ 7
CPU Model 1700X
Overclocked CPU Speed 3.8 GHz
Overclock Performance Increase 12 %
CPU Stock Speed (Prior to OC) 3.4 GHz
CPU Socket AM4
CPU Architecture Zen
CPU Core Size 14 nm
CPU Cores 8 Core
CPU Threads 16
CPU Cache 16MB
CPU Integrated Graphics N/A
Cooler
Cooler Type All-In-One Hydro Cooler
Cooler Edition Corsair Hydro Series H100i V2
Cooler Form Factor 240mm All-In-One Hydro Cooler
Cooler Fan Configuration 2 x 120mm
Heatsink/Radiator Dimensions
RAM Memory
Memory Size 16GB (2x8GB)
Memory Model Corsair Vengeance LPX Black
Memory Type DDR4
Memory Channel Configuration Dual (2)
Memory Factory Overclocked Yes
Memory Speed PC4-19200 (2400)
Memory CAS Latency 14-16-16-31
Memory Voltage 1.2 V
Memory Cooler Anodised Aluminium Heatspreader
Memory Features
  • Black PCB
  • XMP 2.0
Motherboard
Motherboard Edition Asus PRIME X370-PRO
Motherboard Form Factor ATX
Motherboard Chipset AMD X370
Motherboard Memory Types Supported
  • DDR4
  • Non-ECC
  • Unbuffered
Motherboard Max. Memory Supported Upto 64GB (4x16GB)
Motherboard Max. Memory Speed Supported
Motherboard Supported Memory Channels Dual (2)
Motherboard SLi Support 2-Way SLi
Motherboard CrossFire Support 2-Way CrossFire
Motherboard Audio Chip Realtek S1220A 7.1 HD Audio
Motherboard Network Chip 1 x Intel® I211AT (Gigabit LAN)
Motherboard Expansions Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
Motherboard RAID Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Motherboard Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin AIO_PUMP Connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 4-pin W_PUMP+ Connector
  • 1 x 8-pin (Power)
  • 1 x Aura RGB Strip Headers
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 8 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x System panel(s) (Q-Connector)
  • 1 x TPM Header (14-1 pin)
  • 2 x USB 2.0 Header
  • 1 x USB 3.0 Header
  • 1 x USB 3.1 Header
Motherboard Rear I/O Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Front Speaker Out
  • 1 x Line In
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 5 x USB 3.0
  • 1 x USB 3.0 Type-C
  • 2 x USB 3.1 Type-A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Customers also bought
TekSpek Guides
AMD Ryzen Chipset
AMD Ryzen Chipset
Date Issued: 20th Nov 2017

AMD made waves in the premium consumer CPU market during March 2017 when it debuted Ryzen processors based on the Zen architecture that had been in development for the previous four years

Read More

AMD Ryzen Processors
AMD Ryzen Processors
Date Issued: 2nd Mar 2017

If you subscribe to the belief that competition in the marketplace is good for consumers, you should have March 2nd 2017 circled in your diary. This is the day that AMD finally unleashes its eagerly anticipated range of Ryzen CPUs.

Read More

Reviews
3XS Ryzen 7 Overclocked Bundle, AMD Ryzen 7 1700X, ASUS X370-Pro, 16GB DDR4, Corsair H100i is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Excellent build quality, and fantastic service! In the past, I would purchase parts separately and put them all together myself. This would result in a lot of frustration/trial and error as I tried to work out the correct amount of thermal paste, or tweaked the bios settings to get a decent overclock. But that's all part of the fun, right? No more! I'm glad I made the decision to purchase a bundled/professionally overclocked package. everything arrived very neatly packed and getting it into the case I had selected was a breeze! (On the case note, I might have chosen one with a window had I realised the motherboard had RGB LEDs on it's underside, but that's just cosmetics) Got everything up and running last night and it's all going smoothly so far. There was a delay on my order, because of unavailability of a part, but scan kept me updated throughout their build process, even calling and offering alternative suggestions for part. Definiely going this way for my next build!
Date published: 2017-04-06
  • y_2017, m_12, d_11, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_79234, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

With Intel Z270 boards offering a AVX offset have these overclocks been tested stable with AVX loads?

Asked by: GoogalyMoogaly
Hi, I can confirm that these bundles have indeed been tested with the AVX instruction at the maximum clock speed. Regards,
Answered by: 3XSPhil
Date published: 2017-06-24

Do you sell versions of this bundle with faster memory?

I'm looking at buying a system with specs very similar to this, and this looks great for me since i've never built a full system before, however, i am needing 3000MHz or 3200MHz memory. Is there any possibility this could be done?
Asked by: Roboroter
Hi, If you contact our sales team on 01204 474747 they will be able to put together a custom order for you. However, at this time with the current BIOS's available, we are finding the 2400MHz kit that we use the sweet spot in relation to price, performance and stability. Regards,
Answered by: 3XSPhil
Date published: 2017-06-24
