StarTech 3ft Mini DP to DVI Adapter Cable Mini DP to DVI Blk
Scan code: LN88024
Manufacturer code: MDP2DVIMM3B
End Of Life
StarTech 3ft Mini DP to DVI Adapter Cable Mini DP to DVI Blk
3Ft StarTech Mini DisplayPort to DVI Adapter Cable Mini DP to DVI Black
Scan code:
LN88024
Manufacturer code:
MDP2DVIMM3B
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview

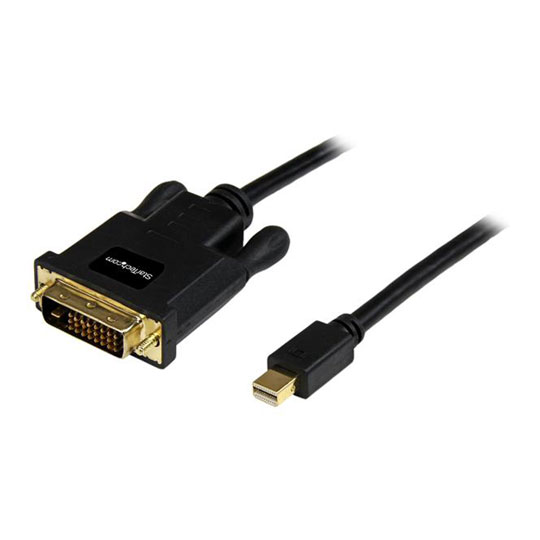

Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a short 3 foot distance, with a tidy installation – Black
The MDP2DVIMM3B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook™, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 3 feet (1 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM3B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
• Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable. Features • 1x Male Mini DisplayPort connector, 1x Male DVI connector.
• Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p.
• Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal.
Applications
• Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device.
• Ideal for using your DVI monitor as a secondary display.
Specification
Hardware
• Active or Passive Adapter: Passive
• Adapter Style: Cable Adapter
• Audio: No
• Chipset ID: NXP - 3361
• Converter Type: Cable Adapters
• Output Signal : DVI-D (DVI Digital)
Performance
• Maximum Cable: Length 0.9 m [3 ft]
• Maximum Digital Resolutions: 1920x1200 / 1080p
• Wide Screen Supported: Yes
Connector(s)
• Connector A: 1 - Mini-DisplayPort (20 pin) Male
• Connector B: 1 - DVI-D (25 pin) Male
Special Notes
• System and Cable Requirements: DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through
Environmental
• Humidity: 40%-85%RH
• Operating Temperature : 0°C to 60°C (32°F to 140°F)
• Storage Temperature: 0°C to 70°C (32°F to 158°F)
Physical Characteristics
• Cable Length: 0.9 m [3 ft]
• Colour: Black
• Product Height: 15 mm [0.6 in]
• Product Length: 920 mm [36.2 in]
• Product Weight: 75 g [2.6 oz]
• Product Width: 38 mm [1.5 in]
The MDP2DVIMM3B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (Desktop PC, Laptop, Ultrabook™, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 3 feet (1 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM3B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
• Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable. Features • 1x Male Mini DisplayPort connector, 1x Male DVI connector.
• Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p.
• Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal.
Applications
• Connect your existing DVI display device (monitor, projector) to a Mini DisplayPort output device.
• Ideal for using your DVI monitor as a secondary display.
Specification
Hardware
• Active or Passive Adapter: Passive
• Adapter Style: Cable Adapter
• Audio: No
• Chipset ID: NXP - 3361
• Converter Type: Cable Adapters
• Output Signal : DVI-D (DVI Digital)
Performance
• Maximum Cable: Length 0.9 m [3 ft]
• Maximum Digital Resolutions: 1920x1200 / 1080p
• Wide Screen Supported: Yes
Connector(s)
• Connector A: 1 - Mini-DisplayPort (20 pin) Male
• Connector B: 1 - DVI-D (25 pin) Male
Special Notes
• System and Cable Requirements: DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through
Environmental
• Humidity: 40%-85%RH
• Operating Temperature : 0°C to 60°C (32°F to 140°F)
• Storage Temperature: 0°C to 70°C (32°F to 158°F)
Physical Characteristics
• Cable Length: 0.9 m [3 ft]
• Colour: Black
• Product Height: 15 mm [0.6 in]
• Product Length: 920 mm [36.2 in]
• Product Weight: 75 g [2.6 oz]
• Product Width: 38 mm [1.5 in]
