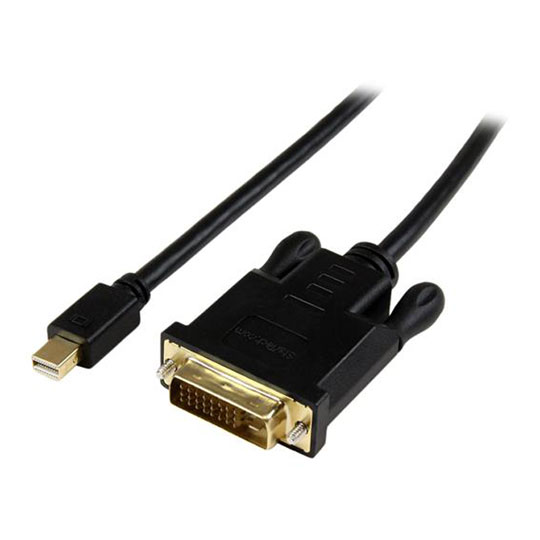

StarTech 3ft Mini DP to DVI Active Adapter Cable Thunderbolt Ready
3Ft StarTech Mini DisplayPort to DVI Active Adapter Cable - mDP to DVI
Scan code:
LN88025
Manufacturer code:
MDP2DVIMM3BS
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
- By DPD On 9th Dec To 11th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview
Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter
The MDP2DVIMM3BS 3ft active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (Laptop, Macbook®, Ultrabook™ etc.) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM3BS is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Note: This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
• Hassle-free installation with cable-style adapter enabling you to connect your Mini DisplayPort source directly to a DVI display with no additional video cable required.
• Save upgrade costs by connecting your Mini DisplayPort computer to a DVI monitor or Projector.
• Reduces clutter, with a short cable design. Features • Active Mini DisplayPort to DVI conversion.
• 1x Male DisplayPort connector, 1x Male DVI connector.
• Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal.
• Supports resolutions up to 1920 x 1200.
• Plug-and-play Installation.
Applications
• Use with single-mode Mini DisplayPort video outputs that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity video cards.
• Connect your DVI display device (monitor, projector) directly to a Mini DisplayPort output device.
• Ideal for using your DVI monitor as a secondary display.
Specification
Hardware
• Active or Passive Adapter: Active
• Adapter Style: Cable Adapter
• Audio: No
• Chipset ID: Parade - PS171
• Converter Type: Cable Adapters
Performance
• Maximum Cable Length: 0.9 m [3 ft]
• Maximum Digital Resolutions: 1920 x 1200
• Supported Resolutions: 1024 x 768, 1280 x 720, 1920 x 1080, 1920 x 1200
• Wide Screen Supported : Yes
Connector(s)
• Connector A: 1 - Mini-DisplayPort (20 pin) Male
• Connector B: 1 - DVI-D (25 pin) Male
Special Notes
• System and Cable Requirements: Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
This adapter is not compatible for use with the Apple Cinema Display.
Environmental
• Humidity: 40%-85%RH
• Operating Temperature : 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -10°C to 70°C (14°F to 158°F)
Physical Characteristics
• Cable Length: 0.9 m [3 ft]
• Colour: Black
• Product Height: 15 mm [0.6 in]
• Product Length: 920 mm [36.2 in]
• Product Weight: 93.2 g [3.3 oz]
• Product Width: 40 mm [1.6 in]
