Scan code: LN125655 Manufacturer code: SSDPF2NV307TZN1

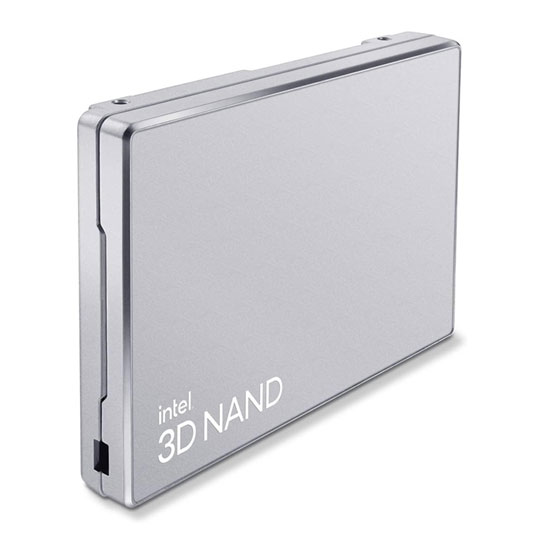

Intel D5 P5316 30.7TB 2.5" U.2 PCIe 4.0 x4 SSD/Solid State Drive

30.7TB Intel D5 P5316, 2.5" U.2 Enterprise SSD, PCIe 4.0 x4, 3D QLC NAND, Read 7000MB/s, Write 3600MB/s, 800k IOPS

Scan code: LN125655 Manufacturer code: SSDPF2NV307TZN1
Call for price
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview

Unlock The Value Of Stored Data

Based on PCIe 4.0, the SSD D5-P5316 not only accelerates legacy HDD-based systems but also prior generation Intel SSD-based systems. Compared to HDDs, Intel's newest SSD can accelerate access to stored data by up to 25x1 while performance optimizations bring up to 2x higher sequential read performance, up to 38% higher random read performance, up to 48% better latency, and up to 5x higher endurance versus the previous generation Intel SSD family. In addition to increased performance, the Intel SSD D5-P5316 offers storage footprint consolidation with up to 20x reduction of warm storage footprint. Storage consolidation enables further operational savings, including power consumption, cooling costs, drive replacement, and technician support.


Accelerate A Range Of Data Center Workloads

The SSD D5-P5316 is designed from the ground up to optimize and accelerate storage in a range of Data Center workloads including but not limited to Content Delivery Network (CDN), Hyper Converged Infrastructure (HCI), Big Data, Artificial Intelligence (AI), Cloud Elastic Storage (CES) and, High Performance Computing (HPC). Key architectural improvements accelerate a broad range of read workloads as well as large block sequential/random writes, while maintaining fast response time SLAs. The SSD D5-P5316 can support all write sizes with a Quality of Service improvement scheme that maintains low read latency under write pressure.


NAND Technology Industry Leader

Intel's 144-layer 3D NAND technology delivers industry-leading areal density and data retention, enabling enterprise customers to confidently scale storage arrays to meet their growing needs. The swift adoption of software-defined and hyperconverged infrastructures increases the requirement to maximize efficiency, revitalize existing hardware, and increase server agility - all while maintaining operational reliability.


Features


• The Intel SSD D5-P5316 includes numerous firmware enhancements specifically optimized for both enterprise and cloud workloads to deliver better latency.
• 4 expanded management capabilities, and critical new NVMe features.
• NVMe 1.3c and NVMe-MI1.0a- compliant.
• Scatter Gather List (SGL) removes the need to double-buffer host data.
• Persistent Event Log exposes deeper drive history for debugging at scale.
• Designed to enhance security with AES-256 Hardware Encryption, NVMe Sanitize, Firmware Measurement.
• Telemetry makes a wide range of stored data accessible and includes intelligent error tracking and logging.

Specifications
Capacity
Edition D5-P5316
Form Factor
Height 15 mm
Interface PCIe 4.0 (x4)
Host Controller Interface NVMe
Controller
Flash Memory Type Intel QLC 3D NAND
Max. Read 7000 MB/s
Max. Write 3600 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 800000 IOPS
Max. Random Write 4K
Latency N/A
Special Features
  • AES 256-bit Hardware Encryption
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • UBER: <1 sector per 10^17 bits read
Power Consumption (active) 25 W
Max. Endurance Rating 104.55 PBW
MTBF 2000000 Hours
Max. Operating Vibration 2.17 G
Max. Non-operating Vibration 3.13 G
Max. Operating Shock 1000 G (0.5ms)
Max. Non-operating Shock
Connectivity
  • 1 x PCIe 4.0 (x4)
  • 1 x U.2
OS Support
Bracket N/A
Dimensions
Weight
Package Type Retail
Additional Information
Scan Code LN125655
Model Number SSDPF2NV307TZN1
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
