Scan code: LN106087 Manufacturer code: SSP-300SFB

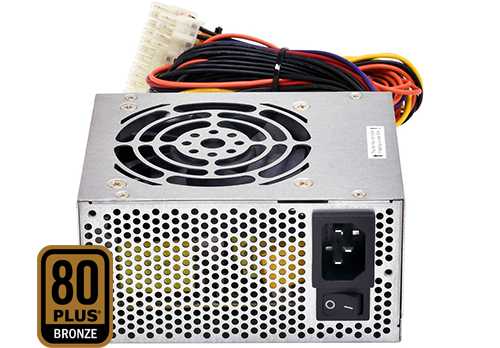

Seasonic SFX SFB 300W Fully Wired 80+ PSU/Power Supply

300W Seasonic SFX SFB, Fully Wired, 80PLUS Bronze, Single Rail, 36A, SFX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Seasonic SFX SFB 300W Fully Wired 80+ PSU/Power Supply Thumbnail 2 : Seasonic SFX SFB 300W Fully Wired 80+ PSU/Power Supply Thumbnail 3 : Seasonic SFX SFB 300W Fully Wired 80+ PSU/Power Supply
Scan code: LN106087 Manufacturer code: SSP-300SFB
£34.99
Add To Basket
In stock
Order now and get it tomorrow, Fri 30th Jul
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Frequently Bought Together

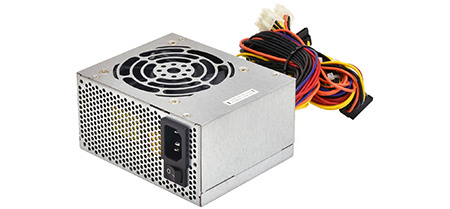

SFB SFX 300 Watt Power Supply from Seasonic

PRIME TX 1000 Watt

EFFICIENT AND PRECISE POWER FOR YOUR PC This industrial power supply is SFX 12 V v.2.31 compliant and offers important protection features for safe operation. With its 80 PLUS® Gold rating, it can achieve up to 85 % efficiency at 115 V AC at 50 % load. This is the ideal solution for both businesses and consumers who are looking for a high quality and efficient SFX Power Supply for their systems.

300Watts

80 PLUS BronzeCertification

SFXForm Factor

Features of the SFX SFB

4K Recording

SFB POWER SUPPLY • SFX 12V.
• 80 PLUS Bronze Certified.
• Safety: CB, cUL, TUV, CCC, BSMI
• EMI/EMC: CE, FCC, RCM
• Dimension (LxWxH): 100 x 125 x 63.5mm.

Overview of the SFB SFX PSU

SFB PSU
80 PLUS Bronze
Intel form factor compliance Yes
Dimensions 100 mm (L) x 125 mm (W) x 63.5 mm (H))
DC to DC Converter Design No
Forward Converter Circuit Yes
Fixed Cables Yes
80 mm Double ball bearing Fan Yes
S3FC - including Fanless Mode Yes
S2FC - Smart and Silent Fan Control No
Zero Minimum load on 3.3 V Rail No
Short Circuit Protection on all Outputs Yes
Over Voltage Protection Yes
Over Power Protection Yes
100 % HiPot Test Yes
100 % Burn-in, High temperature Cycled on/off Yes
Safety Compliance CB, cUL, TUV, CCC, BSMI
EMI/EMC Compliance CE, FCC, RCM
Specifications
Size SFX
Edition SFB SFX 300W
Wattage 300 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 80 %
Cooling Fan
Fans
Internal +12V Rails Dual Rail
Rail 1 +12V 18 A
Rail 2 +12V 18 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V N/A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V No
Motherboard Connector 24-pin
Connectors
  • 1 x 4-pin ATX 12V
  • 1 x 4-pin Molex
Dimensions 125 x 63.5 x 100mm (WxHxD)
Package Type Retail
Additional Information
Scan Code LN106087
Model Number SSP-300SFB
GTIN 4711173873518
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
