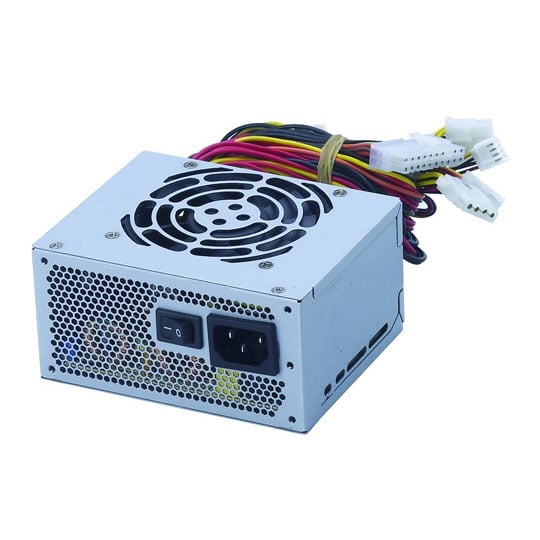

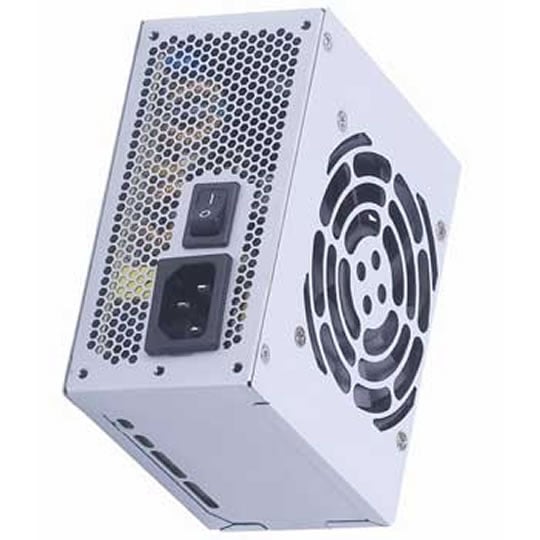

FSP 300W micro-ATX Power Supply

300W FSP micro-ATX 80PLUS, 80mm Quiet Fan 20+4 Pin ATX 2.03V ATX12V, PSU

FSP
Scan code: LN11784 Manufacturer code: FSP300-60GHS Request call
£34.99Item currently awaiting an ETA
Pre order
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Suggested alternatives
Product Overview New 80Plus Version - Upto 85% Efficiency -

PC Power Supply 90V-264vAC input 300Watts. TYPE FSP300-60GLS(80). Complied with the specification of Intel ATX 2.03V ATX12V 1.1V (Pentium 4) and AMD Athlon. Providing "Active Power Factor Correction" function reduces energy wastage to an absolute minimum. New 80 plus efficiency for reduced power losses.

+5VSB reaches 2 AMP, enable for system suspend to RAM
20 way + 4 way ATX connector means this psu is suitable for 20 or 24 way motherboards

Features
o High efficiency
o Low ripple & noise
o Output over voltage protection
o Short circuit protection on all outputs
o Re-settable power shut down
o Internal 8 cm fan
o 100% burn-in under high ambient temperature (50°C)
o MTBF: 100K hours at 25°C
o Active PFC (Power Factor Correction) circuit
Specifications

Efficiency: 80%+ Features Input Specifications
o Voltage: Full Range Input
o Frequency: 47Hz - 63Hz.
o Input current: 4.0 amps maximum / 115 Vrms;
2.0 amps maximum / 230 Vrms.

Output Specifications
o Over-voltage protection: +12V : 15.6V(maximum);
+5V : 7.0V (maximum);
+3.3V : 4.8V (maximum)
o Over-current protection: +3.3V : 45A maximum;
+5V : 45A maximum;
+12V1 DC : 22A maximum;
+12V2 DC : 22A maximum.
o Remote ON/OFF control: The power supply shall accept a logic collector level which
will disable / enable all output voltage (excluding +5V standby).
o Power good signal: 115/230V (full load) : 100 - 500 ms

Safety Certificates: UL, CSA, TUV, NEMKO & CB
Specifications
Specifications
Size Micro ATX
Edition
Wattage 300 W
80 PLUS Certification 80 PLUS
Max. Efficiency 80 %
Cooling Fan
Fans
Internal +12V Rails Dual Rail
Rail 1 +12V 14 A
Rail 2 +12V 16 A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 30 A
Modular No
Modularity
SLI/CrossFire No
EPS 12V No
Motherboard Connector 20+4 Pin
Connectors
  • 1 x 4pin ATX 12V
  • 3 x 4pin Molex
  • 1 x FDD Power
  • 2 x SATA Power
Dimensions 125 x 63 x 100 mm (WxHxD)
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

Additional Notes:
1 year warranty, return to Scan subject to manufacturer's warranty.

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.
