300 GB Western Digital WD3000GLFS VelociRaptor, SATA 300, 10000 rpm, 16MB Cache, 4.2 ms, NCQ
Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache, to deliver performance that’s up to 35% faster than its speedy older brother.

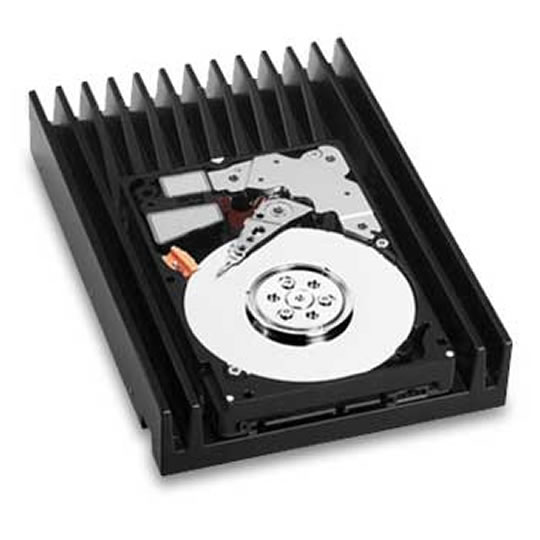

VelociRaptor is actually two 2.5-inch 150GB platters housed in a 3.5-inch "IcePack" mounting frame. The spacious chassis sports a built-in aluminum heat sink to help negate the need for additional cooling. It also doubles as a mounting adapter to fit the disks in a more traditional 3.5-inch internal slot size.
The VelociRaptor unit's speed magic comes via an average write seek time of 4.7 milliseconds and a read seek time of 4.2 milliseconds. The interface is 3Gb/s SATA, and has a mean time between failure at 1.4 million hours, in theory placing it at the top of the SATA heap in terms of reliability.
This Drive Holds:
Up to 85,700 digital photos
Up to 75,000 songs (MP3)
Up to 7,500 songs (uncompressed CD quality)
Up to 23 hours of Digital Video (DV)
Up to 130 hours of DVD quality video
Up to 36 hours of HD video Features Killer Speed - Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35 percent faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.
Rock-solid Reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.
Double the Capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive. (Not compatible with notebook computers)
IcePack™ Mounting Frame - The 2.5-inch WD VelociRaptor is enclosed in a 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.
Rotary Acceleration Feed Forward (RAFF™) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
SecurePark™ - Parks the recording heads off the disk surface during spin up, spin down and when the drive is off. This ensures the recording head never touches the disk surface resulting in improved long-term reliability and increased drive protection when the chassis is moved.
Performance enthusiast systems, workstations, and low-end servers
• Windows Vista/XP/2000
• SATA interface connector on motherboard or SATA host controller*
• Available 3.5-inch internal drive bay
• Compatibility may vary depending on user’s hardware configuration and operating system.
• 3 Gb/s SATA hard drive
• WD SATA interface cable
• Quick Install Guide
• Mounting screws
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 60 months
- DOA Period:
- 28 days
- RTB Period:
- 12 months
- WESTERN DIGITAL
Subject to, 5 years manufacturer's warranty.
