Samsung 980 PRO MZ-V8P2T0 2TB M.2 PCIe 4.0 Gen4 NVMe SSD with Pro Heatsink for PC/PS5 SCAN EXCLUSIVE
2TB Samsung 980 PRO MZ-V8P1T0BW + iCold-007 HeatSink, M.2 PCIe NVMe SSD, 7000MB/s Read, 5000MB/s Write, PS5 Compatible
2TB Samsung 980 PRO NVMe M.2 SSD with Xclio xCold Pro M.2 Heatsink for PC & PS5
Release the potential of the Samsung SSD 980 PRO, Samsung’s first consumer PCIe 4.0 NVMe SSD, for superior computing experiences. Designed for graphics-intensive games and heavy-duty applications, the 980 PRO leverages Samsung’s custom controller and PCIe 4.0 to provide double the data transfer rate of PCIe 3.0, while backward compatibility and its compact M.2 form factor provide versatility and flexibility for various high-performance computing solutions in capacities of 250GB, 500GB, 1TB, or 2TB.
Optimised Power for High-End Systems
Designed with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics and more. It's fast at loading games, so you can play more and wait less.
* Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated. The sequential write performances after Intelligent TurboWrite region are: up to 500 MB/s(250GB), 1,000 MB/s(500GB) and 2,000 MB/s(1TB). * Test system configuration: AMD Ryzen 9 3900X 12-Core Processor [email protected], DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA* Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.* To maximize the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
Durable Nickel Coating
Thanks to its robust nickel coating, it helps manage the controller's heat level and includes a heat spreader label to deliver effective thermal control of the NAND chip.
Dynamic Thermal Guard
Embedded with Samsung's cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver a reliable performance. To diminish performance fluctuations in the long haul, Samsung's Dynamic Thermal Guard technology maintains the 980 PRO's temperature at optimal levels.
Optimised Power for High-End Systems
The 980 PRO comes in a compact M.2 2280 form factor, which can be easily plugged into desktops and laptops for maximum board design flexibility. The drive is suitable for building high-performance computing systems due to its optimised power efficiency.
Unlock the Full Power of the 980 Pro
Samsung Magician's intuitive yet advanced optimization tools can monitor drive health, optimize performance, protect valuable data and receive important updates to ensure you're always getting the best performance out of your SSD.
Xclio xCold M2 PRO M.2 2280 Heat Sink Cooling Kit (LN128442)
Your M.2 SSD may get hot and throttle back on the data rate. This M.2 SSD heatsink effectively reduces SSD temperature by upto 40% by dissipating heat to help maintain system stability.
With double-sided clip design, 6 adjustable height screws, and 2 spare screws are suitable for M.2 NVME SSD of various heights, stable installation, better protection of your M.2 SSD with great heat dissipation performance.
This Xclio Passive cooling kit consists of a black hi-grade aluminum heatsink with thermal pads and a screwdriver.
Made from Nano Silicon Grease Material, with good thermal conductivity ability. Soft enough and good ductility, compatible with uneven surfaces of the M.2 SSD. Low viscosity, with no damage to the M.2 SSD.
It also asthetically improves your system in hiding your green or red or orange bare PCB SSD to all Black.

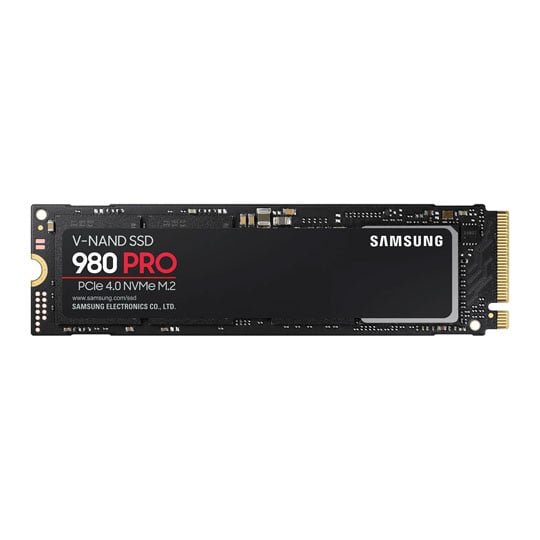

2TB Samsung 980 PRO NVMe M.2 SSD:
• PCIe 4.0 NVMe Interface.
• Superfast Speeds.
• Intelligent Turbowrite.
• Temperature Control.
• Drive Health & TBW Check.
• Performance Benchmark.
• Performance Optimization.
• Encrypted Drive.
• Firmware Update.

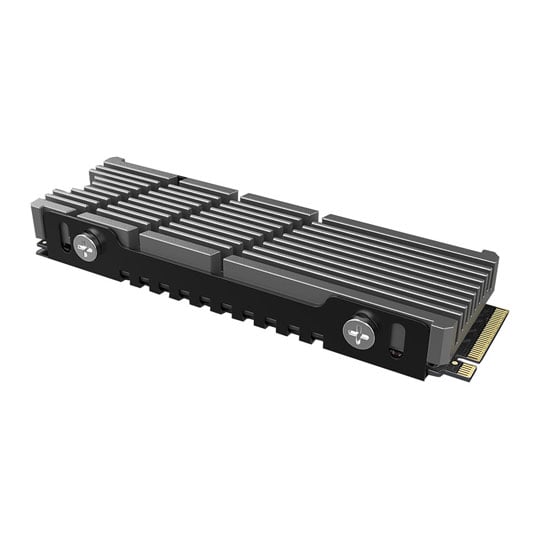

Xclio xCold M.2 PRO Heat Sink Cooling Kit:
Reduces M.2 SSD heat between 15 to 40 degrees and enhances performance and logivity of your SSD & also improces the asthetics of your PC system and the No.1 choice for PS5 Console
Compatible with Singel/Double sided M.2 NVME NGFF SSD 22x80
Supports standard M.2 Next Generation Form Factor (NGFF) 2280 single sided type SSDs, SATA and NVMe
Three Nano Silicon Thermal conductive adhesive Pads
Aluminum body, Anodic Oxidation Surface Treatred
Contents
Mini Screwdriver
Flat Screws for heatsink
10x Thermal Blue Square pads 0.8mm Thickness (for resting on top of the SSD Chips)
1x Blue Thermal Pad 1mm Thickness (for resting on top full length of the SSD)
1x Red Thermal Pad 0.5mm Thickness (for resting on the Bottom of the SSD)
*Please note when installing the thermal gum please remove the protective plastic cover
1) Using the 10 squares stick + 1 Thinner Long strip
a) Place the red or pale blue strip (Please note this is the thinnest Strip) on the bottom/underside of the M.2 SSD
b) Place Little square pads 3 or 5 units depending on amount of chips (from the 10 units in the pack) covering the chips and leave spaces on the PCB where there is no chip
c) Place the SSD with the screw notch matching the screw notch into/onto the tray while the XCILO is facedown
d) Place the heat sink smooth face down resting on top of the SSD little blue pads again matching the screw hole notch creating a type of sandwich then hold firmly while you screw the screws in to lock it all together - job done ready for PS5 installation
2) Use just the two long strips (Fat one top, Thin one bottom)
a) Place the Red (or pale blue strip) Please note this is the thinnest Strip on the bottom/underside of the M.2 SSD
b) Place the Blue (fatter Strip) on the top Side of the M.2 SSD covering the length of the SSD
c) Place the SSD with the screw notch matching the screw notch into/onto the tray while the XCILO is facedown
d) Place the heat sink smooth face down resting on top of the SSD with the blue strip matching the screw hole notch creating a type of sandwich then hold firmly while you screw the screws in to lock it all together - job done ready for PS5 installation
