Scan code: LN98279 Manufacturer code: T2600G-28SQ

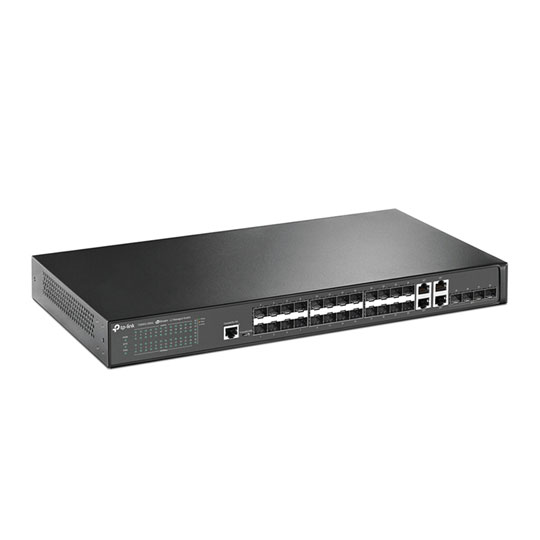

TP-LINK 24-Port Jetstream Gigabit L2 Switch With 4x SFP

28 Port TP-LINK JetStream T2600G-28SQ Gigabit SFP L2 Managed Switch, 24x Gbe SFP, 4x GbE Combo, 4x 10G SFP+, RJ45

Thumbnail 1 : TP-LINK 24-Port Jetstream Gigabit L2 Switch With 4x SFP Thumbnail 2 : TP-LINK 24-Port Jetstream Gigabit L2 Switch With 4x SFP Thumbnail 3 : TP-LINK 24-Port Jetstream Gigabit L2 Switch With 4x SFP
Scan code: LN98279 Manufacturer code: T2600G-28SQ
£443.99
From £18.50 / month (APR 0%)
Monthly Payment: £74.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £443.99
Monthly Payment: £37.00
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £443.99
Monthly Payment: £24.67
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £443.99
Monthly Payment: £18.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £443.99
Total inc. interest: £443.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.09 / month (APR 15.9%)
Delivery Options
  • By DPD On 10th Dec To 12th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview TP-Link's JetStream T2600G-28SQ provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. With 24 gigabit SFP slots, 4 10/100/1000 Mbps RJ45 ports and 4 10G SFP+ slots, T2600G-28SQ ensures a highly stable and high-speed network environment. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitates network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2 managed Switches T2600G-28SQ provides a reliable, secure solution for enterprise, campus and ISP networks.

Secure Networking
The T2600G-28SQ provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS/Tacacs+ server to require some authentication information before access to the network is allowed.

Advanced QoS features
To integrate voice, data and video service on one traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant L2 and L2+ features
T2600G-28SQ supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loopback Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T2600G-28SQ supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

ISP Features
T2600G-28SQ supports a bundle of ISP features such as 802.3ah OAM, DDM, sFlow, QinQ, L2PT PPPoE ID Insertion, IGMP authentication etc. 802.3ah OAM and Device Link Detection Protocol (DLDP) functions improve monitor and troubleshoot Ethernet networks, help facilitate network management. DDM(Digital Diagnostic Monitoring) function helps view the status of SFP modules inserting to the Switch and to configure alarm settings, warning settings, temperature threshold settings, voltage threshold settings, bias current threshold settings, TX power threshold settings, and RX power threshold settings.

IPv6 Support
T2600G-28SQ series support various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment.

Enterprise Level Management Features
T2600G-28SQ is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. Features • Gigabit fibre connections and 10G SFP+ fibre slots provide more than enough bandwidth and stability for hi-speed data transferring.
• L2+ feature Static Routing, helps route internal traffic for more efficient use of network resources.
• IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies.
• L2/L3/L4 QoS and IGMP snooping optimize voice and video application.
• IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbour discovery.
• Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.
Specifications
Edition JetStream
Form Factor
Total Network Ports
  • 4 x 10/100/1000 (Gigabit) RJ-45
  • 24 x SFP
  • 4 x SFP+
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
  • 1 x Console (RJ45)
  • 1 x Micro-USB Console
Switching Capacity
Non-Blocking Throughput
Forwarding Rate 95.2
MAC Address Table Size 16k Entries
Network Capacity 4000 Active VLANs
Built-in Flash Memory
RAM Memory
Network Protocols
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3az
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
Acoustic Noise
Max. Power Consumption 29.67 W
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply Internal AC Power Supply
Material
Includes Rack Mounting Brackets
Dimensions (WxHxD) 440 x 44 x 220 mm
Weight
Additional Information
Scan Code LN98279
Model Number T2600G-28SQ
GTIN 6935364099961
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
