Scan code: LN93617 Manufacturer code: VCQRTX6000-PB

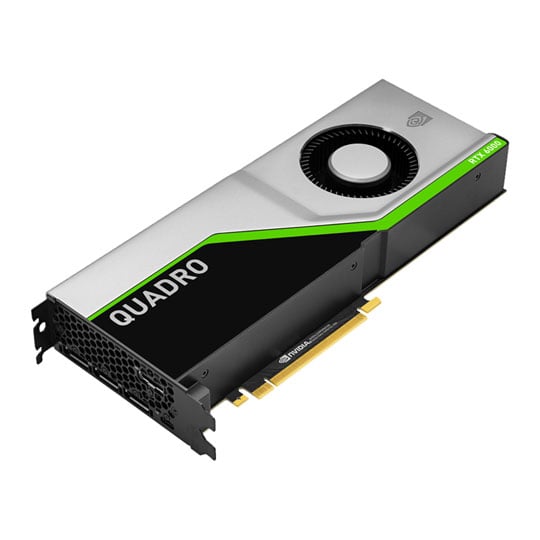

NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card

24GB PNY NVIDIA Quadro RTX 6000, Turing, 4608 CUDA, 576 Tensor, 72 RT Cores, GDDR6, 16.3 TFLOPS FP32, DP/VirtualLink

Thumbnail 1 : NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 2 : NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 3 : NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card Thumbnail 4 : NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 1 NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 2 NVIDIA Quadro RTX 6000 24GB GDDR6 Turing Ray Tracing Workstation Graphic Card : video thumbnail 3
Scan code: LN93617 Manufacturer code: VCQRTX6000-PB
£4,435.99
With a 10% deposit from just £110.79 / month (APR 15.9%)
Delivery Options
  • By DPD On 12th Dec To 16th Dec to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview NVIDIA Quadro RTX 6000: Real Time Ray Tracing for Professionals
NVIDIA® Quadro RTX™ 6000, powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, brings the most significant advancement in computer graphics in over a decade to professional workflows. Designers and artists can now wield the power of hardware-accelerated ray tracing, deep learning, and advanced shading to dramatically boost productivity and create amazing content faster than ever before. Equipped with 4608 CUDA cores, 576 Tensor cores, 72 RT Cores and massive 24 GB GDDR6 memory, Quadro RTX 6000 can render complex models and scenes with physically accurate shadows, reflections, and refractions to empower users with instant insight. Support for NVIDIA NVLink enables applications to scale memory and performance with multi-GPU configurations. And with the industry’s first implementation of the new VirtualLink®6,Quadro RTX 6000 provides connectivity to the next-generation of high-resolution VR headmounted displays to let designers view their work in the most compelling virtual environments possible.

Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.

NVIDIA Turing GPU Architecture
World's most advanced GPU with the all-new RT Cores for ray tracing, 576 Tensor Cores for deep learning, and 4,608 NVIDIA CUDA® cores for parallel computing.

Next-Gen Memory
Equipped with industry-first 24 GB of ultra-fast GDDR6 memory to hold complex designs, massive architectural datasets, 8K movie content, and more.

NVIDIA NVLink™
Links two GPUs with a high-speed interconnect to scale memory capacity to 48 GB and drive higher performance with up to 100 GB/s of data transfer.

VirtualLink™
Industry-first implementation of VirtualLink to simplify connectivity to current and next-generation high-resolution VR head-mounted displays. Features • Four DisplayPort 1.4 Connectors.
• DisplayPort with Audio.
• 3D Stereo Support with Stereo Connector.
• NVIDIA GPUDirect™ Support.
• Quadro Sync II Compatibility.
• NVIDIA nView® Desktop.
• Management Software.
• HDCP 2.2 Support.
• NVIDIA Mosaic.
• VirtualLink Connector.

Includes:
• NVIDIA Quadro RTX 6000 Professional Graphics Board.
• Printed Support Guide.
• Printed Quick Start Guide.
• 8-Pin Auxiliary Power Cable.
• One DP to DVI-D SL Adapter.
• One DP to HDMI Adapter.

Warranty and Support:
• 3-Year Warranty.
• Pre- and Post-Sales Technical Support.
• Dedicated Field Application Engineers.
• Direct Tech Support Hot Lines.
Specifications
Key Specifications
Graphics Chipset Quadro RTX 6000
Edition
Manufacturing process 12 nm
Microarchitecture Turing
GPU Name 1x TU102GL
Cores & Clocks
NVIDIA CUDA Cores 4608
Core Clock 1335 MHz
Boost Clock
Video Memory (VRAM)
Memory Size 24 GB
Memory Type GDDR6
Memory Clock 1750 MHz
Memory Bit Rate 384 Bit
Memory Bandwidth 672 GB/s
ECC Technology Yes
Cooling
Cooling Single Fan (1)
I/O & Connectivity
Interface PCIe 3.0 (x16)
Interface Bandwidth
Graphics Output
  • 1 x 3-pin Stereo Audio Connector
  • 4 x DisplayPort 1.4
  • 1 x USB Type-C (VirtualLink)
Visuals
Multi GPU Support 2-Way NVLink
NVLink Support Upto 2x Quadro RTX 6000 GPUs via NVLink
Total NVLink Bandwidth 100 GB/s
Microsoft DirectX Support 12 API with Feature Level 12.1
HDCP Ready Yes
Multi Monitor Support 4 Displays
Concurent Users N/A
H.264 1080p30 Streams N/A
Maximum Digital Resolution 7680x4320 @ 60Hz (8K UHD)
Maximum VGA Resolution N/A
Supported Graphics APIs
  • DirectX 12.0
  • DirectX 12.0 (12.1)
  • OpenCL 1.2
  • OpenGL 4.5
  • OpenGL 4.6
  • Shader Model 5.1
  • Vulkan 1.0
  • Vulkan 1.1
Compute Performance
Supported Compute APIs
  • CUDA
  • DirectCompute
  • OpenCL
Single Precision (FP32) Processing Yes
Single Precision (FP32) Performance 16.3 teraFLOPS
Double Precision (FP64) Processing Yes
Double Precision (FP64) Performance 0.509 teraFLOPS
Tensor Processing Yes
Deep Learning (Tensor) Performance 130.5 teraFLOPS
NVIDIA Tensor Cores 576
Integer Operations (INT8)
Ray-Tracing
NVIDIA RT Cores 72
RTX-OPS 84T
Rays Cast 10 Giga Rays/Sec
Power & Thermals
Graphics Card Power Connectors 1 x 8-pin PCIe
Board Power 295 W
Minimum Recommended PSU
Maximum GPU Temperature
Physical
Form Factor Dual Slot
Low Profile Compatible No
Low Profile Support N/A
Dimensions 111.76 x 266.7 mm
Package Type Retail
Additional Information
Scan Code LN93617
Model Number VCQRTX6000-PB
GTIN 3536403366926
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
24 months
