Scan code: LN84397 Manufacturer code: AP240GAS2242

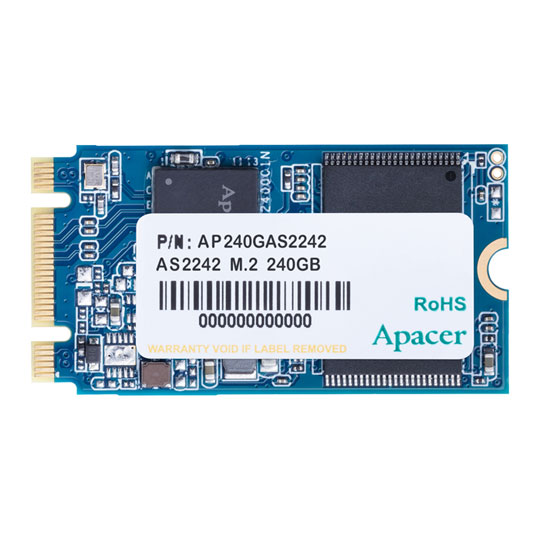

APACER 240GB Mini 2242 M.2 SATA Ultra Compact SSD/Solid State Drive

240GB Apacer AS2242, M.2 (2242) SSD, SATA 3.0 (6Gb/s), MLC NAND Flash, 460MB/s Read, 310MB/s Write

Scan code: LN84397 Manufacturer code: AP240GAS2242
£80.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 14th Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Apacer AS2242 Speedy and Reliable Companion for PC and Notebooks
Apacer’s AS2242 is the next generation modularized Solid State Drive (SSD) with the shape of all new M.2 form factor, aimed to be the more suitable for mobile and compact computers. AS2242 appears in M.2 2242 mechanical dimensions and is believed to be the leading add-in storage solution for future host computing systems. M.2 is designed with SATA-based connector pinouts, providing full compliance with the latest SATA Revision 3.2 interface specifications. Aside from SATA compliance, AS2242 delivers exceptional performance and power efficiency. On the other hand, the extreme thin and light form factor makes AS2242 the ideal choice for mobile computing systems, which appears to be the trend in near future. AS2242 supports wear levelling, S.M.A.R.T. and NCQ command. In addition, to enhance data integrity, AS2242 is built with a powerful ECC engine in the controller unit, correcting up to 72bit per 1K Byte data. For better I/O performance, the controller unit comes with a SDR cache buffer and data processing units to strengthen the IOPS (Input Output Per Second) of the device, proving to be the ideal companion for PC and laptop users. Features • Compatible with SATA 6.0 Gb/s interface.
• Outstanding read/write performance.
• Supports SATA Power Management.
• Powerful ECC engine correcting upto 72bit/1KB.
• SDR cache buffer for strengthened I/O efficiency.
• Supports S.M.A.R.T. commands.
• NCQ command.
• Over-Provision.

Ideal for:
• PC/NB for general storage.
• Operating systemboot drive for PC/NB.
• Network servers.
• Industrial PCs.
• Graphic and video applications.
• Kiosk, POS and automation.
• Multimedia.
• Gaming.
Specifications
Capacity 240GB
Edition AS2242
Form Factor M.2 (2242)
Height 3.8 mm
Interface SATA 3.0 (6Gb/s)
Host Controller Interface AHCI
Controller
Flash Memory Type MLC NAND Flash
Max. Read 460 MB/s
Max. Write 310 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K
Max. Random Write 4K
Latency N/A
Special Features
  • ECC upto 72bit/1KB
  • Native Command Queuing (NCQ) Support
  • Over-Provision
  • Power Failure Management
  • S.M.A.R.T Support
  • SATA Power Management
  • TRIM Support
  • Wear Leveling
Power Consumption (active) 1.06A
Max. Endurance Rating 634 TBW
MTBF 1,000,000 Hours
Max. Operating Vibration
Max. Non-operating Vibration 20Hz~80Hz/1.52mm 80Hz~2000Hz/20G
Max. Operating Shock
Max. Non-operating Shock 1500G/0.5msec
Connectivity 1 x M.2 (SATA)
OS Support Windows OS
Bracket N/A
Dimensions 22 x 3.8 x 42 mm (WxHxD)
Weight
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

Additional Notes:
3 Years Manufacturers Warranty

Loading Please Wait

Please wait . . .

TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

Reviews
240GB Apacer AS2242, M.2 (2242) SSD, SATA 3.0 (6Gb/s), MLC NAND Flash, 460MB/s Read, 310MB/s Write is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Excellent - Used in Lenovo X270 for drive expansion This drive is suitable for fitting into the WWAN slot on the Lenovo X270, and I believe also some of their other models capable of accepting the M.2 2242 form factor. Fitting was straight forward, although you need to have the little lever tool to remove the back of the laptop once the screws are removed. Just remember to remove the battery first, and follow the handling precautions for ESD devices. I have linux on my machine - following installation, partition the drive with fdisk, then add the file system of your choice (in my case ext4). Finally add a mount point in /etc/fstab, and mount it. I moved my home partition onto this drive, freeing up more space for the system on the original ssd drive.
