IPC Server 1U-K-125L Server Case w/o Power Supply

1U IPC 1U-K-125L Server Case w/o PSU, Supports 2x 2.5" Int HDD/1x 3.5 Int HDD, 3x 40mm Fans, 2x USB 3.0, I/O Shield
MORE INFO
MORE INFO

Scan code: LN146986 Manufacturer code: 88887085
£49.99
£5.48 Next day delivery
Item due on 20 July 2026
Pre Order
Due 20th Jul
Pay in 3 interest-free payments of £16.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

Product Overview

IPC 1U-K-125L Server Case

The 1U K-125L is the perfect rack for a small and cost-effective server system.

Its compact design and its small installation depth of 250mm for ITX boards allows this case to fit in to nearly every rack.

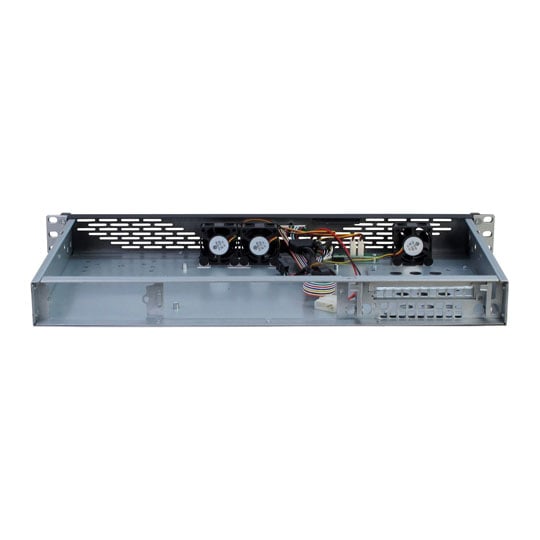

The 1U K-125L provides internal space for optional 1x 3.5" or 2x 2.5" hard drives. Three standard 40mm fans, which are internally mounted behind the front panel, ensure a reliable and optimal cooling.

In the front are two USB 3.0 ports next to the controls.

Features


• Form factor: Mini ITX.
• Height CPU cooler (max.): 32mm.
• Length graphics card (max.): 170mm.
• 3.5" internal: 1x.
• 2.5" internal: 2x.
• USB 3.0: 2x.
• 3x 40mm fan included.
• IPC I/O Shield 8 (Universal for cut out).
• USB 3.0 intern as block connector.


Specifications
Core Chassis Specifications
Case Edition 1U-K-125L
Case Form Factor 1U Rackmount
Motherboard Form Factor Mini-ITX
Back Connect Compatible No
I/O, Bays & Expansion
Front/Side/Top Panel I/O
  • 3 x HDD Activity LED
  • 1 x Power Button
  • 1 x Power LED
  • 1 x Reset
  • 1 x System Overheat / Fan Fail LED
  • 2 x USB 3.0
Drive Bays
  • 2 x 2.5" Internal
  • 1 x 3.5" Internal
Standard Expansion Slots
Vertical Expansion Slots
Fans & Filters
Fan Bays 3 x 40mm
Fans Included 3 x 40mm
Fan Controller/Hub
Dust Filters
Liquid Cooling Support
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Clearances
Max CPU Cooler Height 32 mm
Max GPU Card Length 170 mm
Cable Routing Space
Side Panels
Window/s No
Window Configuration
Window Construction
LED Lighting Functionality
LED Lighting No
LED Lighting Emitters
LED Lighting Colour
LED Lighting Support & Control
Power Supply Compatibility
PSU Included No
PSU Wattage (If Included)
PSU 80+ Rating (If Included)
PSU Support FlexATX
PSU Mounting Location
Max PSU Length
Chassis Physical Specifications
Colour Black/ Silver
Chassis Construction Materials Steel
Front Panel Type Plastic
Dimensions 482 x 44.5 x 278 (WxHxD mm)
Weight 2.79 kg (Approx)
Package Type
Please Note
Additional Information
Scan Code LN146986
Model Number 88887085
GTIN 4260133125711
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204-474747
