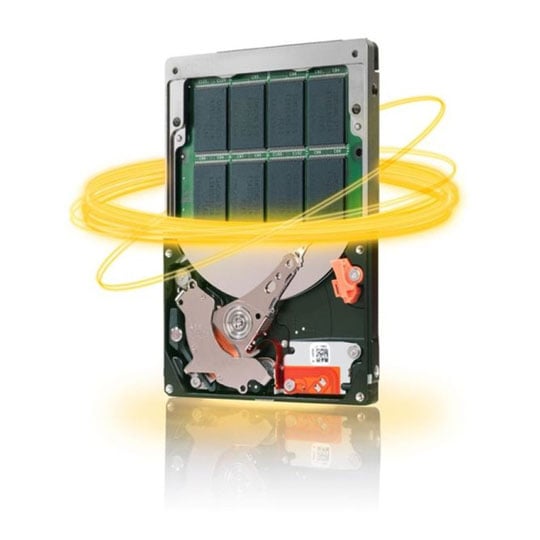

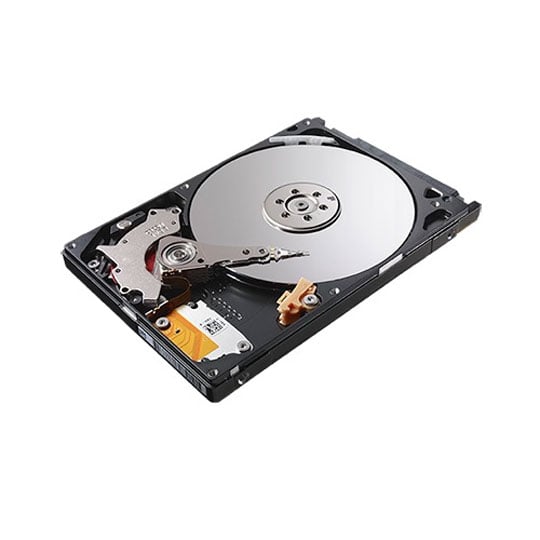

Seagate ST1000LM014 1TB SSHD 2.5" SATA 3 PC/MAC/PS4

1TB Seagate ST1000LM014 2.5" Solid State Hybrid Drive, SATA III Slim 6Gbs 8GB SSD 64MB Cache PC/MAC/PS4

Scan code: LN50173 Manufacturer code: ST1000LM014 Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 21st Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Although this is a 2.5" Drive its also Very Popular in Desktop Systems. PC Desktop/Laptop and MAC/Macbook & Sony PS/4 Gaming Console

Get Maximum Performance and Capacity in an All-In-One Solution

Seagate® Laptop and Laptop Thin SSHDs fuse the blazing speed of SSD with the high capacity of a hard drive.

1TB, 9.5mm design for maximum capacity laptops and Desktops
Increases laptop system responsiveness by up to 30%
Runs up to 4x faster than a traditional 5400-RPM HDD
Easy laptop upgrade saves time and improves productivity

Performs Like an SSD
SSHDs use Seagate flash management technology to deliver SSD-like performance. Testing consistently shows that Seagate Laptop SSHDs compare favourably to SSDs without sacrificing capacity.

SSD+HDD=Best of Both Drives
Seagate Laptop SSHDs integrate NAND flash solid-state storage with traditional hard drive storage, creating a laptop drive with the speed of solid state and the capacity of a hard drive.

Blazing fast boot and launch times; boots Windows 8 in 10 seconds or less
Installs and works like a typical hard drive
Utilises NAND flash and hard drive capacity for unmatched data integrity and reliability
Performance optimised by Seagate Adaptive Memory™ technology

Easy, Low-Cost HDD Laptop Upgrade

SSHD provides a great way to breath new life into an older laptop computer.

Get performance you never thought possible, at a fraction of the cost of SSD
Add capacity without adding complexity - and get more productivity and satisfaction from your PC or MAC
Easy DIY laptop upgrade solutions available
Backed by a 3-year limited warranty

PC & Mac Laptop Compatible

The 9mm Laptop SSHD or 7mm Laptop Thin SSHD is designed to work in any standard laptop system, PC or Mac OS. Unlike other “hyrbrid” solutions, there are no special drivers or software to install and configure. It installs and works just like a hard drive – only faster! Features

Capacity: 1 TB
Interface: SATA 6Gb/s NCQ
NAND Type/Size: MLC/8GB
DRAM Cache (MB): 64
SATA Transfer Rates Supported (Gb/s): 6.0/3.0/1.5
Average Data Throughput (MB/s): 100
PC Mark Vantage Average HDD Score: 19,838
Average Windows 8 Boot Time (sec): <10
Seek Average, Read (ms): <12.0
Seek Average, Write (ms): <14
Heads/Disks: 4/2
Bytes per Sector: 4096
Head-Rest Method: QuietStepâ„¢ Ramp Load
Load/Unload Cycles: 600,000
Norecoverable Read Errors per Bits Read, Max: 1 per 10E14
Predicted Annualized Failure Rate (AFR): 0.48%
Power (W) - Seek, Typical: 2.7
Power (W) - Idle, Typical: 0.9
Temperature (°C) - Operating: 0 to 60
Temperature (°C) - Nonoperating: âˆ'40 to 70
Shock (Gs) - Operating: 2ms: 350
Shock (Gs) - Nonoperating: 1000
Acoustics (belsâ€"sound power) - Idle, Typical: 2.2
Acoustics (belsâ€"sound power) - Seek, Typical: 2.4
Height (in/mm): 0.374/9.5
Width (in/mm): 2.5/69.85
Depth (in/mm): 3.95/100.35
Weight (lb/g): 0.254/115
Capacity 1000 GB
Edition Momentus XT
Form Factor 2.5"
SSHD Flash Memory Size N/A
SSHD Flash Memory Type N/A
Height 9.5 mm
Rotation Speed 5400
Cache 64MB
Access Time 8 ms
Host to/from Drive Sustained Transfer Rate
Interface SATA III - 6Gb/s
Load/Unload Cycles
Annualised Workload Rating
Non-Recoverable Read Errors per Bits Read
Max. Operating Shock
Shock/Free-Fall Sensor No
Dimensions 69.85x9.5x100.35 (WxHxD mm)
Package Type

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

24 months
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Customers also bought
1TB Seagate ST1000LM014 2.5" Solid State Hybrid Drive, SATA III Slim 6Gbs 8GB SSD 64MB Cache PC/MAC/PS4 is rated 4.7 out of 5 by 43.
Rated 5 out of 5 by from improved performance Bought to replace a faulty hard drive, easy to install and formatting was straight forwards using the Windows recovery disks. The speed of page access has improved since fitting this disk. Satisfied with the purchase.
Date published: 2017-02-15
Rated 5 out of 5 by from Excellent Drive Upgrade for Notebook I purchased two of these for use as replacement secondary Data drives on two Dell M6600 Portable Workstations. They are significantly faster than the original Hard Drives of only 500GB. This not only gives us more storage space, but faster in to the bargain. Excellent, very happy with these Drives
Date published: 2016-10-31
Rated 5 out of 5 by from Excellent item, highly recommended. The 1TB Seagate ST1000LM014 2.5" Solid State Hybrid Drive does not disappoint, and as usual Seagate have produced another excellent product. Up and running in no time, with no issues at all.
Date published: 2016-07-22
Rated 5 out of 5 by from PS4 Hard drive upgrade After lots of research I settled on the Seagate ST1000LM014 to upgrade my PS4's standard 500Gb HDD. This drive is VERY quiet in comparison to the standard drive. The cooling fan doesn't appear to operate at its higher speeds as often anymore either. I can't really tell if there's much difference in loading speed and data writing etc I'd certainly recommend this drive as an upgrade for increased storage and the quieter operation. Delivery was also very prompt from scan too.
Date published: 2016-07-05
Rated 5 out of 5 by from ps4 perfect upgrade drive put this in the sons ps4 as upgrade to 1tb, works flawlessly and is alot faster than the sata 2 drive it came with
Date published: 2016-04-01
Rated 5 out of 5 by from Brilliant PS4 replacement drive. I bought this to upgrade my 500gb stock PS4 hard drive. Drive arrived quickly and was well packaged. Took 5 mins to swap over the drives. The previous drive took 3 hours to back up, but restoring took 1.45 mins, so big improvement in speed. Overall very happy with the drive.
Date published: 2016-03-01
Rated 5 out of 5 by from Great features for a very good price I purchased this 1TB Seagate solid state hybrid drive as a replacement drive for my late 2011 15 inch MacBook pro as its drive had failed and in the couple of months I have been using it I have been very impressed. As a professional photographer I am using Photoshop and Lightroom all the time and although this drive has a slower speed than the original drive purchased with my mac the solid state component of the Seagate definitely gives it a speed boost. Also it startup time is now very impressive.
Date published: 2016-01-15
Rated 5 out of 5 by from Brilliant harddrive Replaced my piece of junk harddrive jn my laptop with this one and its far quicker. well worth the money.
Date published: 2016-01-04
  • y_2017, m_11, d_18, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_43
  • loc_en_GB, sid_50173, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does this drive use regular SATA power and SATA data cables or will I need a mini SATA-regular SATA adapter to put it in a desktop PC?

Asked by: Justin
the drive fits using normal attachment points and connects using regular sata cables no additional action required, simply plug and play
Answered by: dreadpirateroberts
Date published: 2017-04-23

Mac Mini 2011 Compatible?

Hi. I'd like to add a faster hard drive to my 2011 Mac Mini. Would this be compatible? Thanks Jim
Asked by: Jimmski
Yes it is compatible, and will be faster than the stock MAC Mini drive
Answered by: Chief
Date published: 2015-10-31
