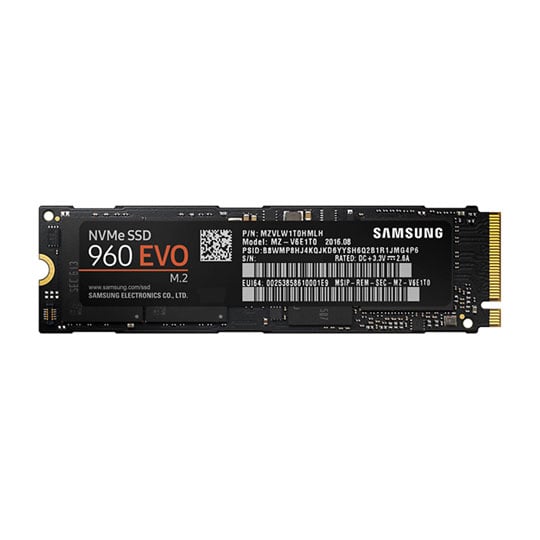

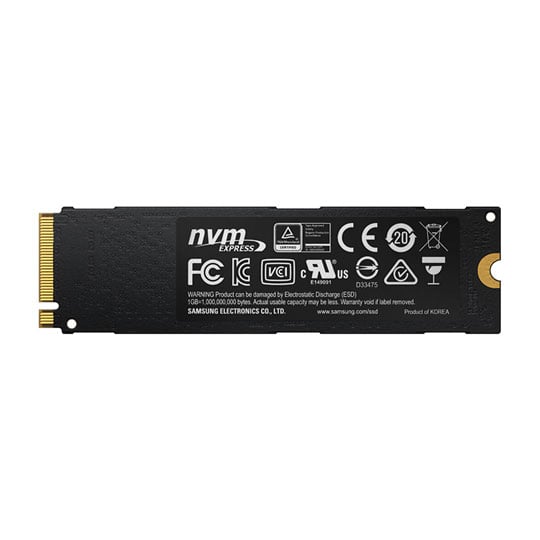

Samsung 1TB 960 Evo PCIe Solid State Drive/SSD MZ-V6E1T0BW
Features Raise your performance expectations
Enhanced bandwidth beyond the SATA interface provided by the NVMe interface, combined with the new Polaris controller facilitates sequential Read/Write speeds up to 3,200 MB/s and 1,900 MB/s respectively. Plus, the new Intelligent TurboWrite technology accelerates write speeds even further.
Rest easy with solid reliability
The 960 EVO holds its own by boasting up to 400 TBW* for the 1TB capacity model and is backed by a 3-year limited warranty. Dynamic Thermal Guard prevents overheating, protecting your data and ensuring optimal performance.
*TBW : Terabytes Written
Manage your drive like magic
The 960 EVO comes with the newly upgraded Magician—an advanced software solution for users to monitor, manage and maintain the drive. Magician provides personalized firmware checking and additional functions tailored for individual user's drives. It even updates the firmware automatically to make sure that the drive's performance stays up to date.
|Form Factor||M.2 (2280)|
|Interface||M.2 (2280) PCIe 3.0 x4|
|Host Controller Interface||NVMe 1.2|
|Flash Memory Type||3-bit MLC V-NAND|
|Max. Read||3200 MB/s|
|Max. Write||1900 MB/s|
|DRAM Cache Memory||1GB|
|DRAM Cache Memory Type||DDR3|
|Max. Random Read 4K||380,000 IOPS|
|Max. Random Write 4K||360,000 IOPS|
|Power Consumption (active)||5.7|
|Max. Endurance Rating||400|
|MTBF||1.5 million hours|
|Max. Operating Vibration|
|Max. Non-operating Vibration||20 - 20,000Hz|
|Max. Operating Shock|
|Max. Non-operating Shock|
|Connectivity||1 x M.2 (PCIe)|
