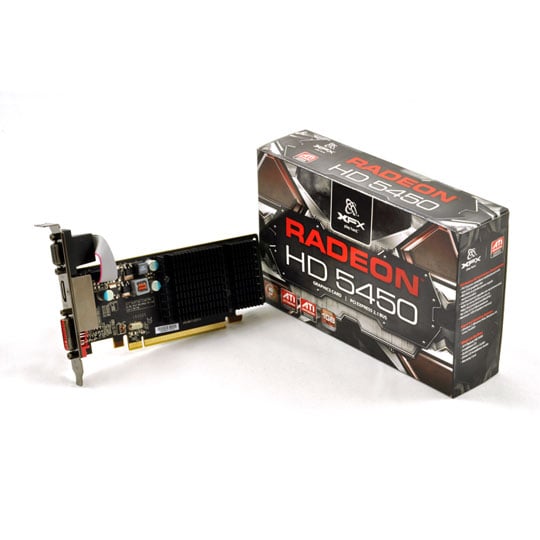

XFX AMD HD 5450 Silent Graphics Card - 1GB

1GB XFX HD 5450 Silent, PCIe 2.1(x16), 1066MHz GDDR3, GPU 650MHz, 80 Cores, D-Sub/ HDMI/ DVI, LP

XFX
Scan code: LN43099 Manufacturer code: HD-545X-ZCH2 Request call
£23.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved Entry Level
Delivery options £5.48 By DPD On 6th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Multiple Tools, Minimum Expenditure.
The XFX ATI Radeon™ HD 5450 graphics card offers everything you need for gaming and HD home entertainment in one package. Do more on your PC with ATI stream technology, which accelerates even the most demanding applications. The XFX ATI Radeon™ HD 5450 fully supports Microsoft DirectX® 11 which enables real-time rendering with ultra-realistic characters and incredible 3D imagery.

Features • 80 Stream Processors
• ATI Stream technology
• Designed for DirectCompute 11 and OpenCL
• Accelerated Video Transcoding (AVT)
• Compliant with DirectX® 11 and earlier revisions
• Supports OpenGL 3.2
• ATI Avivo™ HD video and display technology
• ATI PowerPlay™ technology
• PCI Express® 2.1 support
Specifications
Specifications
Chipset HD 5450
Edition
Manufacturing process 40 nm
Microarchitecture
Cores 80
Streams N/A
Core Clock 650 MHz
Boost Clock N/A
Memory Size 1GB
Memory Type GDDR3
Memory Clock 1066 MHz
Memory Bus 64 Bit
Cooling Solution Passive
Cooler Design
Included/Fitted Backplate No
Interface PCIe 2.1 (x16)
Connectivity
  • 1 x D-Sub
  • 1 x DVI-I
  • 1 x HDMI
Maximum Digital Resolution
Maximum Analog (VGA) Resolution
Max. Concurrent Displays
NVIDIA SLI Support
GeForce GTX VR Ready No
Microsoft DirectX Support
HDCP Ready Yes
Width Single Slot
Low Profile Compatible Yes
Low Profile Support Yes - Bracket NOT included
Graphics Card TDP/Power
Graphics Card Power Connectors
Minimum Recommended PSU
Maximum GPU Temperature
Dimensions
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
XFX / SCAN / XFX UK LTD
Telephone:
09068 354 400
