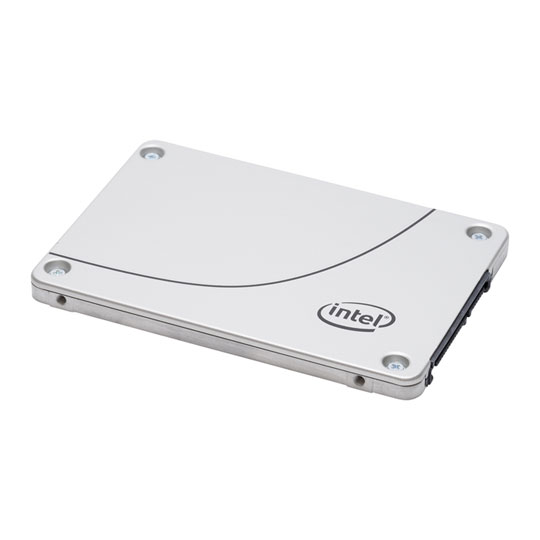

Intel Data Center S3510 2.5" 1.6TB SSD SATA3

1.6TB Intel DC S3510 Series 2.5" SSD, SATA III - 6Gb/s, AHCI, MLC SET NAND, 500MB/s Read, 430MB/s Write, 65k/15.2k IOPS

Scan code: LN65092 Manufacturer code: SSDSC2BB016T601 Request call
£1,032.49Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £25.79 / month (APR 15.9%)
3xs Approved High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Consistently Amazing: Cost-Effective Performance and Reliability for the Data Center
Experience low total cost of ownership, exceptional performance and strong data protection with the #1 Chosen Intel® SSD DC Family for SATA.

Optimized Data Center Endurance
Demanding applications require highly reliable storage coupled with consistent performance. The Intel® SSD DC Family for SATA offers a full range of endurance and performance levels, designed to meet the needs of your data center workloads.

The Intel® SSD DC S3510 with 0.3 full DWD is optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.

Stress-Free Data Protection
The Intel® SSD DC Family for SATA protect data with full end-to-end data protection, 256-bit encryption Advanced Encryption Standard (AES) technology, sophisticated error protection schemes, and enhanced power loss and thermal monitoring features.

High Reliability – Low Total Cost of Ownership
Intel® SSDs are known industry wide for quality and reliability. The Intel® SSD DC Family for SATA is engineered to reduce downtime as a result of storage-related failures and designed to meet an Annualized Failure Rate (AFR) of 0.44%. The Intel® SSD DC Family for SATA significantly reduces Total Cost of Ownership (TCO).

Held to the highest validation standards, the Intel SSD DC Family for SATA is analyzed in more than 5,000 unique tests and is fully supported with Intel’s 5-year limited warranty and customer support.

Power-Efficient Performance
The Intel® SSD DC Family for SATA accelerates data center performance with read-write throughput speeds up to 550/5201 megabytes per second (MB/s) and 4K random read-write input/output operations per second (IOPs) up to 85,000/45,000.

Applications benefit from 55 µs typical latency with max read latencies of 500 µs 99.9% of the time. Combining performance with low typical active power (less than 6.9 watts), the Intel SSD DC Family for SATA improves data center efficiency with superior quality of service, reduced energy costs, and is ideal for server or application upgrades.

Product Spotlight
• Low Total Cost of Ownership
• Proven Quality and Reliability
• Optimized for Data Center Applications

More information can be found in the PDF below:
Data Sheet Features • 2.5" Form Factor
• 7mm Maximum Thickness
• SATA 3.0 6Gbps Interface
• 16 nm Lithography
• Enhanced Power Loss Data Protection
• AES 256 bit Hardware Encryption
• Temperature Monitoring and Logging
• End-to-End Data Protection
Capacity 1.6TB
Edition DC S3510 Series
Form Factor 2.5"
Height 7 mm
Interface SATA III - 6Gb/s
Host Controller Interface AHCI
Flash Memory Type Intel 16nm MLC SET NAND
Max. Read 500 MB/s
Max. Write 430 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 65,000 IOPS
Max. Random Write 4K 15,200 IOPS
Latency N/A
Special Features
Power Consumption (active) 5.59W
Max. Endurance Rating
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x SATA III - 6Gb/s
OS Support
Bracket N/A
Package Type
