Scan code: LN97960 Manufacturer code: SSDPED1K015TA01

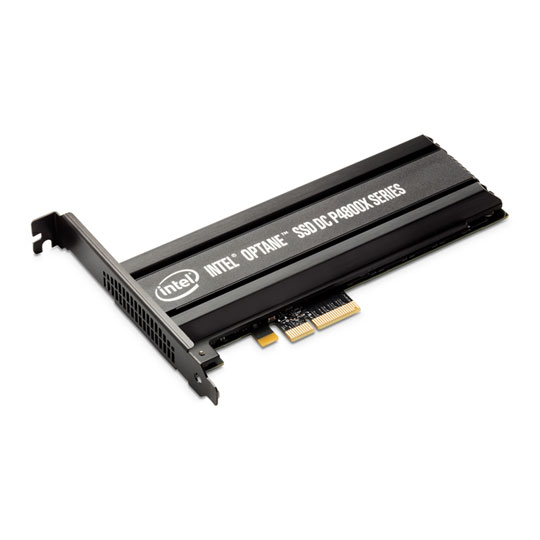

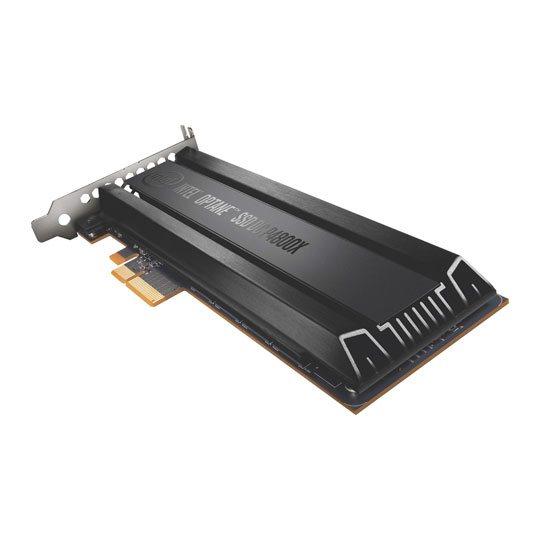

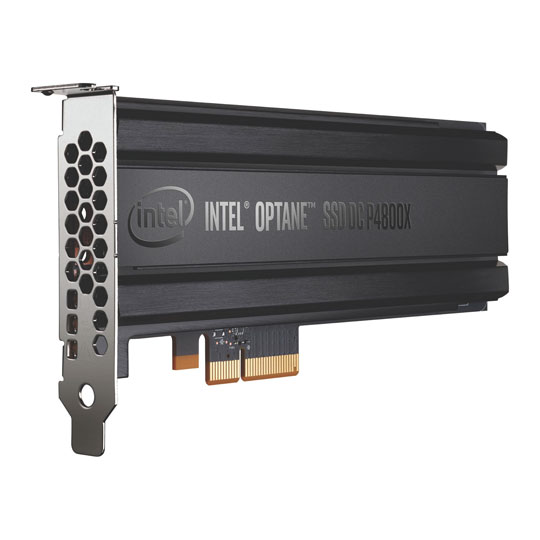

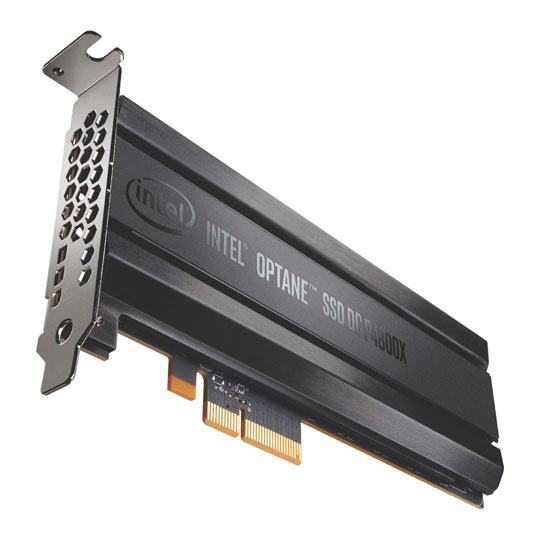

Intel Optane DC 1.5TB 2.5" PCIe AIC SSD/Solid State Drive

1.5TB Intel Optane DC P4800X 2.5" AIC SSD, HHHL, PCIe 3.0 (x4), NVMe, 2500MB/s Read, 2200MB/s Write, 550k/550k IOPS

Thumbnail 1 : Intel Optane DC 1.5TB 2.5" PCIe AIC SSD/Solid State Drive Thumbnail 2 : Intel Optane DC 1.5TB 2.5" PCIe AIC SSD/Solid State Drive Thumbnail 3 : Intel Optane DC 1.5TB 2.5" PCIe AIC SSD/Solid State Drive Thumbnail 4 : Intel Optane DC 1.5TB 2.5" PCIe AIC SSD/Solid State Drive
Scan code: LN97960 Manufacturer code: SSDPED1K015TA01
£3,897.49Item currently awaiting an ETA
Pre order
From £162.40 / month (APR 0%)
Monthly Payment: £649.59
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,897.49
Total inc. interest: £3,897.49
Monthly Payment: £324.79
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,897.49
Total inc. interest: £3,897.49
Monthly Payment: £216.53
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,897.49
Total inc. interest: £3,897.49
Monthly Payment: £162.40
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £3,897.49
Total inc. interest: £3,897.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £97.34 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview Intel® Optane™ SSD DC P4800X Series
World’s most responsive data centre SSD.

Solve the Most Demanding Memory and Storage Challenges
Delivering an industry-leading combination of low latency, ultra endurance, high QoS, and high throughput, the Intel® Optane™ SSD DC P4800X Series is the most responsive data centre SSD. Built with the revolutionary new 3D XPoint™ memory media, the SSD DC P4800X is the first product to combine the attributes of memory and storage. This innovative solution is optimized to break through storage bottlenecks by providing a new data tier. It accelerates applications for fast caching and storage, increases scale per server, and reduces transaction costs for latency sensitive workloads. In addition, data centres can now also deploy bigger and more affordable data sets to gain new insights from large memory pools.

High throughput, low latency, high QoS, and ultra endurance: The Intel® Optane™ SSD DC P4800X solves the most challenging memory and storage demands.

Intel® Memory Drive Technology: Usher in New Possibilities with Larger Working Sets
Intel® Memory Drive Technology is optimized for the low latency and high endurance of Intel® Optane™ SSDs, and transparently makes the SSD appear like DRAM to the OS and applications. Together with the Intel® Optane™ SSD DC P4800X, Intel® Memory Drive Technology enables data centres to deliver high-performance DRAM expansion or deliver more affordable memory pools. Intel® Memory Drive Technology requires no change to the OS or applications.

1 Responsiveness defined as average read latency measured at queue depth 1 during 4k random write workload. Measured using FIO 2.15. Common configuration - Intel 2U PCSD Server (“Wildcat Pass”), OS CentOS* 7.2, kernel 3.10.0-327.el7.x86_64, CPU 2 x Intel® Xeon® E5-2699 v4 @ 2.20GHz (22 cores), RAM 396GB DDR @ 2133MHz. Intel drives evaluated - Intel® Optane™ SSD DC P4800X 375GB and Intel® SSD DC P3700 1600GB. Samsung drives evaluated – Samsung® SSD PM1725a, Samsung® SSD PM1725, Samsung® PM963, Samsung® PM953. Micron drive evaluated – Micron® 9100 PCIe® NVMe™ SSD. Toshiba drives evaluated – Toshiba® ZD6300. Test – QD1 Random Read 4K latency, QD1 Random RW 4K 70% Read latency, QD1 Random Write 4K latency using fio-2.15.

2 Performance specifications apply to both compressible and incompressible data.

3 4KB = 4,096 bytes. Features • 1.5TB Data.
• Super Fast R/W Speed.
• 2500MB/s Read speed.
• 5yr Warranty.
Specifications
Capacity 1.5TB
Edition Intel Optane DC P4800X
Form Factor HHHL (CEM3.0)
Height
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller
Flash Memory Type 20nm MLC NAND Flash
Max. Read 2500 MB/s
Max. Write 2200 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 550000 IOPS
Max. Random Write 4K 550000 IOPS
Latency 10 %B5s
Special Features
  • AES 256-bit Encryption
  • End-to-End Data Protection
  • Enhanced Power Loss Data Protection
  • High Endurance Technology (HET)
  • Temperature Monitoring and Logging
Power Consumption (active) 18
Max. Endurance Rating 164 PBW
MTBF 2 million Hours
Max. Operating Vibration
Max. Non-operating Vibration 3.13 GRMS
Max. Operating Shock 50G, 170 in/s, trapezoidal
Max. Non-operating Shock 50G, 170 in/s, trapezoidal
Connectivity
OS Support
Bracket N/A
Dimensions
Weight 190 g
Package Type Retail
Additional Information
Scan Code LN97960
Model Number SSDPED1K015TA01
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
