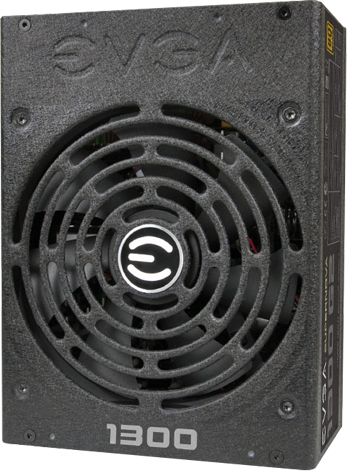

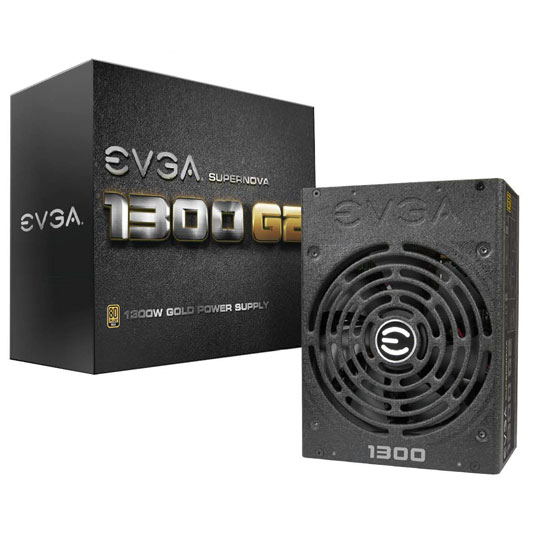

EVGA SuperNOVA G2 1300W Full Modular PSU/Power Supply
1300W EVGA SuperNOVA G2, Full Modular, 80PLUS Gold, SLI/CrossFire, Single Rail, 108.3A, 140mm Fan, ATX PSU
EVGA 1300G2 80PLUS GOLD
1300G2 - Unrivaled Performance
Introducing the EVGA SuperNOVA 1300 power supplies. These power supplies raise the bar with 1300W of continuous power delivery and up to 100% efficiency. A fully modular design reducing case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclock-ability and unparalleled control. The EVGA SuperNOVA 1300 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance.
POWER CHART
| AC Input |
| DC Output |
| Max Output |
| Combined |
| Output |
|
Large 108.3 amp single + 12V Rail 100 - 240 VAC / 15A / 50 - 60Hz |
||||
| +3.3V | +5V | +12V | +5Vsb | -12V |
| 24A | 24A | 108.3A | 3A | 0.5A |
| 120W | 1299.6W | 15W | 6W | |
|
1300W @ +50C
Industrial grade testing all load and regulation testing done at 50C |
||||

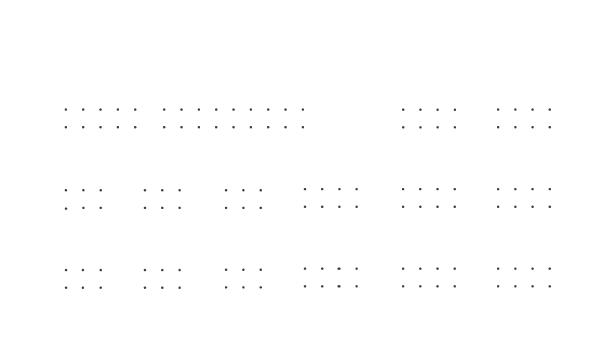

CONNECTIVITY
Standard ATX Form Factor
Will fit most mATX / ATX / EATX / HPTX & XLATX cases
Fully Modular Cabling
Fully Modular to reduce clutter and improve airflow
HARDWARE PROTECTION
While being silent, this entire series has a large single 12volt rail, providing plenty of power to fuel all of your hardware. And lastly, because power without safety is pointless, a full suite of top tier circuit protections have been added to keep you running strong and more importantly keeping your hardware safe.
OVP
(Over Voltage Protection)
OPP
(Over Power Protection)
UVP
(Under Voltage Protection)
SCP
(Short Circuit Protection)
OCP
(Over Current Protection)
OTP
(Over Temperature Protection)
FEATURES
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.
LLC Resonant Circuit Layout
Full DC to DC, LCC resonant circuit design improves efficiency.
Fully Modular
Fully modular designs allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximise case airflow.
Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.
Double Ball Bearing Fan
A high-quality dual ball bearing fan gives the SuperNOVA 1300 G2 an excellent thermal and acoustic profile, and its high reliability ensures a long PSU lifetime.
80PLUS GOLD Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into exess heat. Under typical load this power supply is 90% efficient or higher.
