CORSAIR HX1200 Fully Modular 80PLUS Platinum Power Supply/PSU Refurbished
Refurbished 1200W CORSAIR HX1200, Full Modular, 80PLUS Platinum, SLI/CrossFire, Single Rail, 100A, 135mm Fan, ATX PSU,
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Refurbished CORSAIR HX1200 Fully Modular 80 PLUS Platinum ATX PSU
Corsair HX 1200W Power Supply
This HX Series power supply from Corsair has a total power output of 1200W, other advantages to the HX1200 are the fully modular cable setup which gives you extremely tight voltage control virtually silent operation. The 80PLUS Platinum efficiency rating and Zero RPM Fan Mode mean that at low to medium loads, the fan doesn’t spin at all. And when you do push the HXi hard, the thermally controlled fan spins only as fast as it needs to. Even when the fan isn't running the HX1200 has specially selected components to reduce electronic noise for a near silent PSU.
Fully Modular Connectivity

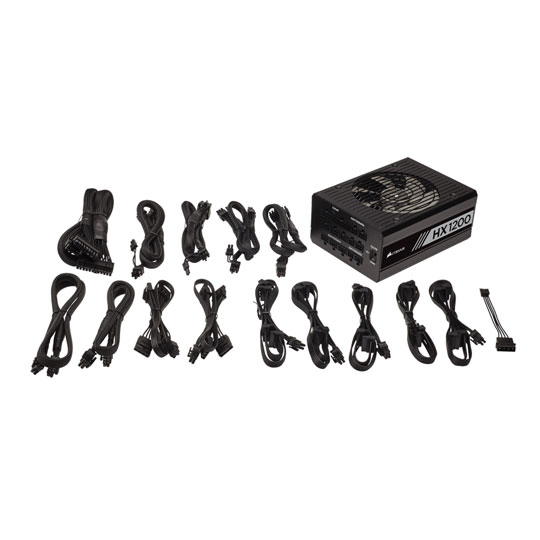

HX Fully Modular Cable Design
The easy to install, fully modular setup on the Corsair HX1200 allows you to combine the low-profile cables provided for a great-looking build. You can toggle the rail modes using the switch on the PSU, In the SINGLE position, the full output capability of the power supply’s +12V rail is available to any and all connector, while on MULTIPLE each connector has Over-Current Protection so no more than 40A of current can be delivered to each cable.
HX1200 Efficiency & Noise Graphs
HX1200 EFFICIENCY
HX1200 FAN NOISE
Corsair HX1200 Output Power Chart
| CORSAIR HX1200 DC OUTPUT - SINGLE +12V RAIL MODE | |||||
|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Load | 30A | 30A | 100A | 0.8A | 3.5A |
| Maximum Combined Wattage | 150W | 1200W | 9.6W | 17.5W | |
| Total Power: 1200W | |||||
| CORSAIR HX1200 DC OUTPUT - MULTIPLE +12V RAIL MODE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Output | +3.3V | +5V | +12V1 | +12V2 | -12V3 | +12V4 | +12V5 | +12V6 | +12V7 | +12V8 | +12V | +5VSB |
| Max Load | 30A | 30A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 40A | 0.8A | 3A |
| Maximum Combined | 150W | 1200W | 9.6W | 15W | ||||||||
| Total Power: 1200W | ||||||||||||
Corsair HX1200 Key Features
80 PLUS Platinum CertifiedPlatinum certification ensures high efficiency for less excess heat & lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.
Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
