3XS Certified Cloud Solutions
Intel Select Solution Architectures
Scan Business is proud to be able to supply 3XS branded Intel Select Solution architectures – pre-certified server builds, offering a degree of flexibility for customisation, but guaranteed to work with pre-qualified software cloud environments.
- Reliable 3XS brand and support
- Built with certified components
- Optimised for cloud workloads
- Covered by Intel Technical Warranty & Support
3XS Certified Systems for Microsoft Windows Server 2016
To help customers transition to SDI and private cloud, Scan 3XS systems has partnered with Intel and Microsoft to collaborated across the areas of compute, storage, networking and security to deliver server system configurations that optimise the features and performance of Windows Server 2016, accelerating the path to private cloud.
| 2U - Single Node | 2U - 4 Nodes (per node) | |||||
|---|---|---|---|---|---|---|
| LN | 87949 Intel Server System MCB2208WFAF4 | 87950 Intel Server System MCB2208WFAF5 | 87951 Intel Server System MCB2208WFAF6 | 87952 Intel Server System MCB2208WFHY2 | 87953 Intel Server System MCB2224BPAF3 | 87954 Intel Server System VRN2208WFAF81 |
| Storage Type | All-Flash (Optane+NVMe) | All-Flash (NVMe+SATA) | All-Flash (NVMe+SATA) | Hybrid (NVMe+HDD) | All-Flash (NVMe+SATA) | All-Flash (NVMe+HDD) |
| Network RDMA Support | Yes | Yes | Yes | Yes | Yes | Yes |
| CPU | 2x Intel Xeon Gold 6152 | 2x Intel Xeon Gold 5120 | 2x Intel Xeon Gold 5118 | 2x Intel Xeon Gold 5118 | 2x Intel Xeon Gold 5118 | 2x Intel Xeon Gold 5115 |
| Memory (2666MHz) | 768GB | 384GB | 384GB | 128GB | 256GB | 128GB |
| Cache | 2x P4800 375GB (1.5TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x S4600 960GB (1.9TB) |
| Raw Capacity | 12x P4500 2TB (24TB) | 6x P4500 2TB (12TB) | 6x S4500 1.92TB (3.2TB) | 6x 2TB HDD (12TB) | 4x S4500 1.92TB (7.7TB) | 4x 2TB HDD (8TB) |
| LAN | 4x 10GbE SFP+ (Intel/RDMA) | 4x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) |
- Optimised for Storage Spaces Direct (SDS), designed with certified Windows Server 2016 ingredients and validated by Intel
- Available in all-flash and hybrid storage configurations
- 2U 4 node or 2U 1 node Intel Server Boards and Intel Chassis options
- Powered by Intel Xeon Scalable processor family
- Integrated with Intel Solid State Drives (SSDs) where applicable
- Includes Intel® Remote Management Module (Intel RMM) for secure remote server access and control
- Embedded with more than 100 sensors that monitor all critical functions

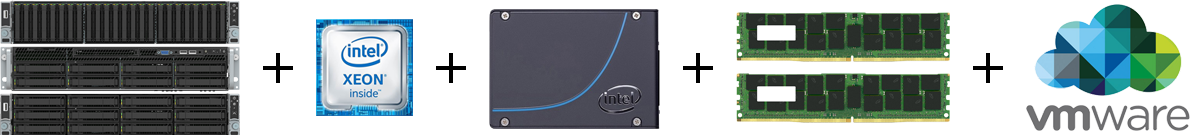

3XS Certified Systems for VMware VSAN
Modernising storage resources is an essential element to software-defined infrastructure (SDI), driving high demand for SDS solutions to transform fixed storage resources to be more agile, scalable, and efficient. 3XS Certified Systems for VMware are fully validated, pre-configured server systems with VMware VSAN certifications included, helping resellers reduce complexity and speed time to market.
| 2U - Single Node | 2U - 4 Nodes (per node) | |||||
|---|---|---|---|---|---|---|
| SKU | VRN2208WFAF83 | VRN2208WFAF82 | VRN2208WFHF81 | VRN2208WFHY6 | VRN2224BPAF6 | VRN2224BPHY6 |
| Description | 2U1N All-Flash (Optane + NVMe) | 2U1N All-Flash (All NVMe) | 2U1N All-Flash (NVMe + SATA) | 2U1N Hybrid (NVMe + HDD) | 2U4N All-Flash (NVMe + SATA) | 2U4N Hybrid (SATA + HDD) |
| Profile | AF-8 | AF-8 | AF-8 | HY-6 | AF-6 | HY-6 |
| Processor | Xeon Gold 6152 (22 Core, 2.1GHz, 140W) | Xeon Gold 5120 (14 Core, 2.2GHz, 105W) | Xeon Gold 5118 (12 Core, 2.3GHz, 105W) | Xeon Gold 5118 (12 Core, 2.3GHz, 105W) | Xeon Gold 5118 (12 Core, 2.3GHz, 105W) | Xeon Gold 5115 (10 Core, 2.4GHz, 85W) |
| Memory (p/n) | 768GB (24x 32GB) | 384GB (12x 32GB) | 384GB (12x 32GB) | 384GB (12x 32GB) | 256GB (8x 32GB) | 256GB (8x 32GB) |
| Cache (p/n) | 4x P4800 375GB (1.5TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x P4600 1.6TB (3.2TB) | 2x S4600 960GB (1.9TB) |
| Capacity (p/n) | 12x P4800 2TB (24TB) | 6x P4500 2TB (12TB) | 6x S4500 1.92TB (11.5TB) | 6x 2TB HDD (12TB) | 4x S4500 1.92TB (7.7TB) | 4x 2TB HDD (8TB) |
| LAN (p/n) | 4x 10GbE SFP+ (Intel/RDMA) | 4x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) | 2x 10GbE SFP+ (Intel/RDMA) |
- Fully validated, pre-configured server systems with VMware VSAN certifications included
- Available in all-flash and hybrid storage configurations
- 2U 4 node or 2U 1 node Intel Server Boards and Intel Chassis options
- Powered by the Intel Xeon Scalable processor family
- Integrated with Intel Solid State Drives (Intel SSD) where applicable
- Third-party memory in configurations optimized and pre-certified for VMware VSAN
- Includes Intel Remote Management Module for secure remote server access and control
- Embedded with more than 100 sensors that monitor all critical functions
