Digital Twin Earth

Project Background

Extreme precipitation events, such as violent rain and hail storms, can devastate crop fields and disrupt harvests. These events can be locally forecasted with sophisticated numerical weather models that rely on extensive ground and satellite observations. However, such approaches require access to compute and data resources that developing countries in need - particularly in South America and West Africa - cannot afford. The lack of advance planning for precipitation events impedes socioeconomic development and ultimately impacts the livelihoods of millions around the world. Given the increase in global precipitation and extreme precipitation events driven by climate change, the need for accurate precipitation forecasts is ever more pressing.

Digital Twin Earth Research

Weather forecasting systems have not fundamentally changed since they were first operationalised nearly 50 years ago. Current state-of-the-art operational weather forecasting systems rely on numerical models that integrate the physical atmospheric state in time based on a system of physical equations and parameterised subgrid processes. While global simulations typically run at grid sizes of 10 km, regional models can reach 1.5 km. For global simulations, skilled forecast lengths are usually limited to a maximum of 10 days, with a conjectured hard limit of 14 to 15 days. Forecasts are also dependent upon the field of interest, with large-scale temperature patterns having much longer predictability time than precipitation events.

Project Approach

The research team aimed to enable data-driven investigations for global precipitation intensity forecasting from satellite imagery, assessing the challenges involved in moving from physics-based models to a data-driven digital twin of the Earth. The team put together a new dataset called RainBench, that was constructed of three publicly-available sources. Firstly, the European Centre for Medium-Range Weather Forecasts (ECMWF) simulated satellite data (SimSat) from a high-resolution weather-forecasting model. Secondly, the ECMWF Re-Analysis, 5th Edition (ERA5) dataset that provides hourly estimates of a variety of atmospheric, land and oceanic variables, such as specific humidity, temperature and geo-potential height at different pressure levels. Finally, the Integrated Multi-Satellite Retrievals (IMERG) global precipitation estimates - a global half-hourly precipitation estimation product provided by NASA, primarily using satellite data from multiple polar-orbiting and geo-stationary satellites.

This combined RainBench dataset was then trained useing neural network based on Convolutional Long Short-Term Memory (Conv-LTSM) algorithms, where a single model is trained conditioned on time and is capable of forecasting at different lead times, as illustrated below.

Precipitation Diagram

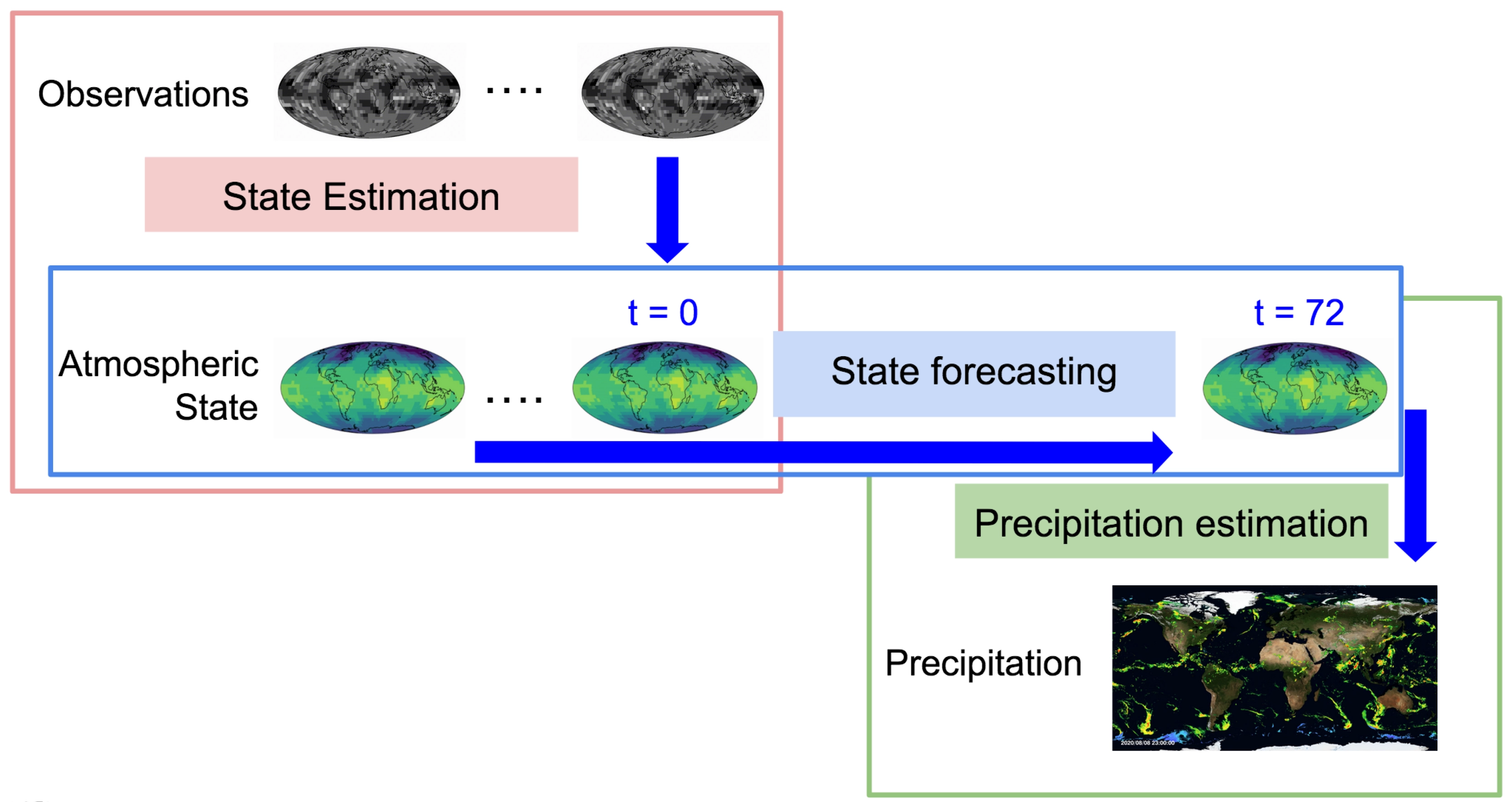

Following training, the team’s approach involved three-steps - State Estimation, State Forecasting and Precipitation Estimation to take the various datapoints and process them with a view to present a five-day global precipitation forecast. Each step is designed to be self-contained and can be designed and trained separately, with a final fine-tuning process can be used to harmonise them for the task at hand. The process is summarised in the diagram below.

Observations Diagram

To support efficient data-handling and experimentation on Rainbench, the team also released PyRain, an out-of-the-box experimentation framework. PyRain introduces an efficient data-loading pipeline for complex sample access patterns that scales to the terabytes of spatial time-series data typically encountered in the climate and weather domain.

Project Results

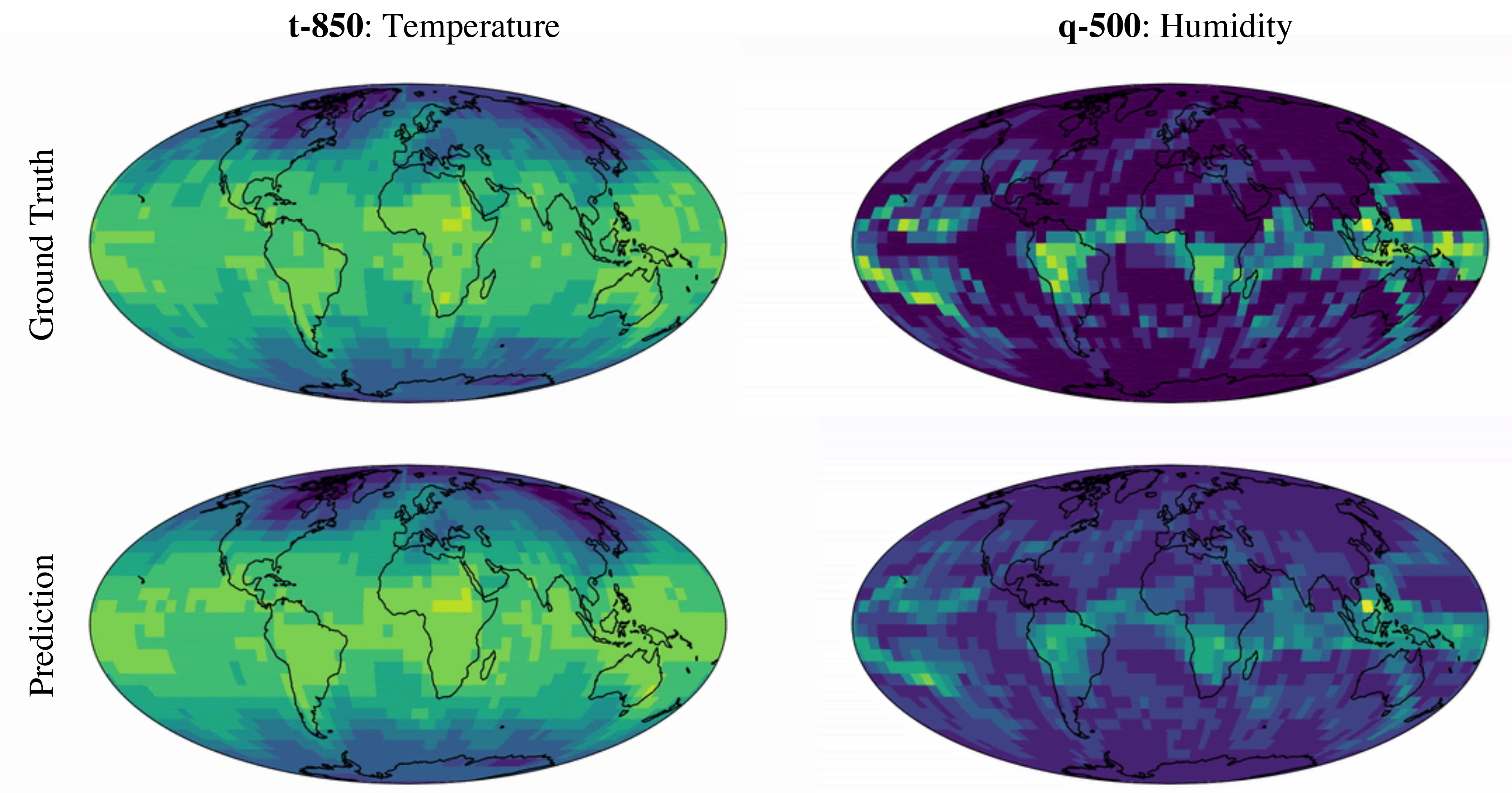

The three-stage approach was used on the RainBench dataset to forecast precipitation up to five days ahead. For this task, the team split the ERA5 and IMERG datasets into training / validation / test sets using the following time intervals: for training, 2010 to 2016 inclusive; for validation, 2017 and 2018; for testing, 2019. They pre-processed the target values by accumulating precipitations over three-hours periods (the frequency at which the Atmospheric State is estimated in the previous step) always in the perspective of fine-tuning the models learned in the three steps together, comparing the ERA5 data with the results from their fully-connected neural network (FCNN), with the results illustrated below.

Project Stages Diagram

The models were compared on four classes of precipitation - none, drizzle, light and heavy. The team noticed that their FCNN is accurate in distinguishing between rainy and non-rainy cells, but it had a tendency to overestimate precipitation rates, whereas ERA 5 tended towards underestimation. That said, FCNN did out-perform ERA5 on all precipitation classes with the exception of drizzle. For the five-day forecasting goal their experiments produced significants improvements as summarised below.

Five-day forecast Before RainBench and PyRain Now with RainBench and PyRain
State Estimation (from SimSat data) No SimSat Estimation Estimate specific humidity from SimSat data.
State Forecasting Existing WeatherBench forecasts Improved 3-day temperature forecasts and 3-day wet variable forecasts
Precipitation Estimation ERA-model precipitation estimation Neural-network for precipitation estimation

The team posit that FCNN's performance could be further improved by (i) extending the input feature set, (ii) carefully tuning the class weights and proportions, and (iii) extending the training set by adding more years of data. You can learn more about this case study by visiting the FDL EUROPE 2020 RESULTS PAGE, where a summary, poster and full technical memorandum can also be viewed and downloaded.
