RAID Motion Racing Simulator

Electronically actuated Racing Simulator chair, pedals and steering wheel with USB connection for PC.

Unparalleled Racing Experience

The RAID full motion racing simulator provides an Unparalleled racing experience. The three commercial-grade high-performance D-Box actuators provide motion in three degrees of freedom and support for 55 vehicles and 73 tracks.

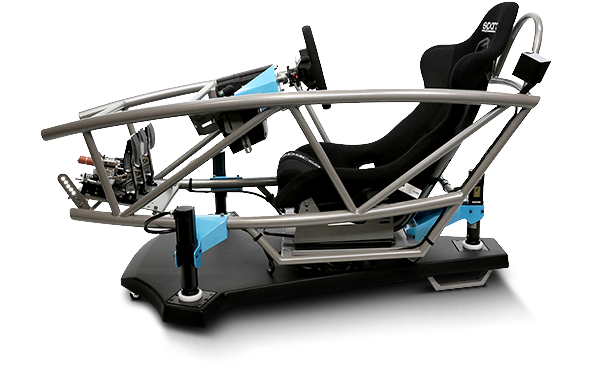

The driving controls are professional grade, equipment straight from the F1 teams’ laboratory. The driver’s cage is designed using authentic race car methods, a low bend radius tubular lightweight steel space frame encloses the driver to create a real ‘inside vehicle’ feel. Other motion racing simulators on the market have been designed first as a non-motion product with the motion solution added later.

The RAID system has been conceived to be a motion system that you sit in. The entire chassis vibrates, leans and dives as you throw it around the race track. All these feeling are communicated to you not just through the seat and driving controls, but also through the entire mass surrounding you.

D–Box Motion Code Software

And this is just the tip of the iceberg: the D–Box Motion Code generates motion and vibration according to the effects programmed in each experience so that you feel any texture of the race track surface, transfer of weight and kick in the back from the up shift, all of this being augmented by a high quality, intelligently positioned audio system, powerful, high resolution force feedback steering and hydraulic pedals.

The RAID is one of the most sophisticated driving simulations in the world and promises to fulfil your wish of driving to the extreme limits.

iRacing Simulation Software

The software engine of choice is iRacing.com, offering the most authentic online racing experience, using the latest technology for its staggering, ever-expanding line-up of famed race cars and courses. All of the painstaking details add up to a robust line-up of cars and tracks that are indistinguishable from the real thing, you’ll be instantly immersed upon entering the cockpit of an iRacing car.

Every facet of our simulator is officially licensed and a laser scanned replica of its real-life counterpart. The next-generation racing software is used by professional drivers and casual gamers alike. Although it’s a motorsport simulator at heart, its value as a training tool can’t overshadow the thrilling racing experience that awaits casual gamers looking for a driving experience unlike any other.

Watch it in action

Watch the RAID Simulator in action here on YouTube

WATCH VIDEO

The Realistic Racing Simulator

Live online competitions against real race drivers, DirectX11 graphics, LIDAR scanned race tracks, officially licensed sports and race cars with accurate technical models, professional grade physics engine and realistic tyre and brake models make for a truly immersive experience.

High quality display panels are essential for a totally immersive experience, we partnered with Samsung to provide a 40" curved central screen, and a pair of 40" flat side screens offering a total resolution of 5760 x 1080 driven by NVIDIA Surround.

The display support features mirror polished stainless steel uprights and aluminium shelves and bracketry. The wireless keyboard and touchpad needs to be available at all times and on the RAID it is served up within the driver’s reach care of a rotating keyboard tray which can be positioned on the left or right hand side.

Adjustability

Your driving preferences can be catered for with equipment that offers multiple layouts. Use a fully automatic gearbox to get started, keep the auto clutch and introduce manual sequential shifting using either the sequential paddle shifter or the side shifter.

For the pro driver enable manual clutch, either with the same sequential gearboxes or the side shifter in gated mode and the below adjustabillity is available

Steering angle
Steering Reach
Seat Reach
Pedal angle

Product Range

The below models are available, the system is designed to fit through a standard domestic doorway, with the motion system and base removed the chassis is 79.5cm at its widest point. Designed for drivers 150 to 190cm in height of standard build. It is not designed for very large drivers.

RAID Pro340

3250i
1.5" Actuator Travel

RAID Pro340 HD-3

3400 HD-3
3" Actuator Travel

Optional motion upgrade from 4250i 1.5" travel to 4400HD-3 for 3" of travel

Simulator Features

Lifetime Durability

Precision manufactured lightweight steel and aircraft grade aluminium components provide a lifetime of durability

High definition display

Triple 40" display array at 5760 x 1080 pixels to fully immerse you into the simulated racing experience

Sparco Racing Seat

Authentic FIA approved and bred for endurance racing, this seat will keep you comfortable for long durations even through the most intense race sessions

D–Box Actuator System

Commercial grade D–Box actuator system capable of producing a delivery of up to 2G’s of dynamic motion and vibration. Fast, subtle, with bullet proof reliability make D-Box the only choice in motion system for your home or commercial environment.

Direct Steering system

Simply the best system in production in the world. With quick release touring car steering wheel featuring rev counter, LED gear indicator, POV hat and several switches. Alcantara wrapped design with integral, adjustable tip-tronic paddle shift on a telescopic adjustable mounting plate

Hydraulic Pedals set

Clutch release action, hard hydraulic brake, progressive accelerator, market leading manufacturer

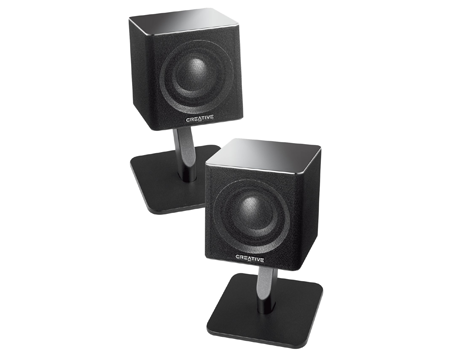

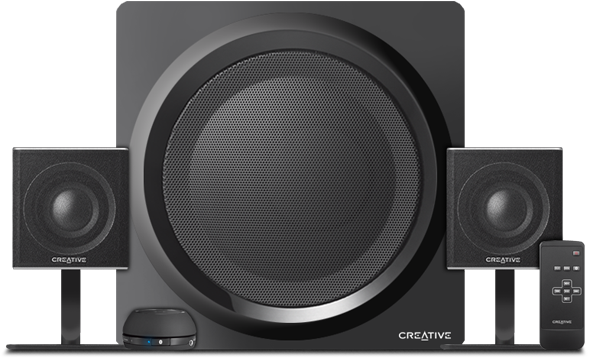

Brilliant Sound

Creative T4 Digital Audio

High End Shifter

Configurable to a gated and sequential layout

White Glove Setup

Setup and Training Package Included

Simulator Specifications

Model

Pro340 / HD-3

Base Design

Rolling split base design

Motion System

D–Box 3250i or 3400HD-3 Motion Code

Engine

Scan 3XS

Steering System

Reimer Motorsports Direct Drive

Seat

Sparco Evo II

Gear Box

Fanatec SQ

Wheel

Fanatec Clubsport GT2 with quick release

Pedals

HPP 3P-PRX

Screen

3 x 40" 1080p Samsung LED displays with curved central screen

Speakers

Creative T4 Sound system

Power

One 13A 230V wall outlet

Games

Dirt Rally, iRacing with rookie content and first year subscription included

Other

Integrated power distribution and USB distribution

Dimensions (L x W x H cm)

180 x 220 x 132

Weight (kg)

150

Price

From £35,999 inc VAT with white glove delivery and installation service. The lead time for the simulator is 4 to 5 weeks from date of order. Price is for simulator only, a PC is required and must be purchased separately.

Warranty & Returns

The RAID Simulator Warranty will be for a period of two years. There is a strict policy of no returns following manufacture and installation of the system however all faulty components will be either rectified or replaced new FOC. Please note the replacement of damaged items due to negligence will be chargeable

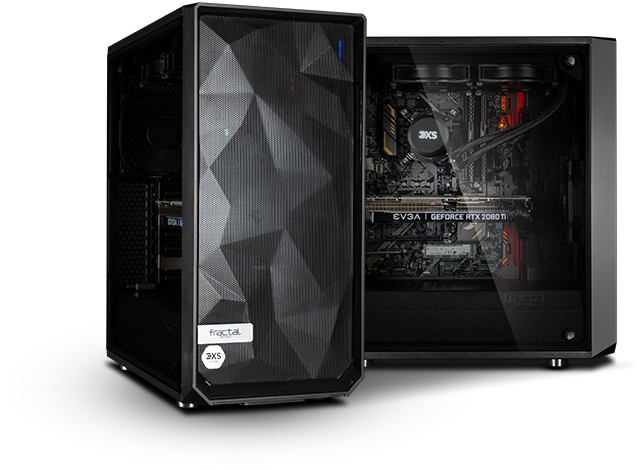

3XS Driving Simulator PC

Make the most of your RAID Full Motion Racing Simulator with a Scan 3XS Driving Simulator PC. Configurable to your requirements and despatched from our state-of-the-art factory in just five working days.

VIEW SYSTEM

RAID Simulator in detail

Use the menu below to view specific details on the components

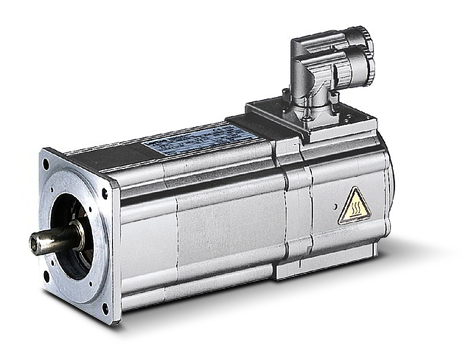

Reimer Direct Drive

The steering electronics in our racing simulators are operated on Granite Devices Argon and the steering wheel drive was created with a 3-phase AC servo by the company Lenze with their MCS12H15L model.

This servo reaches a peak torque of up to 29Nm, a holding torque of 20Nm and has a resolution of 16384CPR. The main feature of the Lenze servo is the super-high resolution of the steering axle, which targets much more responsive steering, and Lenze also makes the self-damping as well as friction much lower, which enables a better and higher level of adjustability.

The set consists solely of high quality industrial hardware and similar systems are found on the F1 teams’ own pro training simulators. Quite simply this is the best in the world! The most powerful, the most resolution, the most reliable!

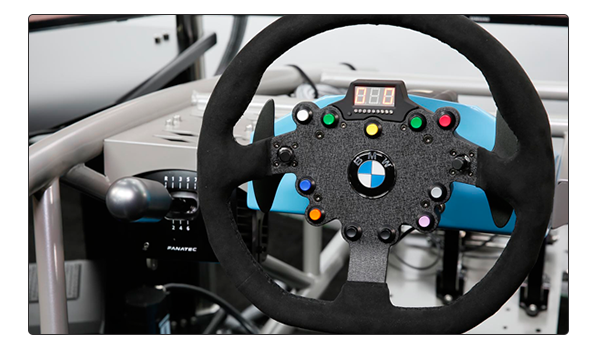

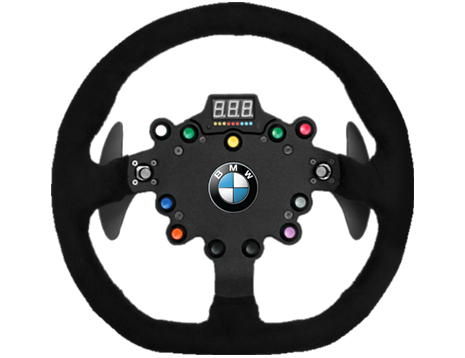

BMW M3 Touring Replica Wheel

The RAID full motion simulator is fitted with an officially-licensed replica BMW M3 touring car 320mm steering wheel. It’s full metal construction and Alacantra finish allows precise manoeuvres and smooth driving.

The wheel includes 11 buttons plus two paddle shifter buttons with ultra-reliable switches. You can use an analogue joystick to look around in the cockpit or map with any other axis. Other features include a 7-way encoder switch, LED bar to show motor RPM and LED display to show telemetry functions. There are also adjustable and detachable paddle shifters completely made of metal. You can adjust the angle, distance to rim and travel of the paddles.

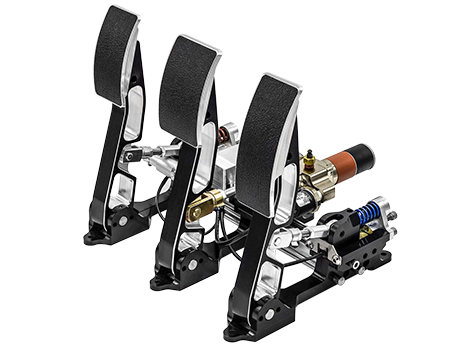

Hydraulic Pedals for Full Motion Racing

These pedals look stunning. A clever use of silver and black metal produces an extremely high quality look and feel. Every part is finished beautifully and the attention to detail is superb. The pedal foot plates are very high quality aluminium and have threaded holes on the reverse side so that you can adjust their position both horizontally and vertically.

The textured plastic pedal faces themselves are curved, with the coating providing only moderate grip, which means sliding your feet across the face is easy.

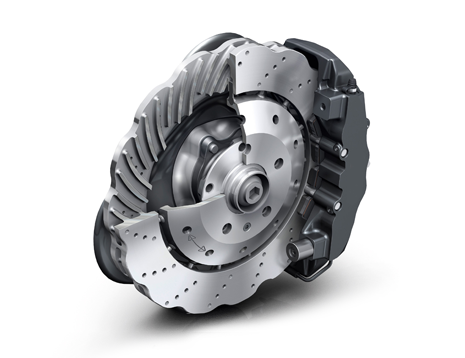

Brakes

The hydraulic brake system is designed specifically for racing simulation. Numerous design attributes have been tested, improved, tweaked and enhanced to provide the ultimate in racing simulation realism and feel.

We use an extremely high quality pressure transducer, with incredible accuracy, repeatability and durability. The pressure transducer is rated for a 50 million life cycle. The user can fine tune by adjusting the pre-load on the bumpers. The braking threshold and modulation feedback provided to the user via our hydraulic system is outstanding.

Accelerator

The accelerator pedal incorporates a true linear potentiometer unlike the common rotary potentiometer or slide potentiometers found on a lot of pedal systems. This provides true positional linearity relative to pedal movement.

The end result is a super smooth and accurate gas pedal movement. The pedal travel is also adjustable.

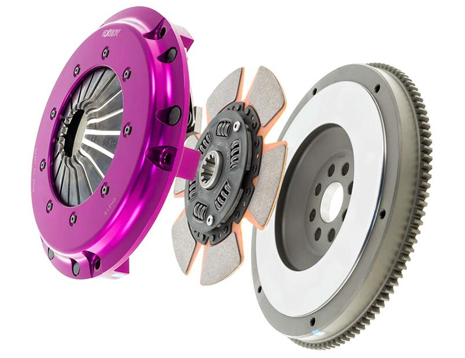

Clutch

There are 3 distinct stages of the clutch pedal travel. The first is slight resistance, somewhat of free pedal travel just like reality, the travel is very small. The second stage is where you feel the increased resistance as if you were actually compressing the pressure plate spring on a clutch.

The third stage is when you’ve compressed the pressure plate spring and the resistance releases the rest of the pedal travel. The clutch pedal feel is the best we have ever experienced in a sim setup. We have worked really hard to simulate a real clutch and have created a beautifully constructed mechanism on the underside of the pedals to achieve this. Pressing the clutch pedal you really feel that heavy plates are being drawn apart.

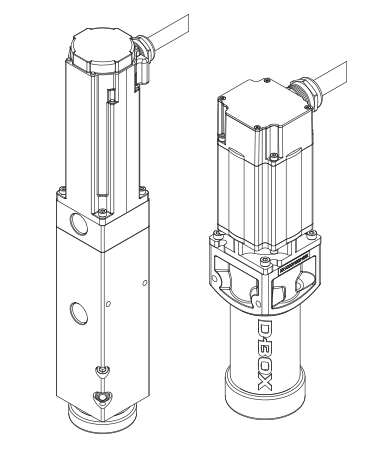

D Box Motion Cueing System Technology

Gaming PCs, audio systems, projectors and high-end monitors, the real aficionados know it, gaming come to a price. And this investment may fall short if motion is not part of it.

Imagine a state-of-the-art motion system seamlessly integrated with a large number of existing titles, making it plug and play, allowing players to start as soon as they connect to their PC.

D-BOX Motion Systems bring back all motion and vibrations from the virtual world to real life allowing you to create a fully immersive gaming experience.

Finding the sweet spot between cheap vibration gimmicks and expensive traditional motion hexapods is the challenge D-BOX solved for you. Affordable and easy to integrate, D-BOX Motion Systems creates true-to-life, immersive motion effects when paired with your favourite title.

Don’t Focus on Simulation – Train Like the Best

Racing simulation systems are constantly being enhanced with more precise technologies such as better graphics, higher resolutions and larger screens, clearer sound with added channels and a larger frequency response scope, and force feedback steering systems. Precise motion and vibration are the next levels of experience that are necessary to maintain a competitive edge. D-BOX Technology is now even better at creating believable simulation experiences, stimulating your kinesthetic sense to mimic a real driving experience. These high-tech actuators will generate physical cues that are critical in car driving simulation.

For over 10 years D-BOX has been working with the entertainment and simulation industries providing motion solutions creating a realistic experience for audiences and bringing them in on the action. Track personality and conditions as well as race car handling are essential in improving a driver’s preparedness. Getting ready for a championship and having the opportunity to virtually rehearse a track in any weather condition is a new key competitive advantage. The total immersive experience in training translates into fractions of second enhancements and improvements that will help drivers to get closer to the pole position.

D-BOX Platform reproduces, in real time, the movements and driving sensations of a vehicle in its environment according to the actions performed. Various movements during acceleration or deceleration or actions such as pitch or roll are all faithfully restored. Vibrations also restore the irregularities of road vibrations and jolts (curb, pothole, speed changes, skid…) and provide more reliability and performance. Therefore simulators powered by D-BOX Motion-Cueing Systems offers the highest fidelity motion systems at the best value.
