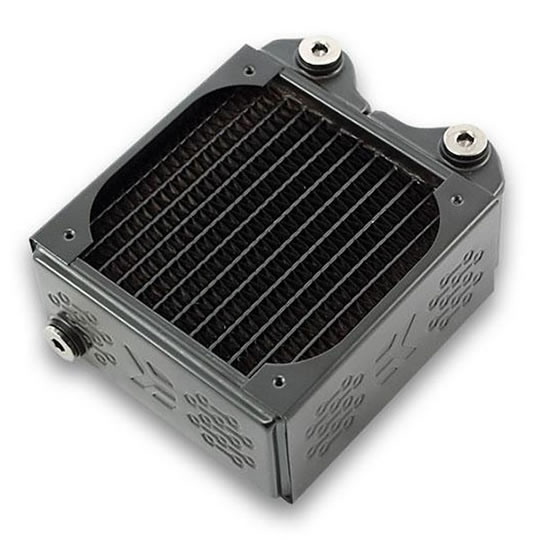

EK-CoolStream RAD XTX 120
End Of Life
EK-CoolStream RAD XTX 120
Scan code: LN42253 Manufacturer code: 3831109860205
End Of Life
  • Thumbnail 1 : EK-CoolStream RAD XTX 120
  • EK-CoolStream RAD XTX 120 : video thumbnail 1
End Of Life

EK-CoolStream RAD XTX 120

EK-CoolStream RAD XTX 120
MORE INFO
MORE INFO

Scan code: LN42253 Manufacturer code: 3831109860205
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview EK ultimate performance radiators are designed for extreme enthusiasts. These radiators are optimized for maximum heat dissipation even at lowest fan speeds. Choosing EK-CoolStream RAD XTX will give your watercooling system an upper hand you need to cool your hot hardware.

EK assured quality level and an optimal price-performance ratio make these EK-CoolStream RAD XTX radiators unique. The new radiators feature, besides their great design and high build quality, superb cooling performance.

The copper fins are optimized for both high- as well as low-speed fans therefore the new XTX radiator is an excellent all-around performer. The parallel flow cooling chambers reduce flow resistance to a minimum. Radiator shrouds are tapped with M3 threads on both sides to enable push-pull fan installation.

Radiator features G1/4 threaded ports on both sides of the radiator which enables various installation possibilites as well as stacking option. Bleed/fill/drain port, soldered to the bottom chamber, allows user a better overall handling and makes item more convenient.
Features Technical details:
Material:
- Copper fins
- 90% copper tube (H90)
- Brass chambers
- Steel housing

Dimensions (LxWxH): 160x130x64mm
Weight: Approx. 780g
FPI: 11
Fan installation: 4 x M3 threads on both sides each (for 1x120mm fan each)
Pressure tested: 1bar

Enclosed:
- 1x EK-CoolStream RAD XTX (120) radiator
- 4 x M3 x 30mm DIN965 screws
- 4 x M3 x 5mm DIN965 screws
- 3 x G1/4 plug with Allen key
