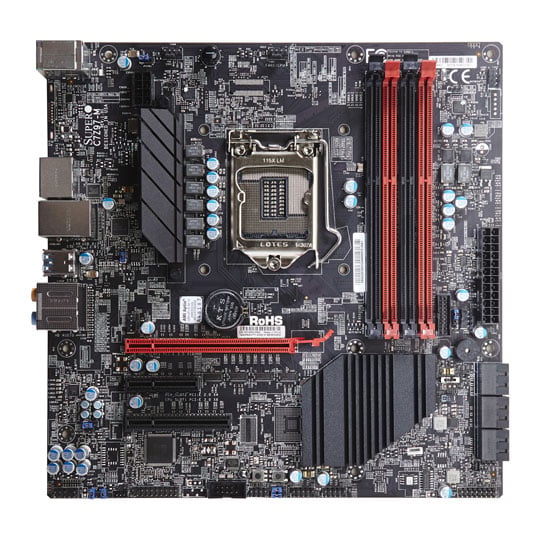

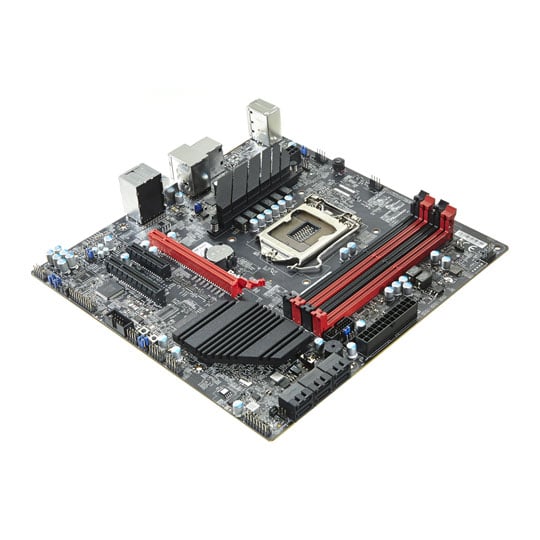

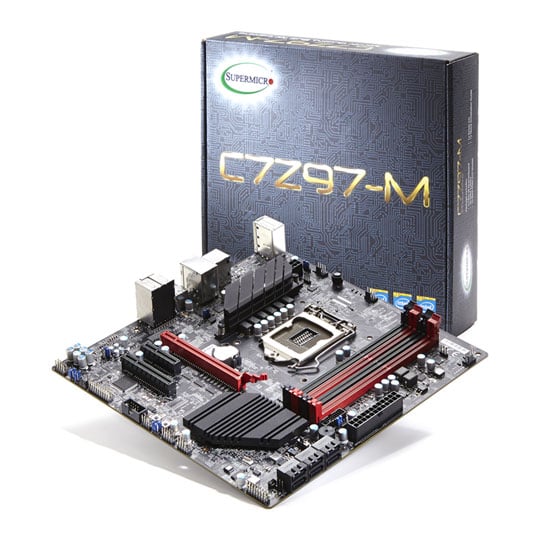

SuperMicro Z97 Intel Micro ATX Overclocking Motherboard
Scan code: LN64742
Manufacturer code: MBD-C7Z97-M-O
End Of Life
Product Overview
Supermicro Z97 Micro ATX Motherboard for 4th and 5th Generation Intel Core i3/i5/i7 Processors.
Boost your performance with unparalleled overclocking
The Supermicro CZ797-M overclocking motherboard will increase performance at maximum efficiency levels with memory reaching overclocking speeds of 3300 MHz, giving you a better computing experience at a fraction of the price!
Reduce CPU usage and heighten gaming experiences
A 6-layer PCB, a digital-PWN CPU power delivery system with ceramic multi-phase bar chokes, and driver-MOSFETs ensure notably reduced CPU overheads, resulting in more power and performance.
High performance, multi-channel high definition audio
Realtex ALC1150 will send your gaming experience into overdrive and bring your senses to life!
High-end graphics card compatibility
Enhanced GPU capabilities for smoother, faster gameplay at maximum settings. Features • Single socket H3 (LGA 1150) supports Intel® 4th gen. Core i7/i5/i3 processors
• Intel® Z97 Express Chipset
• Up to 32GB DDR3 non-ECC UDIMM 3300MHz (OC) in 4 sockets
• Single Gigabit Ethernet LAN port (Intel® i210-AT)
• 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (PCI-E x16 slot & PCI-E x8 slot run at 16/NA or 8/8)

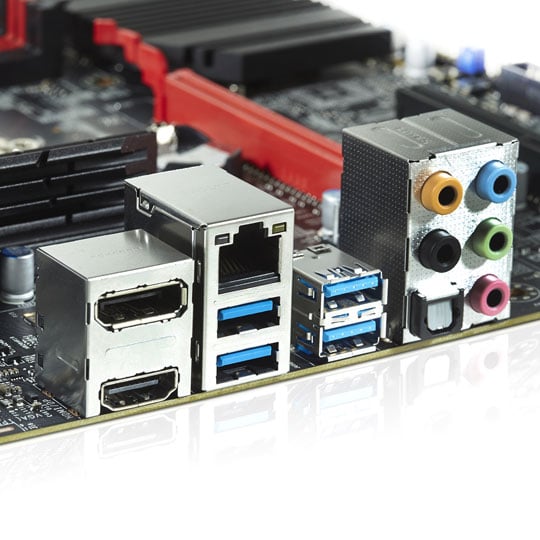

• 12x USB ports total: 6x USB 3.0 (4 rear + 2 via headers), 6x USB 2.0 (2 rear + 4 via headers)
• HD Audio 7.1 channel connector by Realtek ALC1150
• UEFI BIOS support
Boost your performance with unparalleled overclocking
The Supermicro CZ797-M overclocking motherboard will increase performance at maximum efficiency levels with memory reaching overclocking speeds of 3300 MHz, giving you a better computing experience at a fraction of the price!
Reduce CPU usage and heighten gaming experiences
A 6-layer PCB, a digital-PWN CPU power delivery system with ceramic multi-phase bar chokes, and driver-MOSFETs ensure notably reduced CPU overheads, resulting in more power and performance.
High performance, multi-channel high definition audio
Realtex ALC1150 will send your gaming experience into overdrive and bring your senses to life!
High-end graphics card compatibility
Enhanced GPU capabilities for smoother, faster gameplay at maximum settings. Features • Single socket H3 (LGA 1150) supports Intel® 4th gen. Core i7/i5/i3 processors
• Intel® Z97 Express Chipset
• Up to 32GB DDR3 non-ECC UDIMM 3300MHz (OC) in 4 sockets
• Single Gigabit Ethernet LAN port (Intel® i210-AT)
• 6x SATA3 (6Gbps); RAID 0, 1, 5, 10
• 1 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (PCI-E x16 slot & PCI-E x8 slot run at 16/NA or 8/8)
• 12x USB ports total: 6x USB 3.0 (4 rear + 2 via headers), 6x USB 2.0 (2 rear + 4 via headers)
• HD Audio 7.1 channel connector by Realtek ALC1150
• UEFI BIOS support
