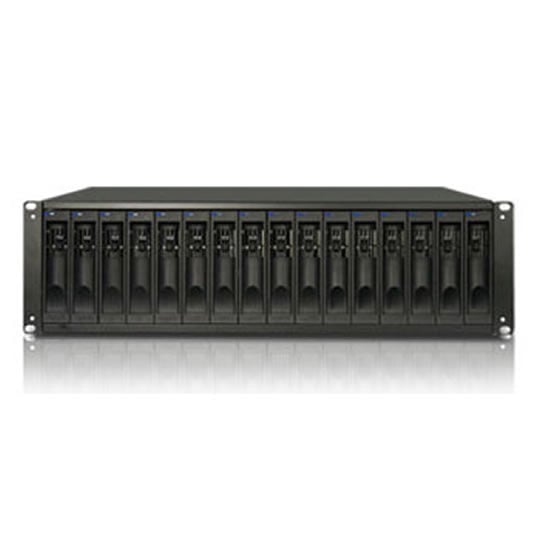

Proavio Ultrastor RS16-IP4 16x SATAII HDD Video RAID Storage Array Scaleable up to 12TB
Scan code: LN35377
Manufacturer code: RS16-IP4
End Of Life
Proavio Ultrastor RS16-IP4 16x SATAII HDD Video RAID Storage Array Scaleable up to 12TB
Scan code:
LN35377
Manufacturer code:
RS16-IP4
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
editRAID RS16 is the new standard in cost-effective high resolution RAID protected media storage. Centered around PROAVIO's award-winning storage solution, PROAVIO has optimized the RS16 line for high resolution video playback & editing. Already in use by leading post facilities, the RS16 system delivers incredible performance combined with robust enterprise-class capabilities.
Powerful Web-based Management Tools
The editRAID RS16 system is the foundation of a solid multi-format post-production infrastructure and workflow. Specifically designed for facilities who demand flawless performance in a 24x7 environment. with "No Single Point of Failure" architecture, this system offers full redundancy on all critical components (Power supplies, fan modules and disk drives). The RS16 system uses an internal dual data bus design which increases reliability and protects the array with no significant loss in performance. editRAID RS16 also allows administrators to monitor any RS16 system through a standard web browser.
High performance Ultra320 SCSI Interface
Featuring two Ultra320 SCSI channels, the RS1616 provides versatility critical to a company's IT infrastructure. RS1616 is powered by a cutting edge 64-bit RAID engine which maximizes disk performance allowing for a broader range of storage possibilities. The editRAID RS1616 features a cutting edge 64-bit storage engine capable of sustaining over 300 MB/sec. editRAID RS1616 is the new solution for users interested in migrating into high resolution formats including 10-bit High Definition capture and playback. A position previously reserved for SCSI and Fibre Channel arrays.
Optimized for High resolution Audio & Video
This unique feature makes the new editRAID RS16 an ideal solution for professional storage applications such as Disk-to-disk backup, database pools, image acquisition, near line storage, data centers, media & asset management libraries and shared SAN networks. Dynamic on-line RAID expansion allows additional capacity to be added without total system downtime, increasing your department's productivity.
Features • 16 disk SATAII video RAID storage array.
• 3U rack-mountable system design.
• World-class RAID processor with powerful management tools.
• User configurable RAID settings with interactive web interface.
• Supports RAID-0 through RAID-6.
• Dual Ultra320 SCSI ports for added versatility.
• Intuitive cross-platform, web browser-based management.
• Supports multi-stream SD, and single stream HD (1920X1080) editing.
Specs
• RAID Controller: Next-generation RAID controller with environment management coprocessor for "true" remote management, configuration & monitoring.
• Controller Cache: 1GB Configuration (per controller when used in HDS configuration)
• RAID Operation: User-configurable RAID levels: 0, 1, 3, 5 and 6, Support for multiple RAID sets & multiple hosts, Automatic data regeneration & Online spare disk support
• Host Interface: Dual channel Ultra320 SCSI (4xHD68-pin SCSI ports)
• Disk Interface: 3Gb SATA disk drives
• Capacity Support: Scaleable up to 24TB (750GBx32 in RAID-0 Configuration) per system
• Performance: Single Sytsem Read: 240MB, Write: 220MB/s per system, Dual System Read: 450MB, Write: 500MB/s per HDS set
• Cooling: Dual hot-swap cooling modules
• Power-supply: Hot-swap 300W load-balanced modules
• Management: Universal web-based UI
• Management Interface: RJ45 Ethernet port for cross-platform web management, RS232 DB-9 terminal port for advanced user configuration
• Event Notification: Email notification & event logging
• OS Support: Windows XP, Win2003, Mac OSX, Linux OS
• Dimensions: (H x W x D) 3.5" x 19" x 19.5"
• Weight: 80 Lbs w/o hard disks
Powerful Web-based Management Tools
The editRAID RS16 system is the foundation of a solid multi-format post-production infrastructure and workflow. Specifically designed for facilities who demand flawless performance in a 24x7 environment. with "No Single Point of Failure" architecture, this system offers full redundancy on all critical components (Power supplies, fan modules and disk drives). The RS16 system uses an internal dual data bus design which increases reliability and protects the array with no significant loss in performance. editRAID RS16 also allows administrators to monitor any RS16 system through a standard web browser.
High performance Ultra320 SCSI Interface
Featuring two Ultra320 SCSI channels, the RS1616 provides versatility critical to a company's IT infrastructure. RS1616 is powered by a cutting edge 64-bit RAID engine which maximizes disk performance allowing for a broader range of storage possibilities. The editRAID RS1616 features a cutting edge 64-bit storage engine capable of sustaining over 300 MB/sec. editRAID RS1616 is the new solution for users interested in migrating into high resolution formats including 10-bit High Definition capture and playback. A position previously reserved for SCSI and Fibre Channel arrays.
Optimized for High resolution Audio & Video
This unique feature makes the new editRAID RS16 an ideal solution for professional storage applications such as Disk-to-disk backup, database pools, image acquisition, near line storage, data centers, media & asset management libraries and shared SAN networks. Dynamic on-line RAID expansion allows additional capacity to be added without total system downtime, increasing your department's productivity.
Features • 16 disk SATAII video RAID storage array.
• 3U rack-mountable system design.
• World-class RAID processor with powerful management tools.
• User configurable RAID settings with interactive web interface.
• Supports RAID-0 through RAID-6.
• Dual Ultra320 SCSI ports for added versatility.
• Intuitive cross-platform, web browser-based management.
• Supports multi-stream SD, and single stream HD (1920X1080) editing.
Specs
• RAID Controller: Next-generation RAID controller with environment management coprocessor for "true" remote management, configuration & monitoring.
• Controller Cache: 1GB Configuration (per controller when used in HDS configuration)
• RAID Operation: User-configurable RAID levels: 0, 1, 3, 5 and 6, Support for multiple RAID sets & multiple hosts, Automatic data regeneration & Online spare disk support
• Host Interface: Dual channel Ultra320 SCSI (4xHD68-pin SCSI ports)
• Disk Interface: 3Gb SATA disk drives
• Capacity Support: Scaleable up to 24TB (750GBx32 in RAID-0 Configuration) per system
• Performance: Single Sytsem Read: 240MB, Write: 220MB/s per system, Dual System Read: 450MB, Write: 500MB/s per HDS set
• Cooling: Dual hot-swap cooling modules
• Power-supply: Hot-swap 300W load-balanced modules
• Management: Universal web-based UI
• Management Interface: RJ45 Ethernet port for cross-platform web management, RS232 DB-9 terminal port for advanced user configuration
• Event Notification: Email notification & event logging
• OS Support: Windows XP, Win2003, Mac OSX, Linux OS
• Dimensions: (H x W x D) 3.5" x 19" x 19.5"
• Weight: 80 Lbs w/o hard disks
