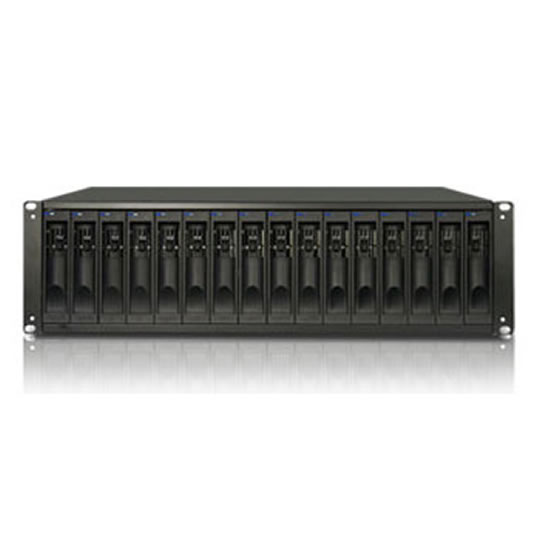

Proavio Ultrastor RS16-FS 16x HDD SAS/SATA-to-4Gb Fibre Video Array With Integrated Expansion Bus
Scan code: LN35378
Manufacturer code: RS16-FS
End Of Life
Proavio Ultrastor RS16-FS 16x HDD SAS/SATA-to-4Gb Fibre Video Array With Integrated Expansion Bus
Scan code:
LN35378
Manufacturer code:
RS16-FS
This product is no longer available to purchase.
Email me when the availability or price changes
Product Overview
Proavio introduces a new line of 4Gb Fibre Channel storage designed to accommodate the needs of growing digital cinema storage requirements. Building on popularity of it's award-winning SCSI RAID controller technology, Proavio has developed a next generation RAID controller that raises the industry bar for maximum performance and features. By leveraging over 10 years of development experience and utilizing the maximum capabilities of the RAID engine, Proavio has created the first large-format Fibre Channel array that exploits the full potential of a typical 4Gb Fibre equipped desktop computers.
High-performance Storage Solution for HD Post
RS16FS is a rack-ready 3U, sixteen-disk, 4Gb Fibre to SATA disk array with a next generation RAID processor that sets new standards in performance and reliability. A dual SFP design allows full use of native Multi-Path capabilities in Mac OS X and can deliver an excess of 600MB/s when configured in RAID-5 protection. Industry standard SFP Fibre ports support active optical configurations for direct-attached or network deployments. An easy to use browser-based interface allows complete storage control and monitoring from any workstation on the network. Standard features include modular, hot-swap PSU, cooling and disks.
Industry-proven Real-time HD Performance
With the addition of native MPIO support, users can easily achieve sustained data rates in excess of 600MB/s with RAID-5 parity protection - ideal for uncompressed 4:4:4 HD video, digital intermediate and high resolution visual effects creation. Proavio has included every feature found in their Enterprise-class products including fully redundant hot-swap PSUs, cross-platform web-based management, hot-swappable cooling modules & disks and a modularized RAID controller that allows for easy replacement in the field.
Designed for the Studio, not for the Office
With a high-speed optical Fibre interface, RS16FS accommodates direct-attached applications for performance as well as SAN attached network configurations for consolidated storage configurations or real-time volume sharing networks. Native MPIO operation allows users to maximize throughput exceeding 600MB/s, ideal for all levels of the post production process. RS16FS compliments any existing SAN platform including Tiger Technology MetaSAN, Xsan, FibreJet and StorNext.
Open Hardware Design for Maximum Compatibility
Proavio's leading-edge SAS/SATA technology guarantees the industry's most comprehensive support for 3rd party host bus adapters and Fibre equipped editing systems including ATTO Technologies, Apple, LSI Logic and Qlogic.
Features • Rack-optimized design for easy studio integration.
• SAN-ready 4 GB optical interface ports with native MPIO load-balance support.
• Redundant PSUs and cooling for 24/7 operation.
• Supports a wide variety of RAID configuration options including RAID-6.
• Open hardware design supports all popular host bus adapters.
• Supports 8-bit, 10-bit and 2K media resolutions.
Specifications
• Array Type: 16-disk SAS/SATA-to-Fibre Video RAID
• Max Storage Capacity: 16.0TB (RAID-0), 14.7TB (RAID-5)
• RAID/Controller: Removable RAID Controller Module, RAID Levels: 0, 1, 0+1, 5 and 6
• Host Interface: 4Gb Fibre Channel
• Host Connection: Two 4Gb SFP Ports (LC)
• Disk Interface: 3.5" SAS or SATA, 7200RPM to 10,000RPM
• Expansion Interface: SFF8470 Expansion Port (Up to 80 disks), Designed for Use with RS16JS Expansion JBOD
• System Management: Cross-platform Web GUI (RJ45), RS232 Console Port (DB-9), Rear-panel LCD Configuration Panel
• Cooling: Two Hot-swap Cooling Modules
• Power: Two Load-balanced 460W PSU Modules
• OS Support: Mac OS X (10.4, 10.5), Windows XP/Vista, Windows 2003
• Weight: 22.67kg
• Dimensions: 495.3 x 482.6 x 133.4 mm
