U87 Ai Large diaphragm microphone Neumann
Scan code: LN41183
Manufacturer code: 007022
End Of Life
Product Overview
The U 87 is probably the best known and most widely used Neumann studio microphone.
It is equipped with a large dual-diaphragm capsule with three directional patterns:
omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille.
A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion.
Furthermore, the low frequency response can be reduced to compensate for proximity effect.
The U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a unique frequency and transient response characteristic.
Users recognize the microphone immediately by its distinctive design. It is a good choice for most general purpose applications in studios, for broadcasting, film and television.
The U 87 Ai is used as a main microphone for orchestra recordings, as a spot mic for single instruments, and extensively as a vocal microphone for all types of music and speech.
The letter A in the name indicates a more recent generation, as compared to the U 87 i microphones that were built from 1967 to 1986. Modifications apply to the electronic components of the microphone only; the capsule remained unchanged.
The present-day circuitry increases the operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance. The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.
Shockmount not included

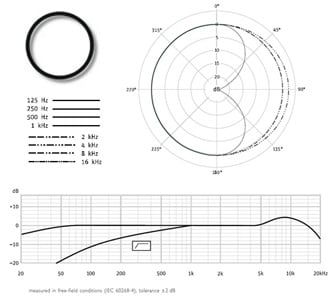

Frequency Response / Polar pattern
Data Sheet
Manual
Features • Variable large diaphragm microphone
• Pressure-gradient transducer with double membrane capsule
• The studio microphone classic
• Three directional characteristics: omni, cardioid, figure-8
• Switchable low frequency roll-off
• Switchable 10 dB pre-attenuation
• Ideal as main and as support microphone in the most differing recording situations
It is equipped with a large dual-diaphragm capsule with three directional patterns:
omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille.
A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion.
Furthermore, the low frequency response can be reduced to compensate for proximity effect.
The U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a unique frequency and transient response characteristic.
Users recognize the microphone immediately by its distinctive design. It is a good choice for most general purpose applications in studios, for broadcasting, film and television.
The U 87 Ai is used as a main microphone for orchestra recordings, as a spot mic for single instruments, and extensively as a vocal microphone for all types of music and speech.
The letter A in the name indicates a more recent generation, as compared to the U 87 i microphones that were built from 1967 to 1986. Modifications apply to the electronic components of the microphone only; the capsule remained unchanged.
The present-day circuitry increases the operational headroom of the U 87 Ai by supplying the bias voltages for the capsule through a reduced resistance. The result is a higher sensitivity of 10 dB for identical sound pressure levels, and an improved S/N ratio of 3 dB.
Shockmount not included
Frequency Response / Polar pattern
Data Sheet
Manual Features • Variable large diaphragm microphone
• Pressure-gradient transducer with double membrane capsule
• The studio microphone classic
• Three directional characteristics: omni, cardioid, figure-8
• Switchable low frequency roll-off
• Switchable 10 dB pre-attenuation
• Ideal as main and as support microphone in the most differing recording situations
