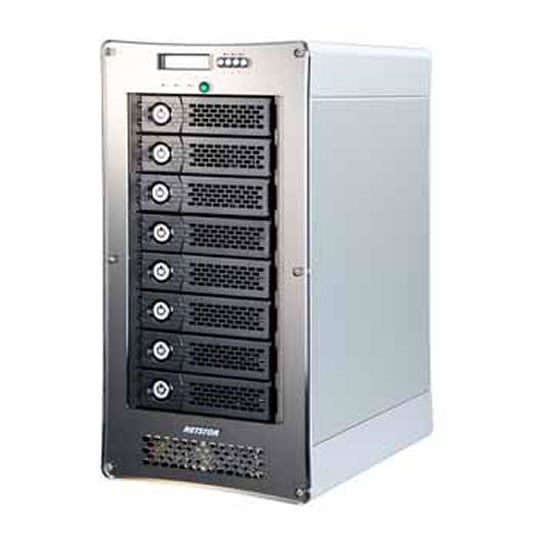

NetStor NS765S 8 Bay SAS Expander Enclosure 300W

Product Overview Netstor’s new NS765S, desktop 8 bay JBOD enclosure, features latest 6Gb/s SAS Expander Technology providing simply single high bandwidth and high reliable miniSAS cable connectivity to a host 6Gb/s SAS RAID Controller for configuration eight (8) SAS/SATA 6Gbps/3Gbps HDDs, and two more miniSAS ports for additional up to 10 units of NS765S scalable. The high speed transfer rates and added as data growth are particularly ideal for video editing and digital content producers.

Advanced Storage Management
The NS765S is integrated a front LCM control panel for complete storage management of easy system setup, alarm mute and configuration. Moreover, the enclosure provides eight (8) removable drive trays and each tray built-in power, activity and failure LED indicators for displaying the status of each single Hard Disk. The most important is all management features will be available for all cascaded NS765S enclosures through SES2 from only one external port of host SAS controller card connection. Features • Stylish aluminum housing, anodized surface, benefits for cooling and durability
• Advanced backplane design for Eight(8) 3.5" SAS or SATA drives
• Built-in 6Gb SAS Expander for single high bandwidth miniSAS(SFF8088) in-port of host connectivity
• Two miniSAS out ports for connecting additional SAS Expander enclosures in a daisy chain
• Up to eight (8) high quality hotswap trays with individual key lock
• Front LCM control panel for easy setup, alarm mute and configuration
• LED indicators for HDD power, activity and failure on each removable tray
• Two quiet 80mm how-swap cooling fans for use in noise-sensitive environments
