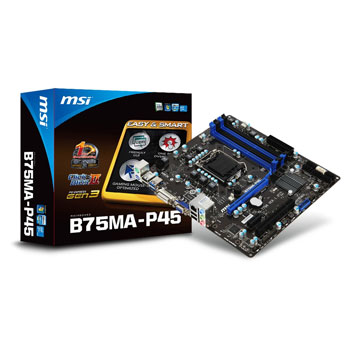

MSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU Ready
End of Life

MSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU Ready

MSI B75MA-P45, Intel B75, S 1155 Ivy Bridge, SATA 6Gb/s, USB3.0, PCIx16, Gen3.0, DVI-D, VGA

Scan Code: LN44836

Manufacturer Code: B75MA-P45

Customer Reviews and Q&A

Social Media

MSI B75MA-P45, Intel B75, S 1155 Ivy Bridge, SATA 6Gb/s, USB3.0, PCIx16, Gen3.0, DVI-D, VGA

MSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU ReadyMSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU ReadyMSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU ReadyMSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU Ready
MSI B75MA-P45 Intel B75 Motherboard Micro-ATX Ivybridge CPU Ready

Product Overview

World's 1st PCI Express Gen 3 mainboard brand
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.

Benefits:
• 2X bandwidth
• Increased efficiency and compatibility
• Extreme performance for current and next gen PCI Express cards

Features

• OC Genie II: Auto OC to boost performance in 1 sec
• ClickBIOS II: Easy-to-use UEFI BIOS interface
• Support USB 3.0 & SATA 6Gb/s

Technical Specification

Manufacturer:MSIGraphics Connectors:D-Sub (VGA)
DVI-D
Form Factor:Micro ATX Graphics Interface:PCIe 3.0 (x16)
CPU Socket:1155 SLI Support:
QPI Speed:N/ACrossfire Support:
Chipset:Intel B75 Water Cooled:No
Memory Type:DDR3 SATA:SATA III 6Gb/s
Memory Channel:Dual RAID:None
Memory Type (ECC):Non-ECC Expansion Slots:1 x PCI (32 bit)
1 x PCIe 2.0 x1
1 x PCIe 3.0 x16
Memory Type (R/U):Unbuffered Internal I/O:1 x 24pin (V)
1 x 4pin (V)
1 x Chassis Intrusion connector
1 x FP Audio Header
1 x Parallel Header
5 x SATA II - 3Gb/s
1 x SATA III - 6Gb/s
1 x Serial (COM) Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.0 Header
Memory Speed (Mhz):DDR3 - 1066
DDR3 - 1333
DDR3 - 1600
DDR3 - 1800(OC)
DDR3 - 2000(OC)
DDR3 - 2200(OC)
DDR3 - 2400(OC)
Back Panel:1 x 10/100/1000 (LAN)
1 x D-Sub
1 x DVI-D
1 x Line In
1 x Line Out
1 x Mic In
1 x PS/2 Keyboard/Mouse Combo
4 x USB 2.0
2 x USB 3.0
Memory Capacity:32GB

Warranty

For further information regarding Scan's warranty procedure please click here

Details

Duration: 12 months

Type: Return to base

RTB Period: 12 months

Manufacturer Contact Details

Manufacturer: SCAN/MSI

Telephone: 0871 472 4747
