8x SAS/SATA3 ports via 2x SFF-8087 connectors via Low Profile PCI Express 2.0 x8 host Adaptor
Scan code: LN40091
Manufacturer code: PE-118i
End Of Life
8x SAS/SATA3 ports via 2x SFF-8087 connectors via Low Profile PCI Express 2.0 x8 host Adaptor
Lycom PE-118i 2x SFF-8087 Internal Port with 8xHDD SATA/SAS III (6Gbps) Support PCIe 8x Interface
Scan code:
LN40091
Manufacturer code:
PE-118i
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
PE-118i: 6G; SATA/SAS; 8 Ports; PCIe 2.0; 8 lane Host Adapter.
Eight internal SAS/SATA ports with two SFF-8087 connectors in Low Profile PCI Express 2.0 x 8 host adapter. Features • 40 Gbps transfer rate PCIe 2.0 8x interface card.
• Eight internal SATA/SAS ports by two SFF-8087 connectors.
• Compliant with PCI Express Specification, Revision 2.0.
• Low Profile PCIe Form Factor.
• Supports main board PCI Express 2.0 x8 and x16 host slot.
• Serial Attached SCSI – 2.0 (SAS-2.0) specification compliant.
• Serial ATA Revision 3.0 (6 Gbps) specification compliant.
• Supports auto-detection of SAS or native SATA device.
• Supports PCIe Power Management: D0, D1, D3_cold, D3_hot.
• Supports 6 Gbps, 3 Gbps & 1.5 Gbps SAS or SATA devices.
• Supports SAS Multiplexing.
• Supports SSC with independent control of each PHY.
• Supports wide SAS ports.
• Supports SAS Protocol (SSP), initiator and target mode.
• Supports SAS Management Protocol (SMP), initiator mode.
• Supports SATA Tunneling Protocol (STP), initiator mode including:
• Hot-plug capability.
• Efficiently cooling by Active Heat Sink with Blast Fan.
• Completely with drivers for 64bit / 32bit Windows 7, Vista, XP, 2003 and 2008.
• Fully RoHS compliant.
Eight internal SAS/SATA ports with two SFF-8087 connectors in Low Profile PCI Express 2.0 x 8 host adapter. Features • 40 Gbps transfer rate PCIe 2.0 8x interface card.
• Eight internal SATA/SAS ports by two SFF-8087 connectors.
• Compliant with PCI Express Specification, Revision 2.0.
• Low Profile PCIe Form Factor.
• Supports main board PCI Express 2.0 x8 and x16 host slot.
• Serial Attached SCSI – 2.0 (SAS-2.0) specification compliant.
• Serial ATA Revision 3.0 (6 Gbps) specification compliant.
• Supports auto-detection of SAS or native SATA device.
• Supports PCIe Power Management: D0, D1, D3_cold, D3_hot.
• Supports 6 Gbps, 3 Gbps & 1.5 Gbps SAS or SATA devices.
• Supports SAS Multiplexing.
• Supports SSC with independent control of each PHY.
• Supports wide SAS ports.
• Supports SAS Protocol (SSP), initiator and target mode.
• Supports SAS Management Protocol (SMP), initiator mode.
• Supports SATA Tunneling Protocol (STP), initiator mode including:
• Non-zero offset and non-sequential data delivery.• Supports Host mode and Device mode of operation.
• ATA and ATAPI commands.
• Native Commands Queuing (NCQ).
• Hot-plug capability.
• Efficiently cooling by Active Heat Sink with Blast Fan.
• Completely with drivers for 64bit / 32bit Windows 7, Vista, XP, 2003 and 2008.
• Fully RoHS compliant.

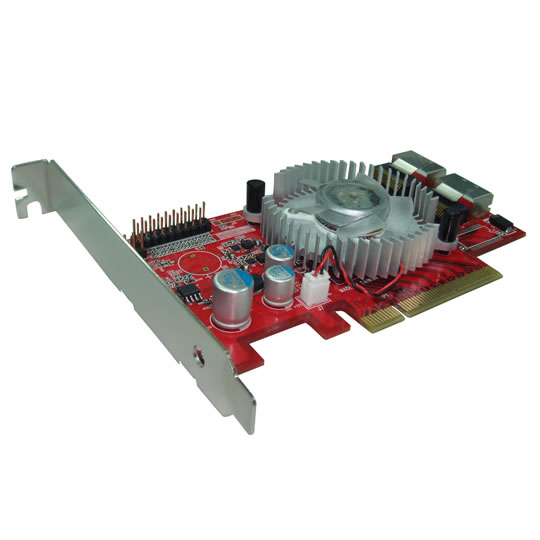

8x SAS/SATA3 ports via 2x SFF-8087 connectors via Low Profile PCI Express 2.0 x8 host Adaptor
